Home >> Lexus >> 2008 >> IS F V8-5.0L (2UR-GSE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Locations

Instrument Panel, Gauges and Warning Indicators: Locations

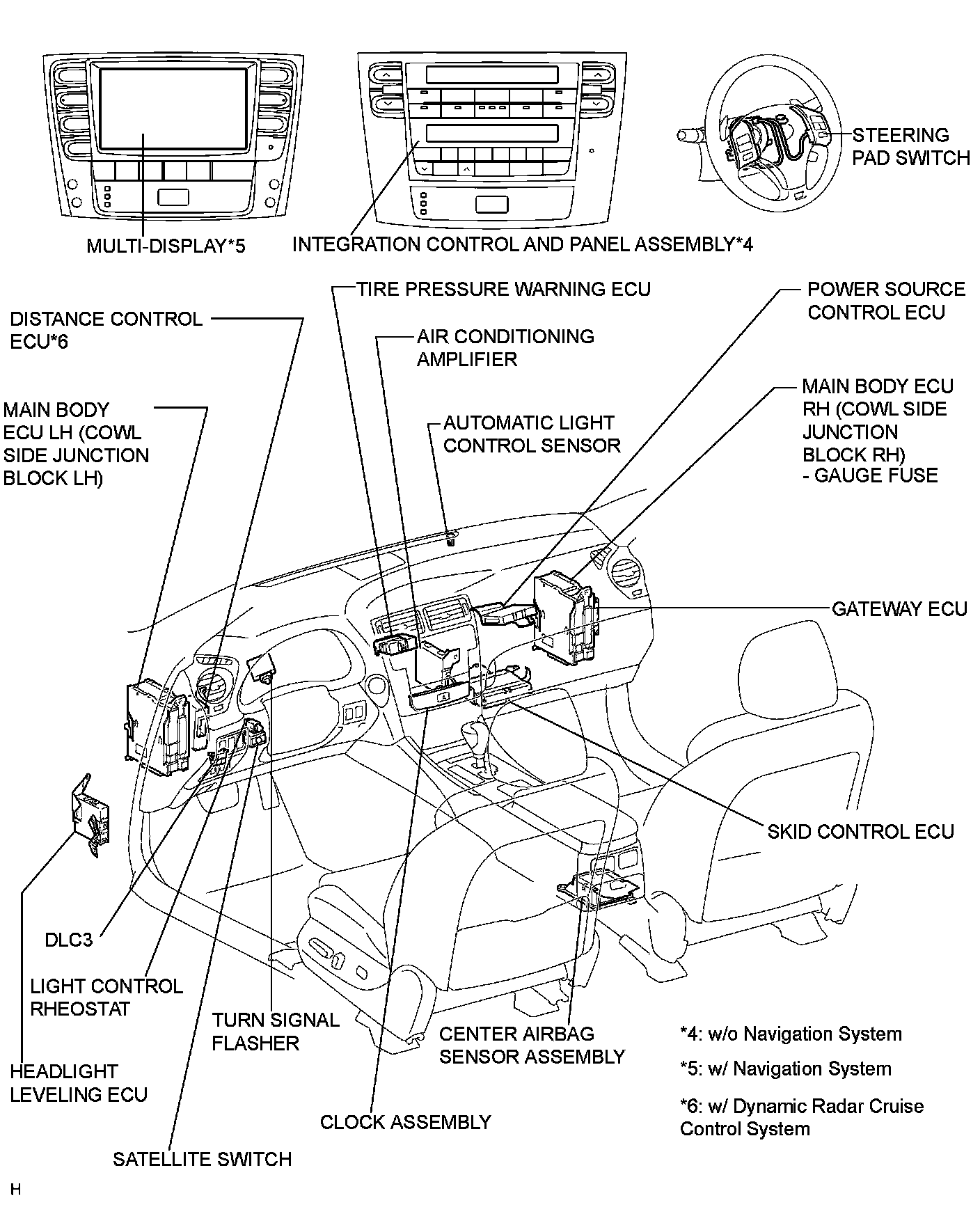

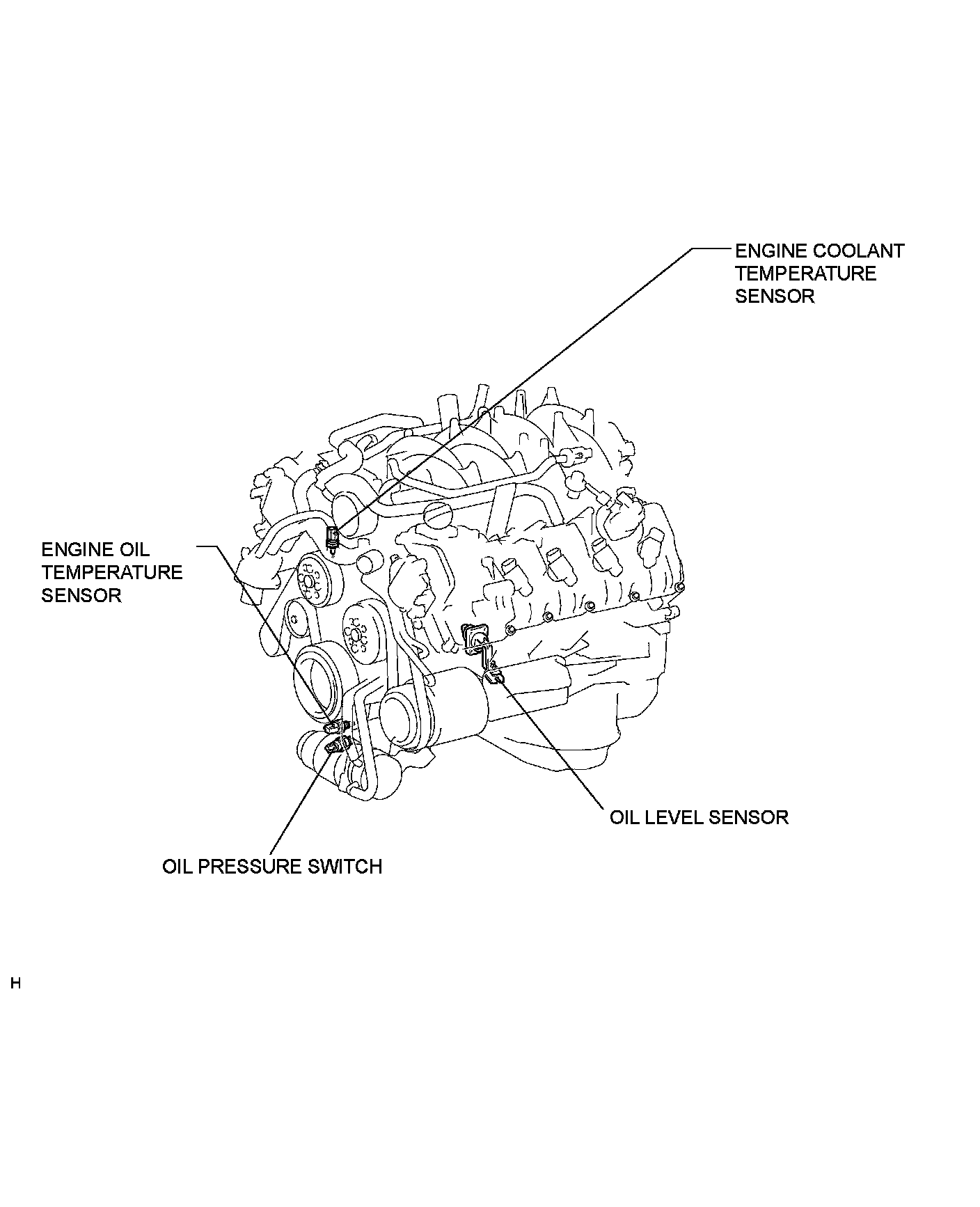

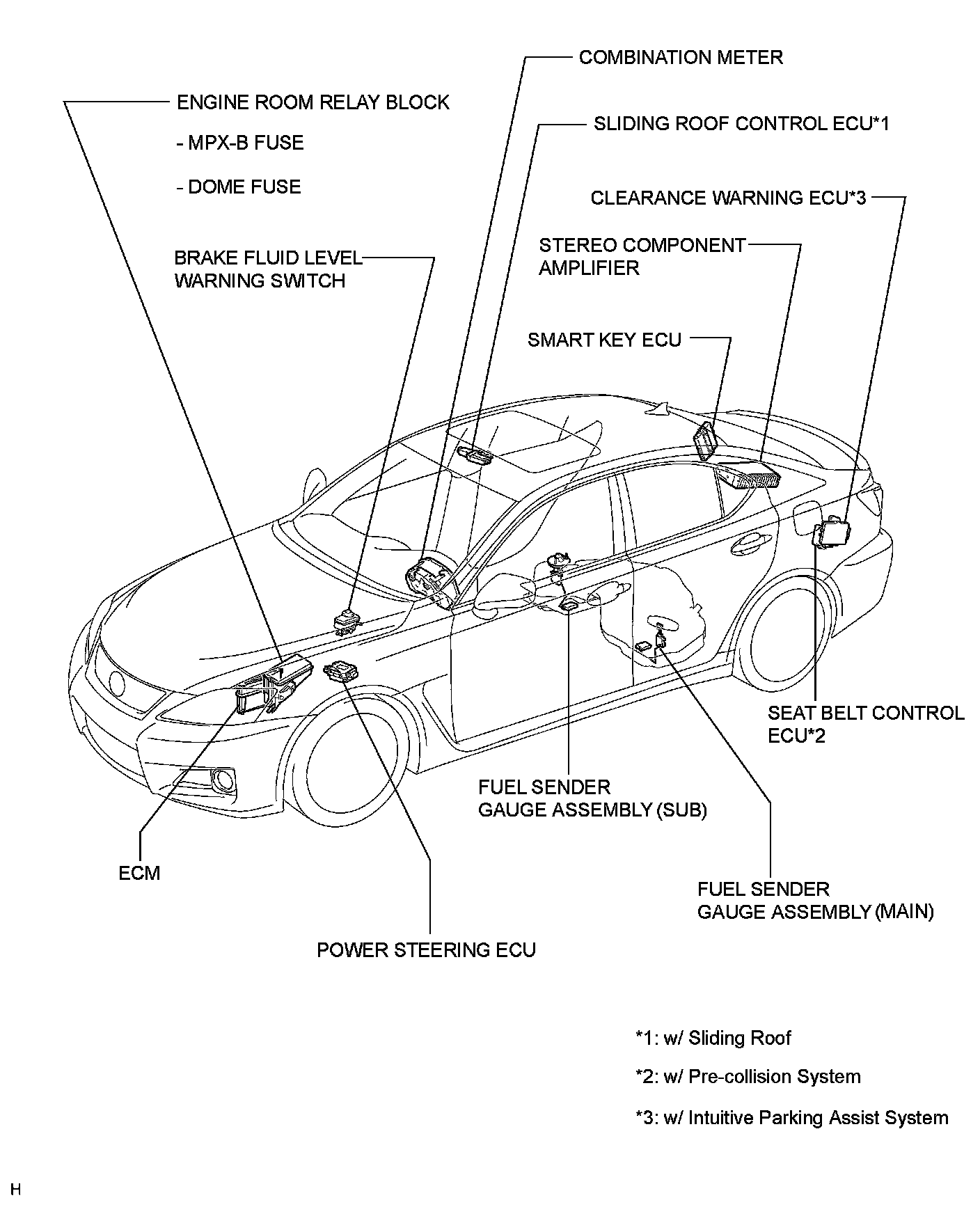

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: PARTS LOCATION

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: PARTS LOCATION

ILLUSTRATION
