SEAT BELT: FRONT PASSENGER SEAT BELT WARNING LIGHT: INSPECTION

SEAT BELT: FRONT PASSENGER SEAT BELT WARNING LIGHT: INSPECTION

1. INSPECT CLOCK ASSEMBLY (w/ Navigation System)

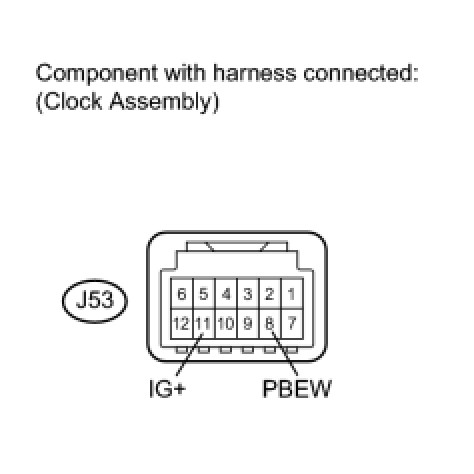

(a) Remove the clock assembly with the connector still connected Removal.
(b) Apply battery voltage from the wire harness back side between the terminals of the indicator, and check the lighting condition of the front passenger side seat belt warning light.

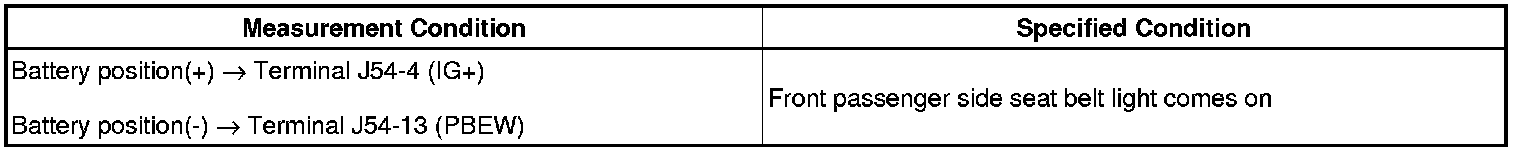

Standard:






2. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Navigation System)

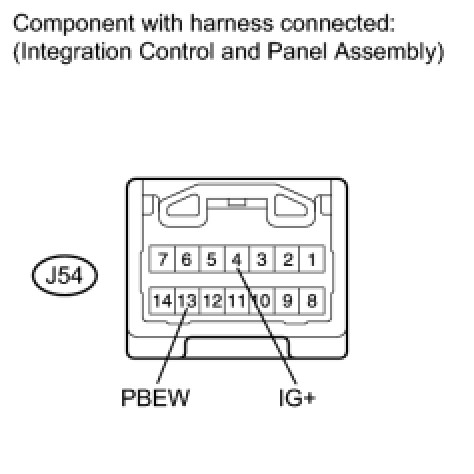

(a) Remove the integration control and panel assembly with the connector still connected Removal.
(b) Apply battery voltage from the wire harness back side between the terminals of the indicator, and check the lighting condition of the front passenger side seat belt warning light.
Standard:
