Fog/Driving Lamp: Testing and Inspection

LIGHTING (EXT): LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE

LIGHTING

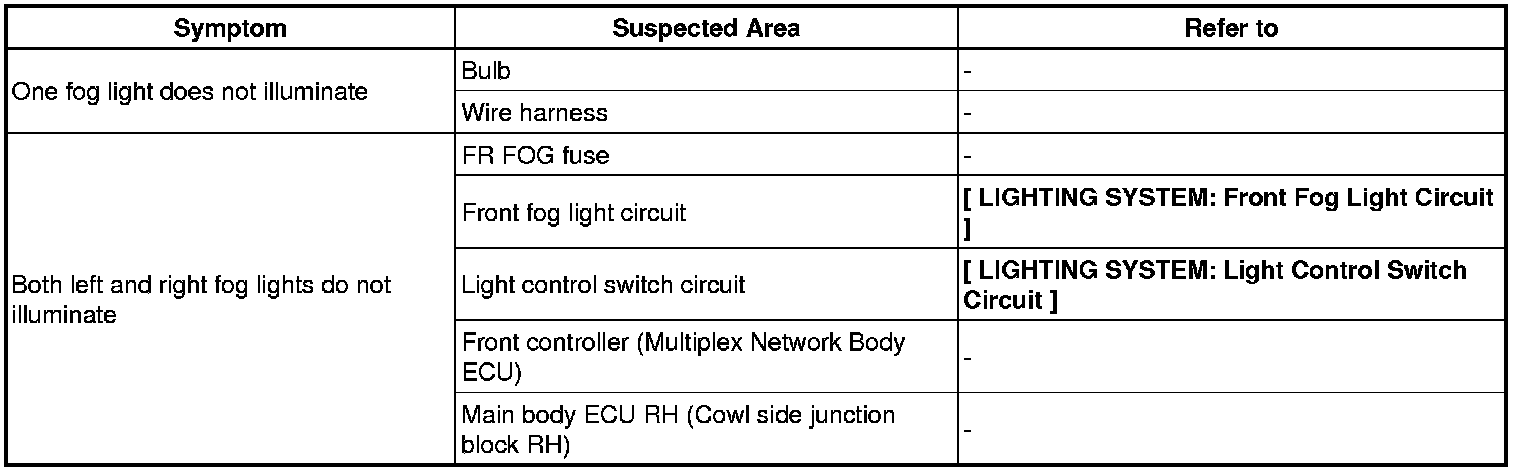

HINT: Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.


Front Fog Light System






HINT:
- *1: When the AFS indicator light does not come on or blink despite the symptom being occurring, check the battery voltage.
- *2: Check if the headlight swivel motor turns smoothly by hand. If the motor does not turn, replace it with a new one. If the motor still does not turn, replace the headlight assembly with a new one.
- *3: Before beginning diagnosis, check that the AFS setting is ON.
