Emission Control Systems: Description and Operation

2UR-GSE EMISSION CONTROL: EMISSION CONTROL SYSTEM:

2UR-GSE EMISSION CONTROL: EMISSION CONTROL SYSTEM:

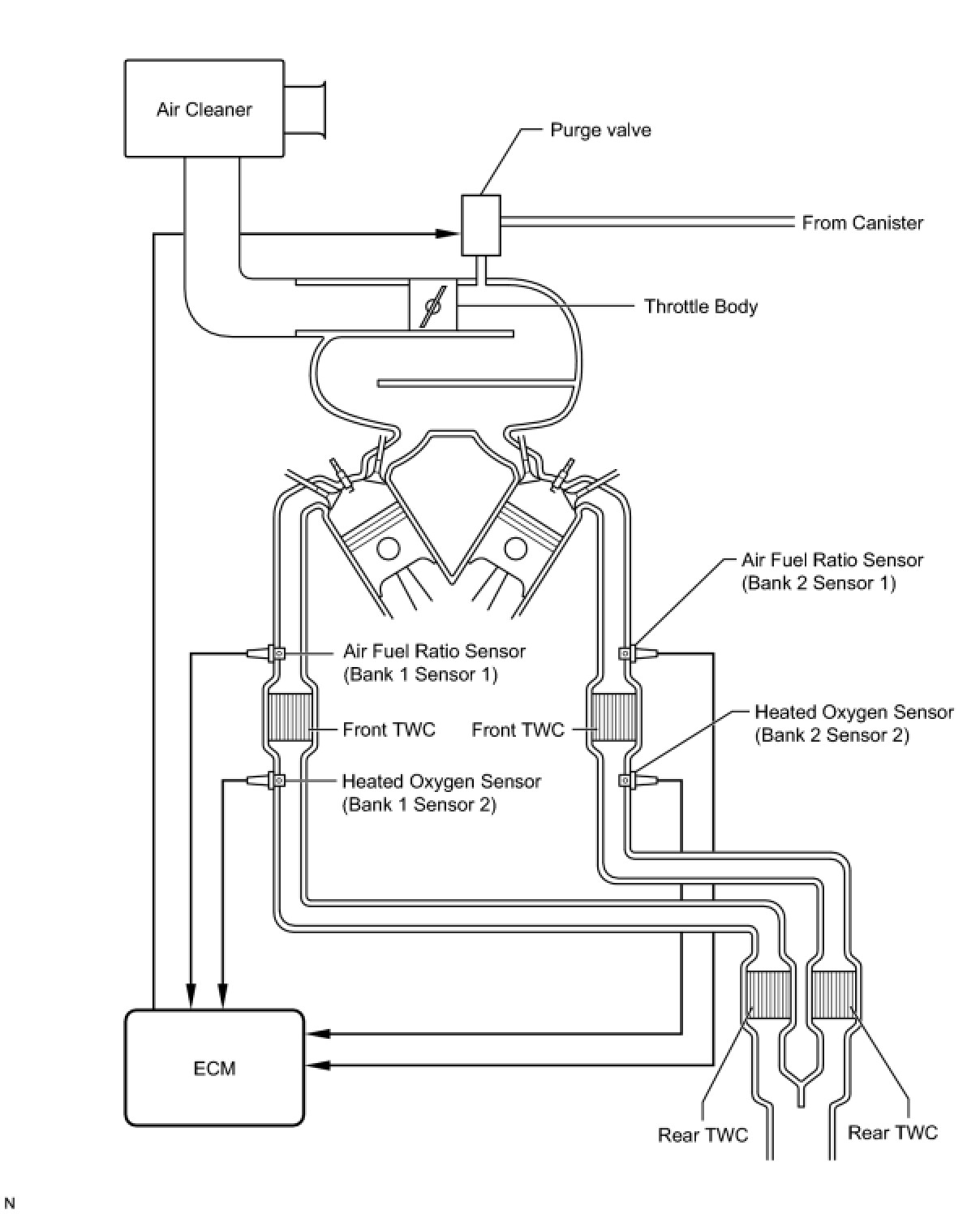

1. EMISSION CONTROL SYSTEM DIAGRAM

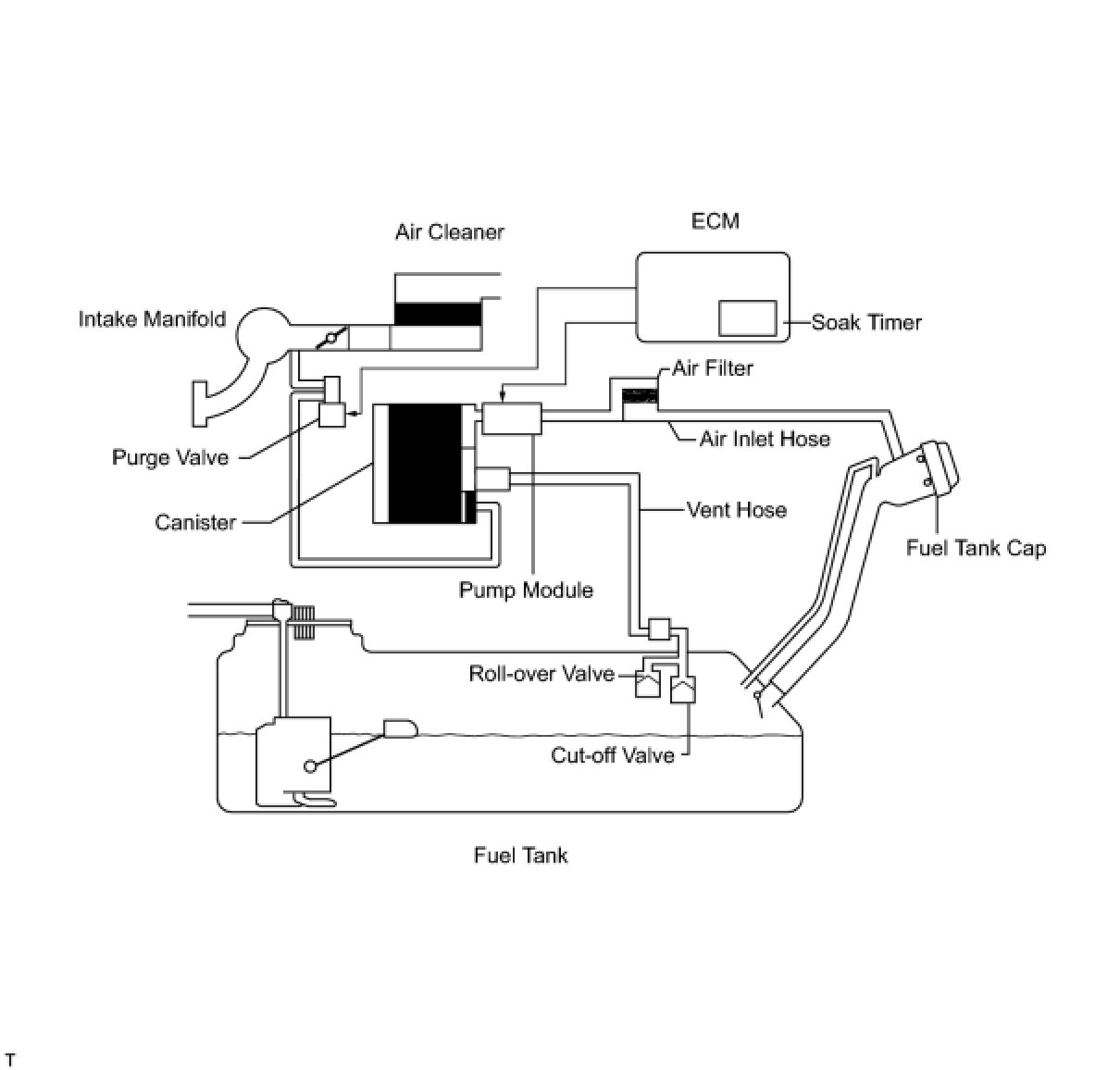

2. EVAP CONTROL SYSTEM DIAGRAM
