Ignition System: Locations

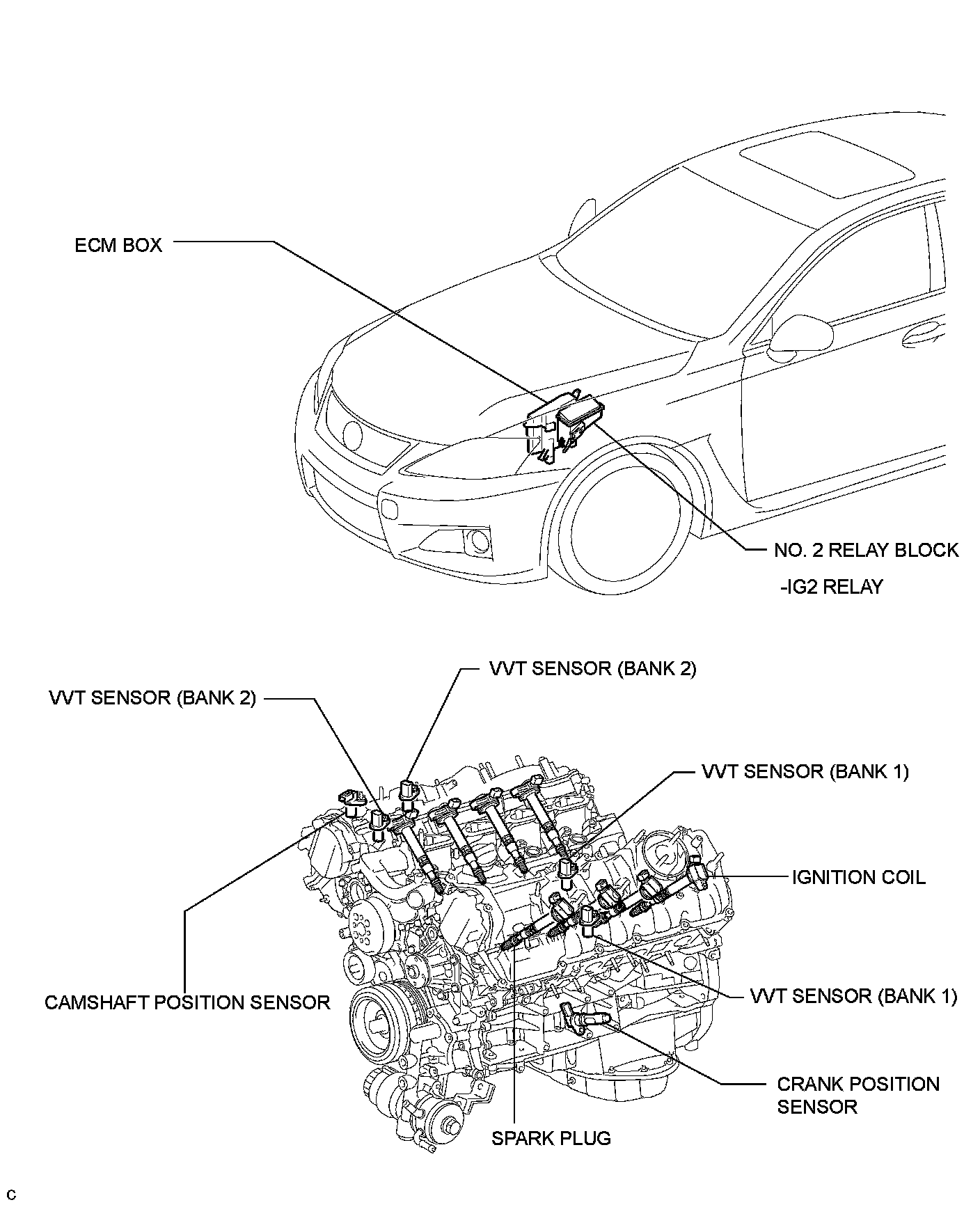

2UR-GSE ENGINE CONTROL: IGNITION SYSTEM: PARTS LOCATION

2UR-GSE ENGINE CONTROL: IGNITION SYSTEM: PARTS LOCATION

ILLUSTRATION

SFI System:
