Powertrain Management: Locations









2UR-GSE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION

2UR-GSE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION

ILLUSTRATION

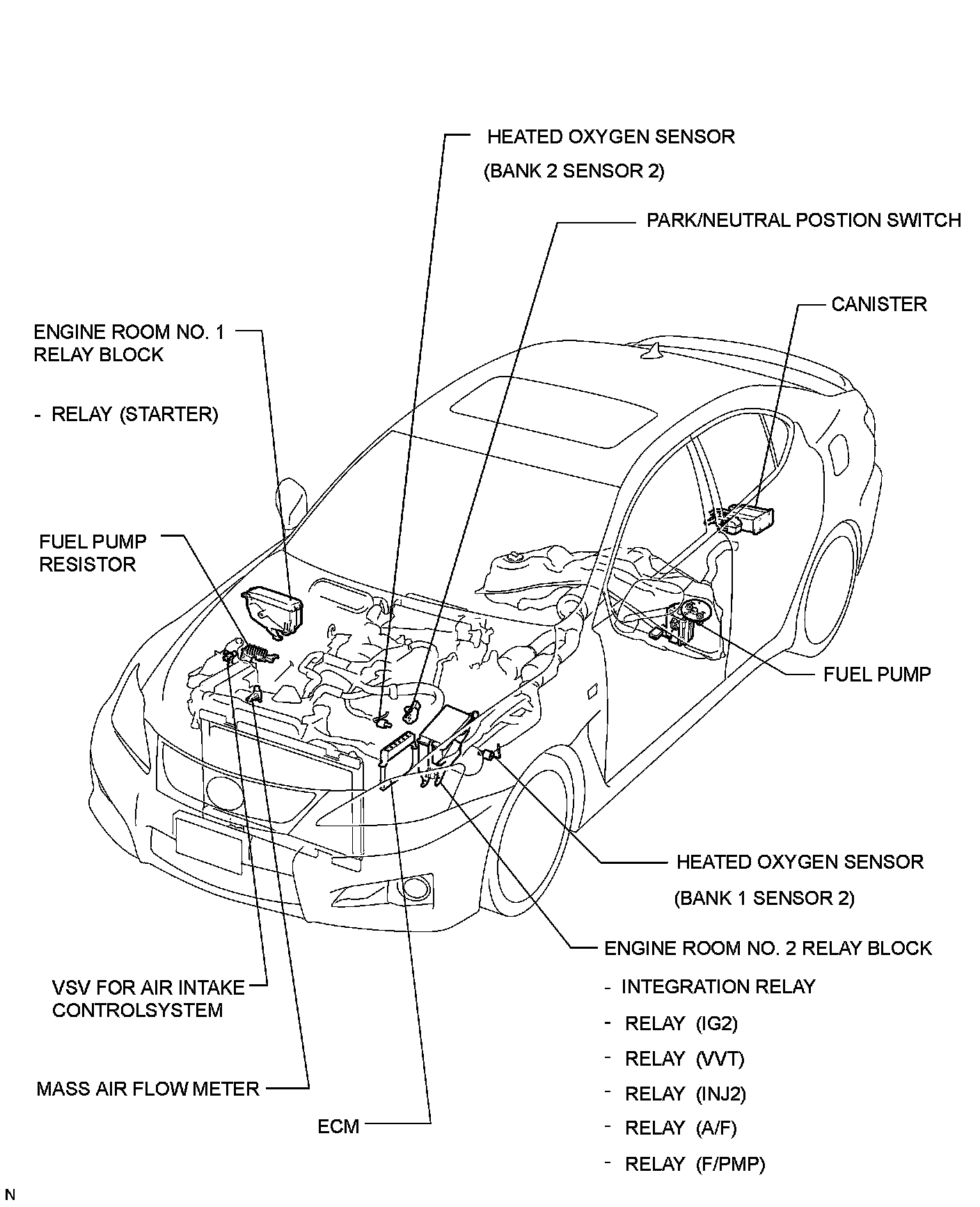

Engine: SFI System:

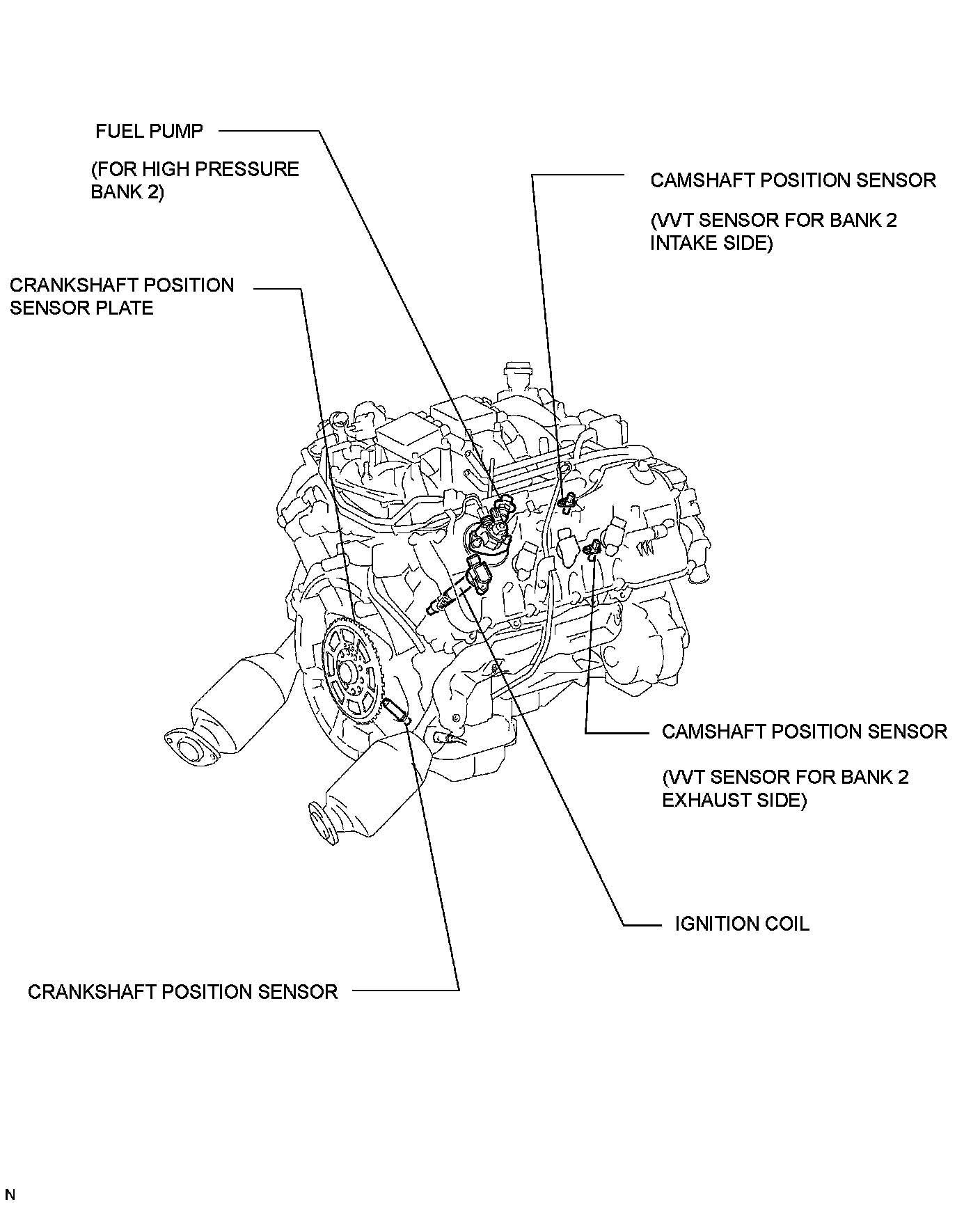

SFI System:

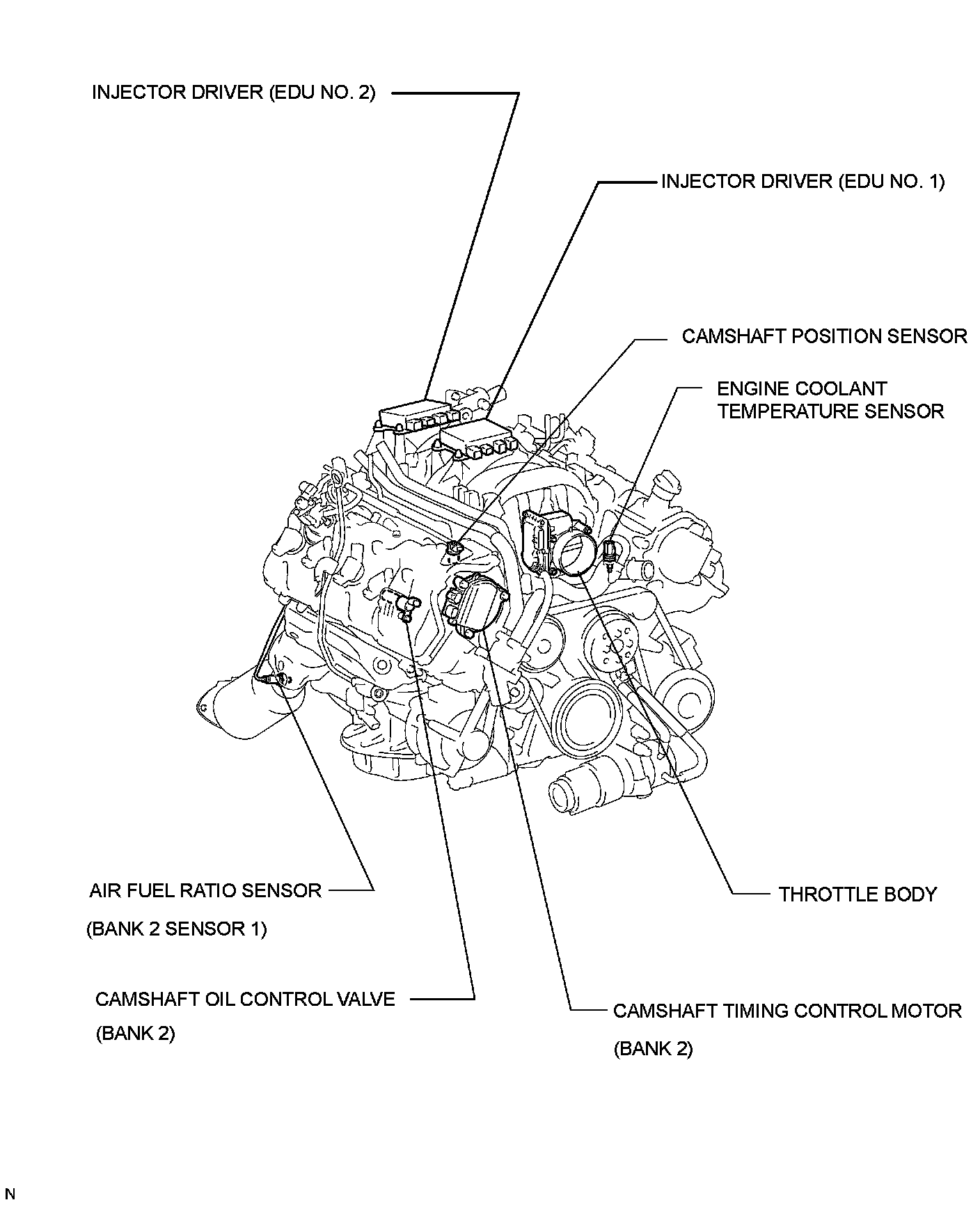

SFI System:

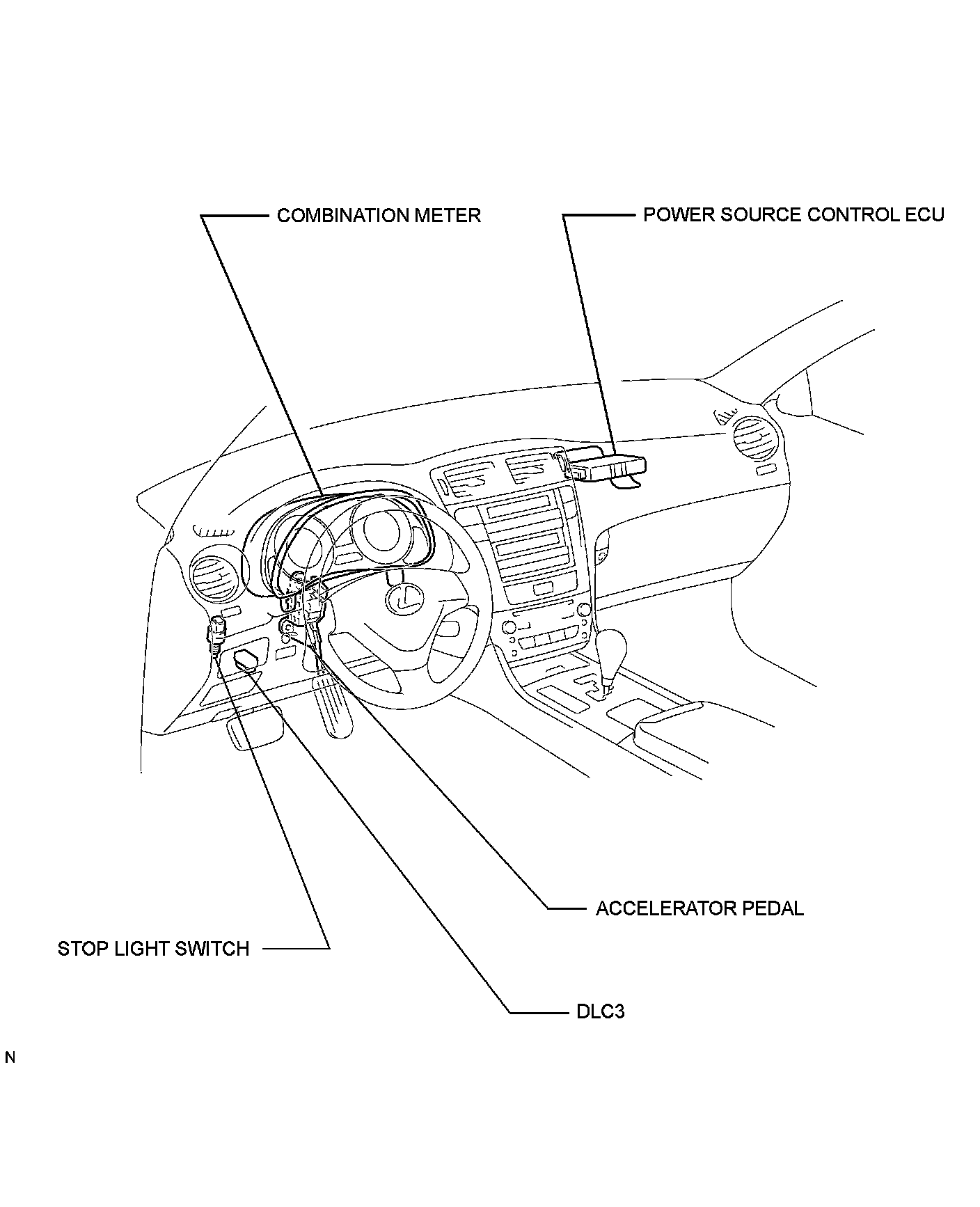

SFI System:






SFI SYSTEM: PARTS LOCATION:






SFI System:
