Pinout Values and Diagnostic Parameters
SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: TERMINALS OF ECU
SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: TERMINALS OF ECU

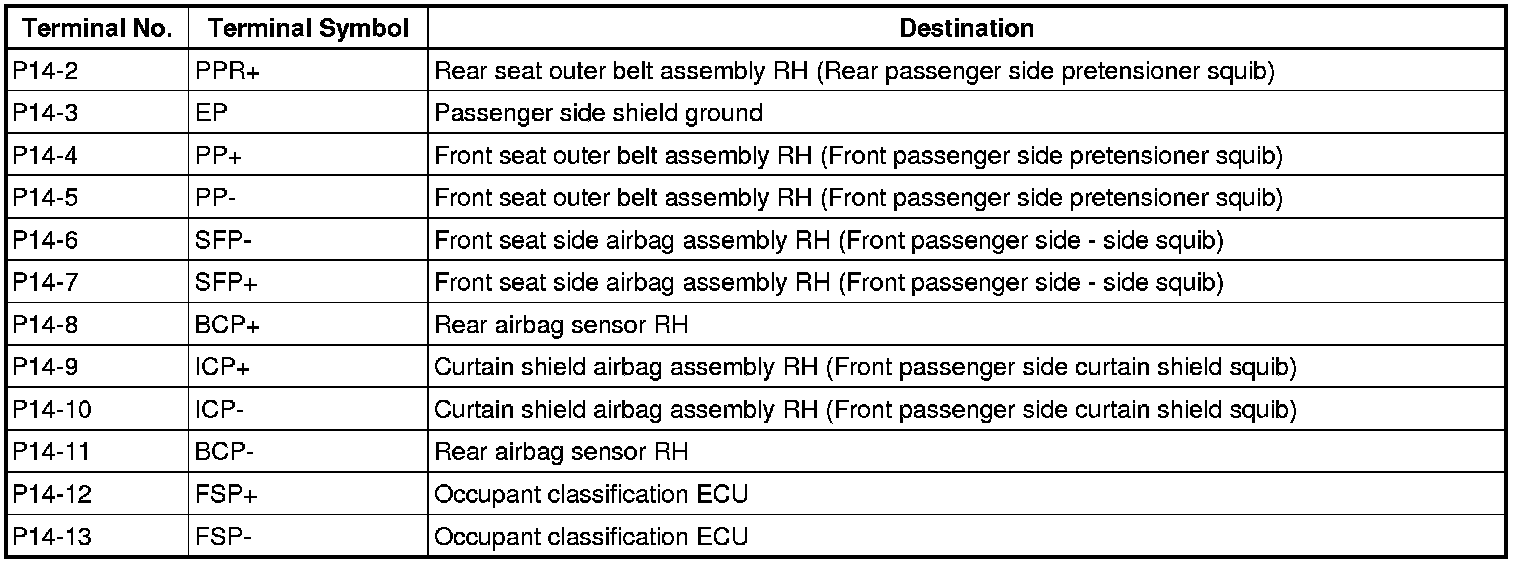

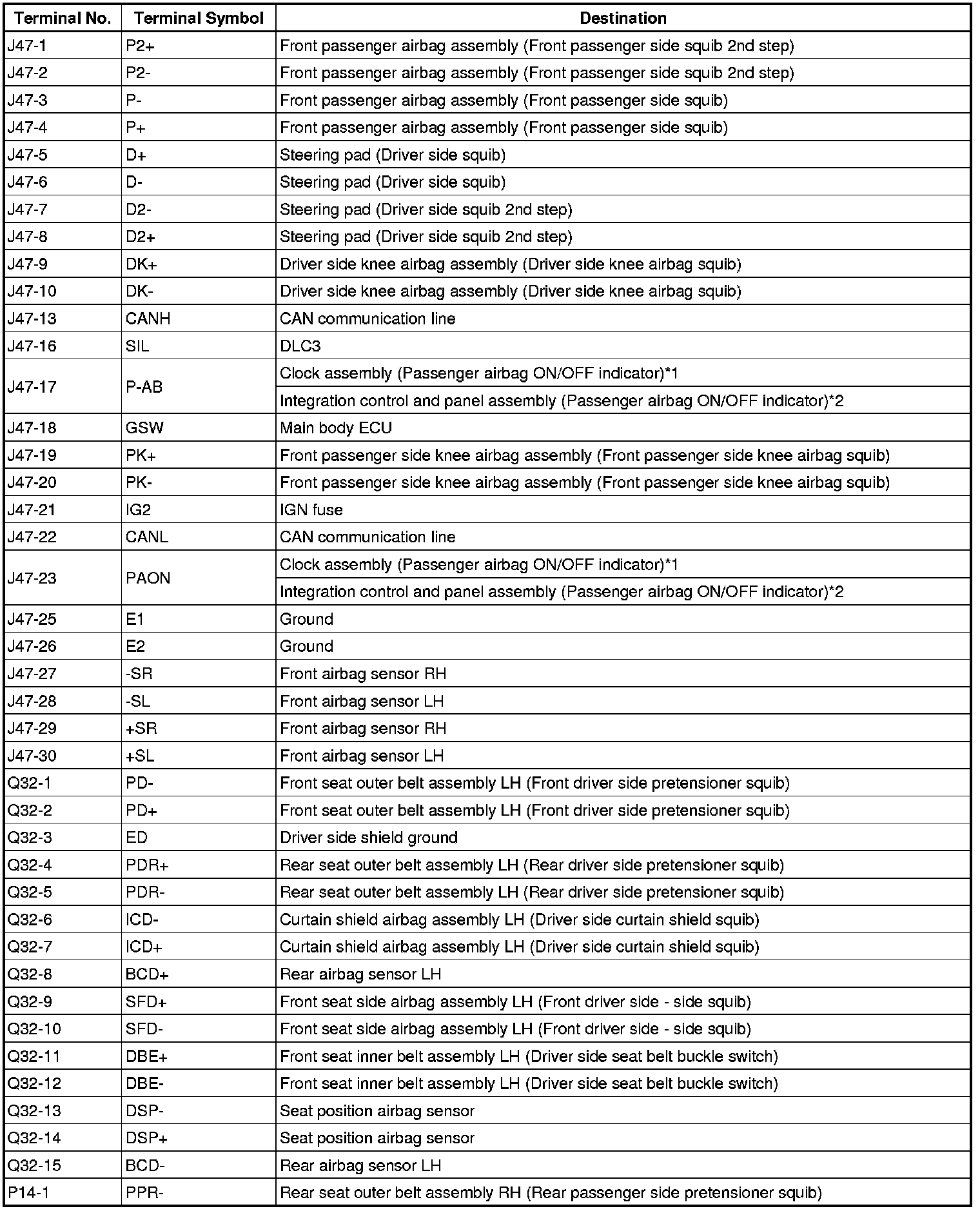

1. CENTER AIRBAG SENSOR ASSEMBLY
HINT:
*1: w/ Navigation system
*2: w/o Navigation system
