MIRROR (EXT): OUTER MIRROR SWITCH: INSTALLATION

MIRROR

1. INSTALL OUTER MIRROR SWITCH ASSEMBLY

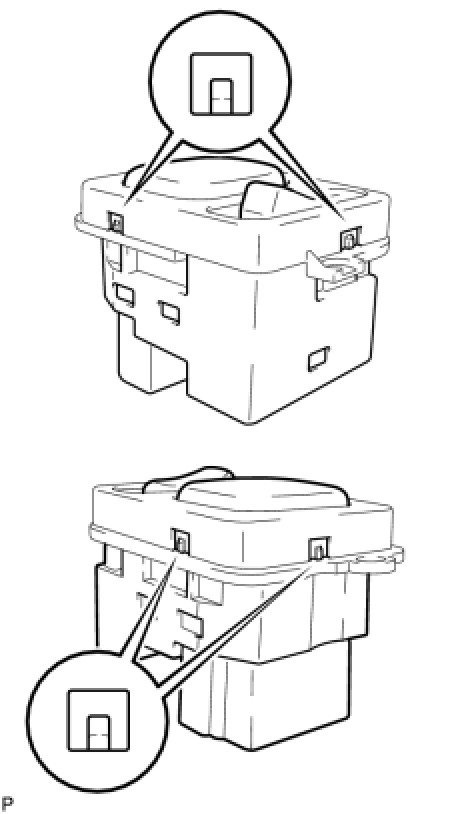

(a) Engage the 4 claws to install the outer mirror switch assembly.






(b) Install the outer mirror switch assembly with the front door armrest lower base cover LH with the 2 screws.
2. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL Reassembly

3. INITIALIZE POWER WINDOW CONTROL SYSTEM Installation
