Service Data

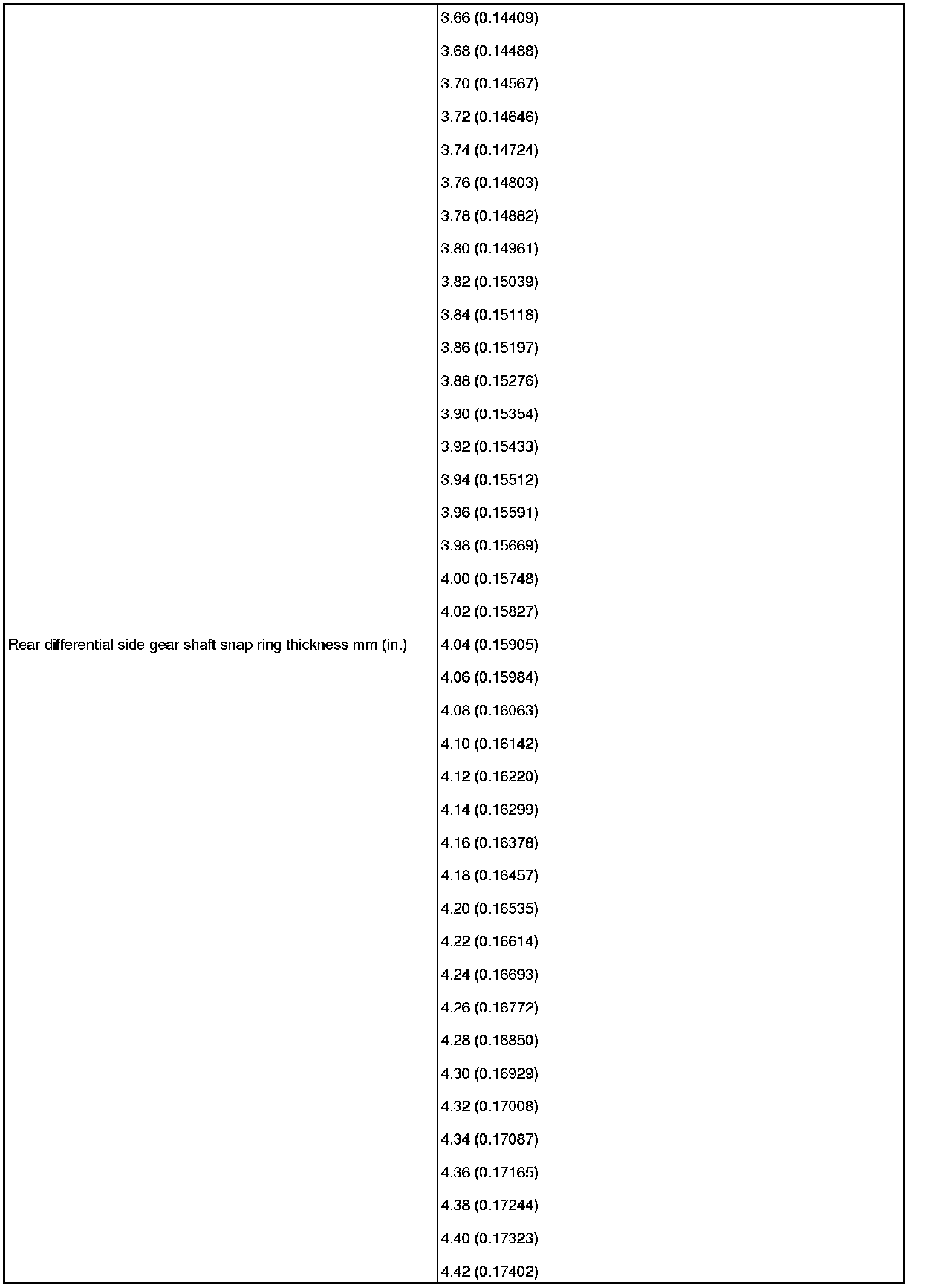

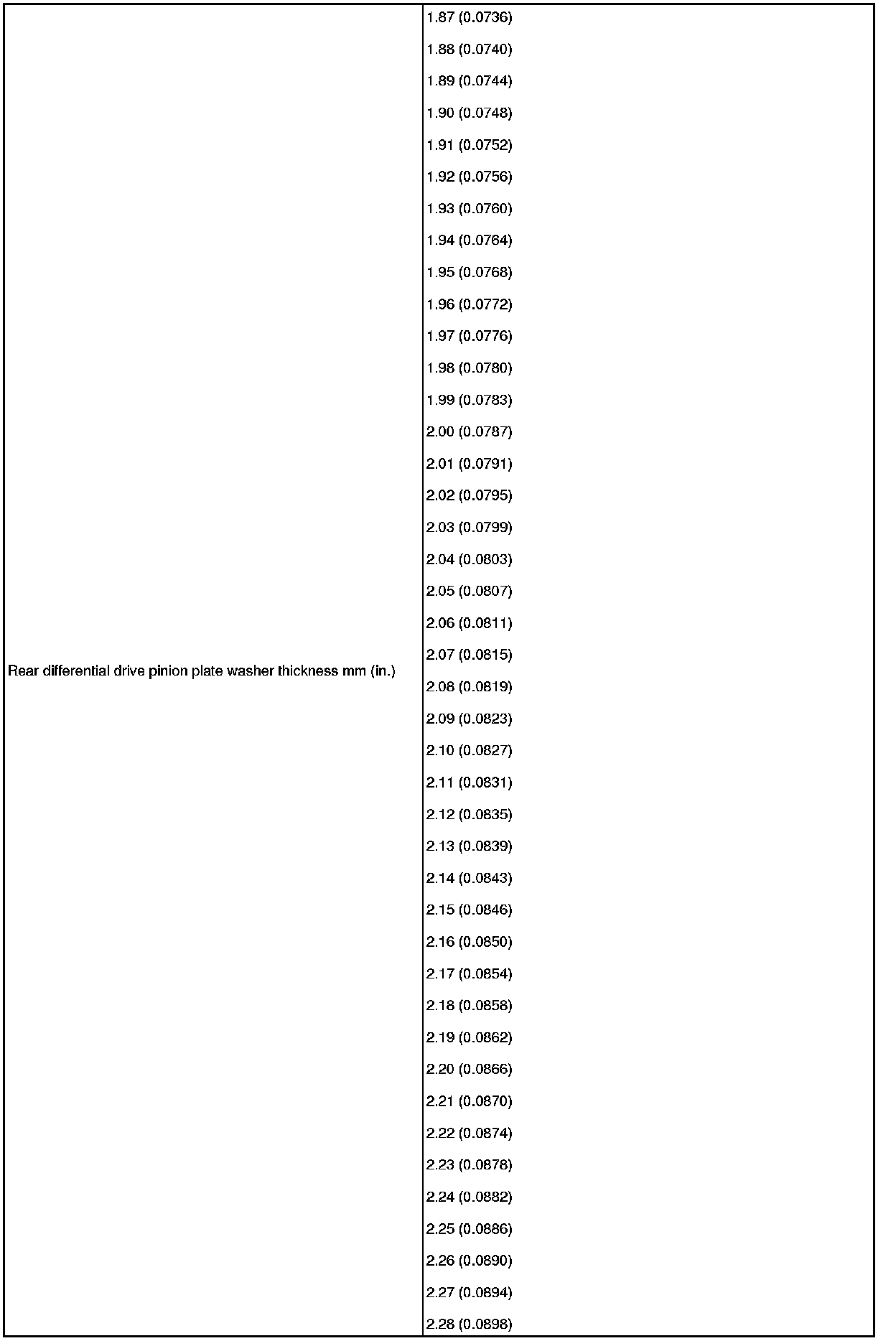

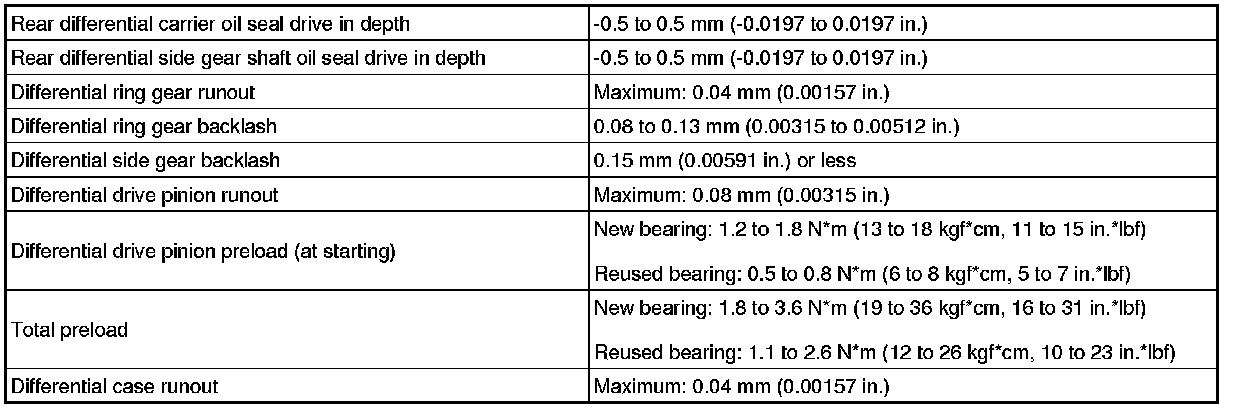

SPECIFICATIONS: AXLE AND DIFFERENTIAL: SERVICE DATA

SPECIFICATIONS: AXLE AND DIFFERENTIAL: SERVICE DATA

Axle





Differential
