Flex Plate

DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

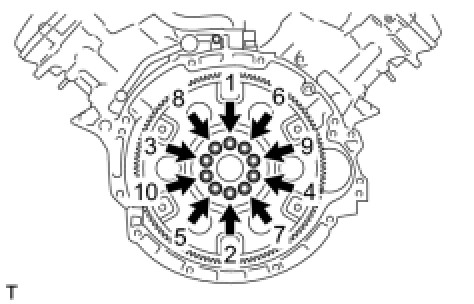

Uniformly install and tighten 10 new bolts in the sequence shown in the
illustration.

Torque: 30 Nm (301 kgf-cm, 22 ft-lbf)





Mark the upside of each drive plate and ring gear sub-assembly installation bolt with paint.

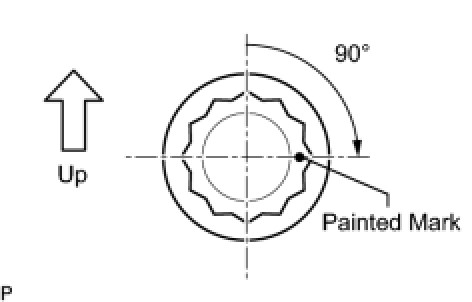

Retighten the drive plate and ring gear sub-assembly installation bolts 90° as shown in the illustration.
Check that the painted marks are now at a 90° angle to the upside.
