System Specifications









SPECIFICATIONS: TIRE / WHEEL: SERVICE DATA

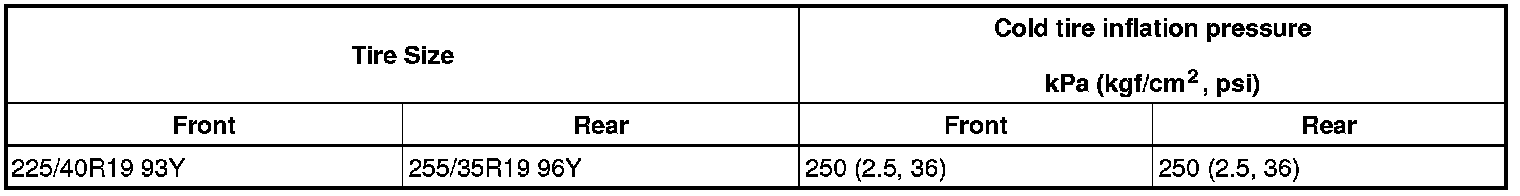

Cold tire inflation pressure:






When driving under the above vehicle conditions at sustained high speeds of above 160 km/h (100 mph), in countries where such speeds are permitted by law, inflate the front and rear tires to 310 kPa (3.1 kgf/cm2, 45 psi) provided that it does not exceed the maximum cold tire inflation pressure molded on the tire sidewall.
