Starting System: Description and Operation

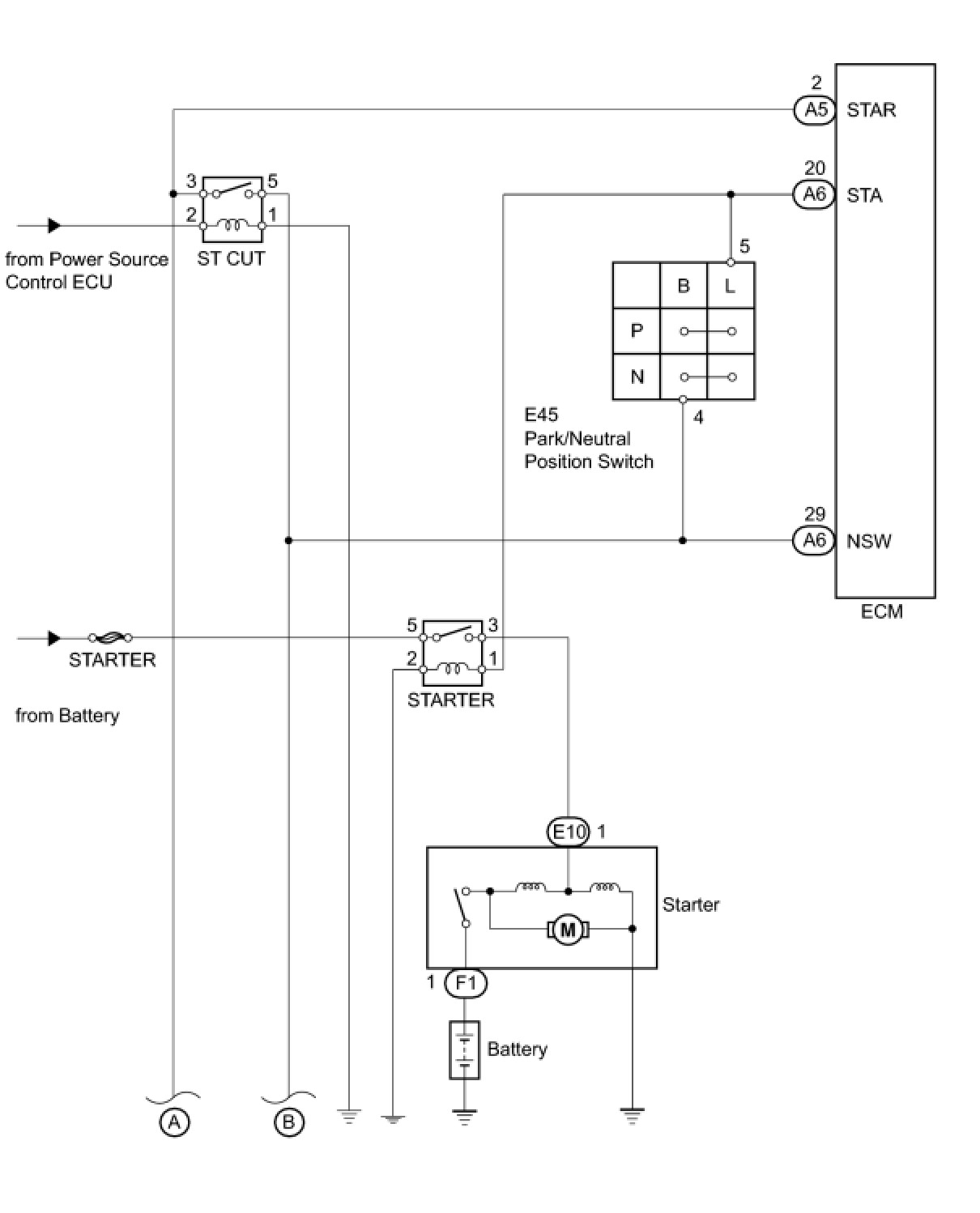

2UR-GSE STARTING: STARTING SYSTEM:

2UR-GSE STARTING: STARTING SYSTEM:
