Starting System: Locations

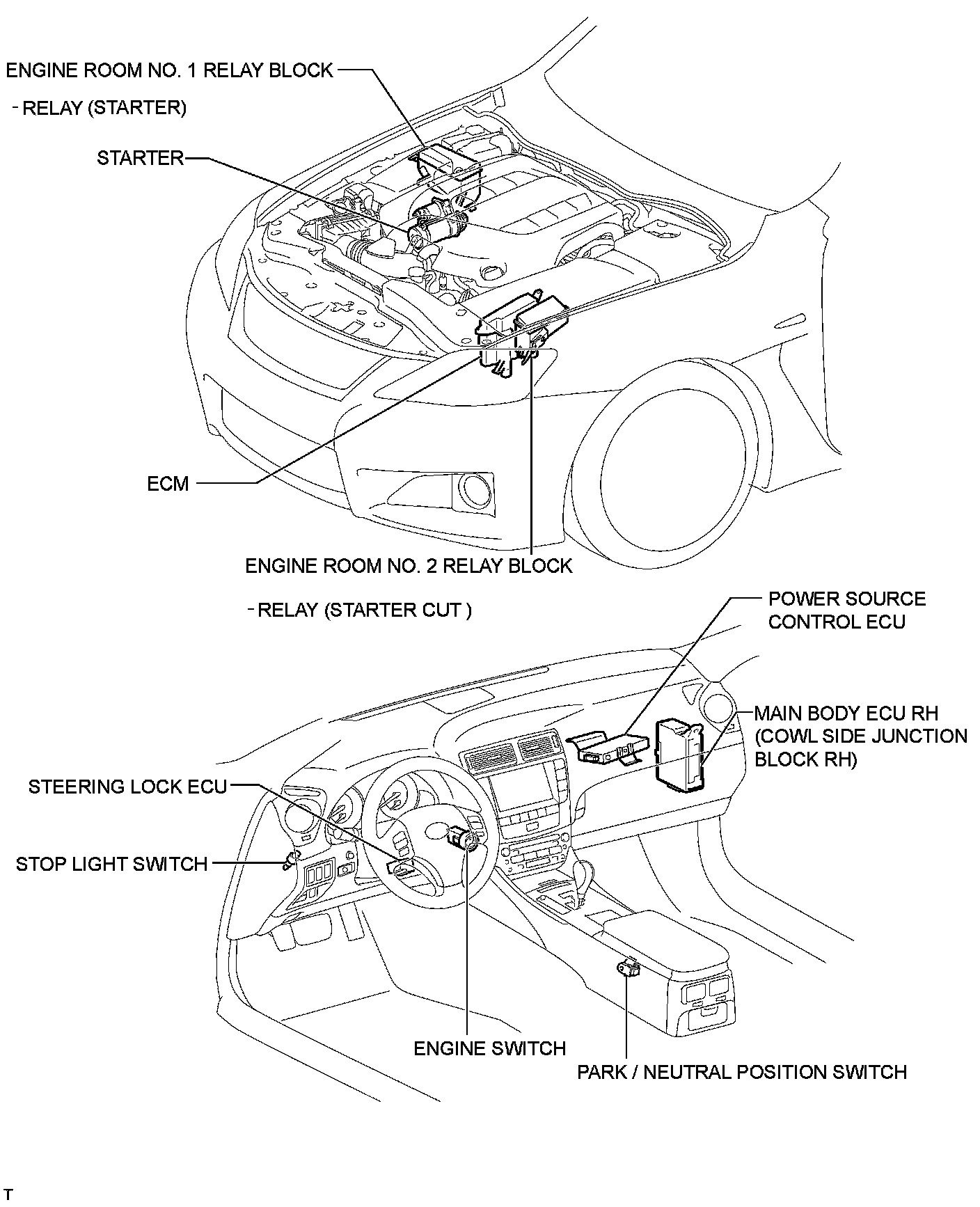

2UR-GSE STARTING: STARTING SYSTEM: PARTS LOCATION

2UR-GSE STARTING: STARTING SYSTEM: PARTS LOCATION

ILLUSTRATION
