Connector Views
Connector Views

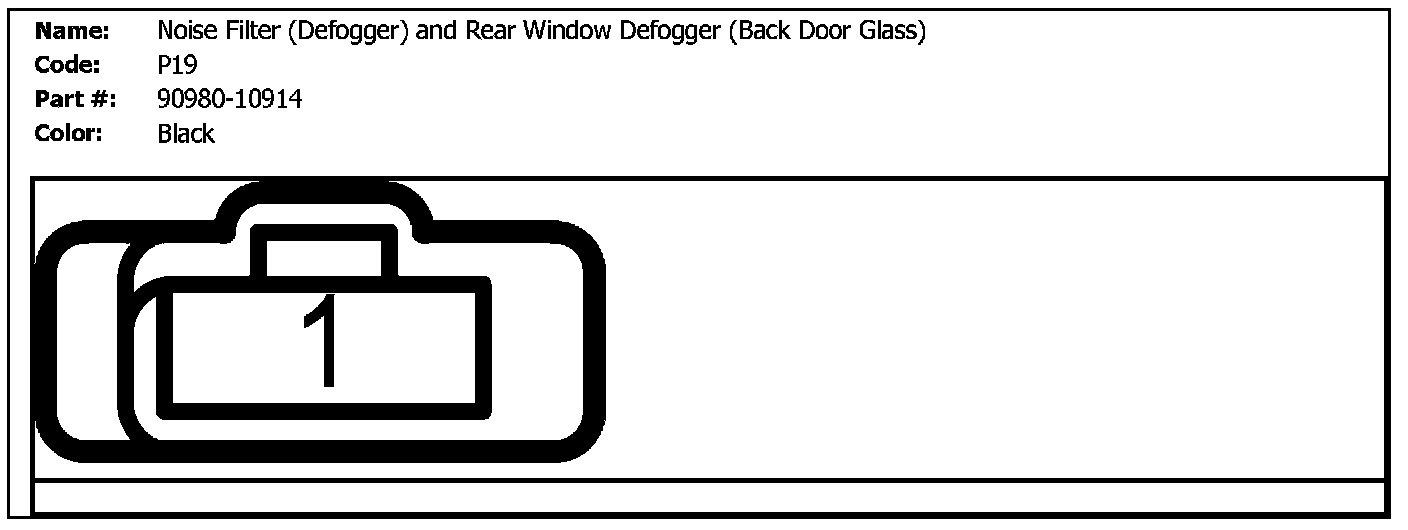

P19 (Noise Filter (Defogger) And Rear Window Defogger (Back Door Glass)):

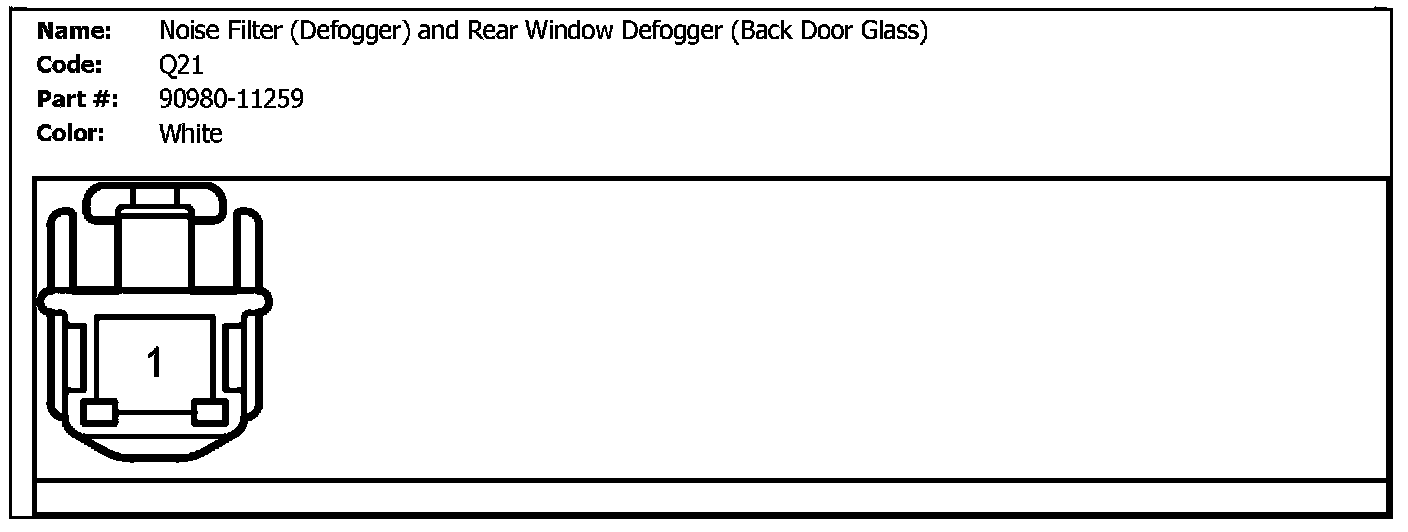

Q21 (Noise Filter (Defogger) And Rear Window Defogger (Back Door Glass)):
