Headlamp Wiper Switch: Testing and Inspection

WIPER / WASHER: HEADLIGHT CLEANER SWITCH: INSPECTION

WIPER / WASHER: HEADLIGHT CLEANER SWITCH: INSPECTION





1. INSPECT HEADLIGHT CLEANER SWITCH ASSEMBLY

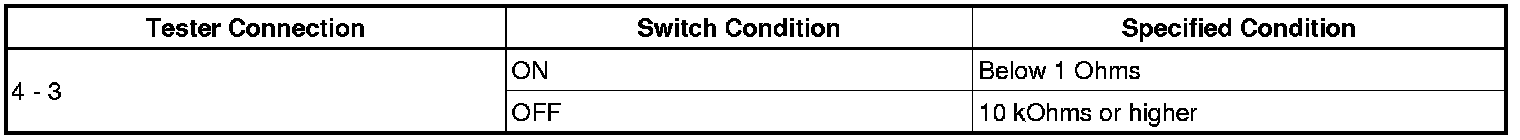

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the headlight cleaner switch assembly.
