Position of Parts In Seat (Rear Seat w/o Ottoman w/ Power Seat)

Position of Parts in Seat (Rear Seat w/o Ottoman w/ Power Seat):

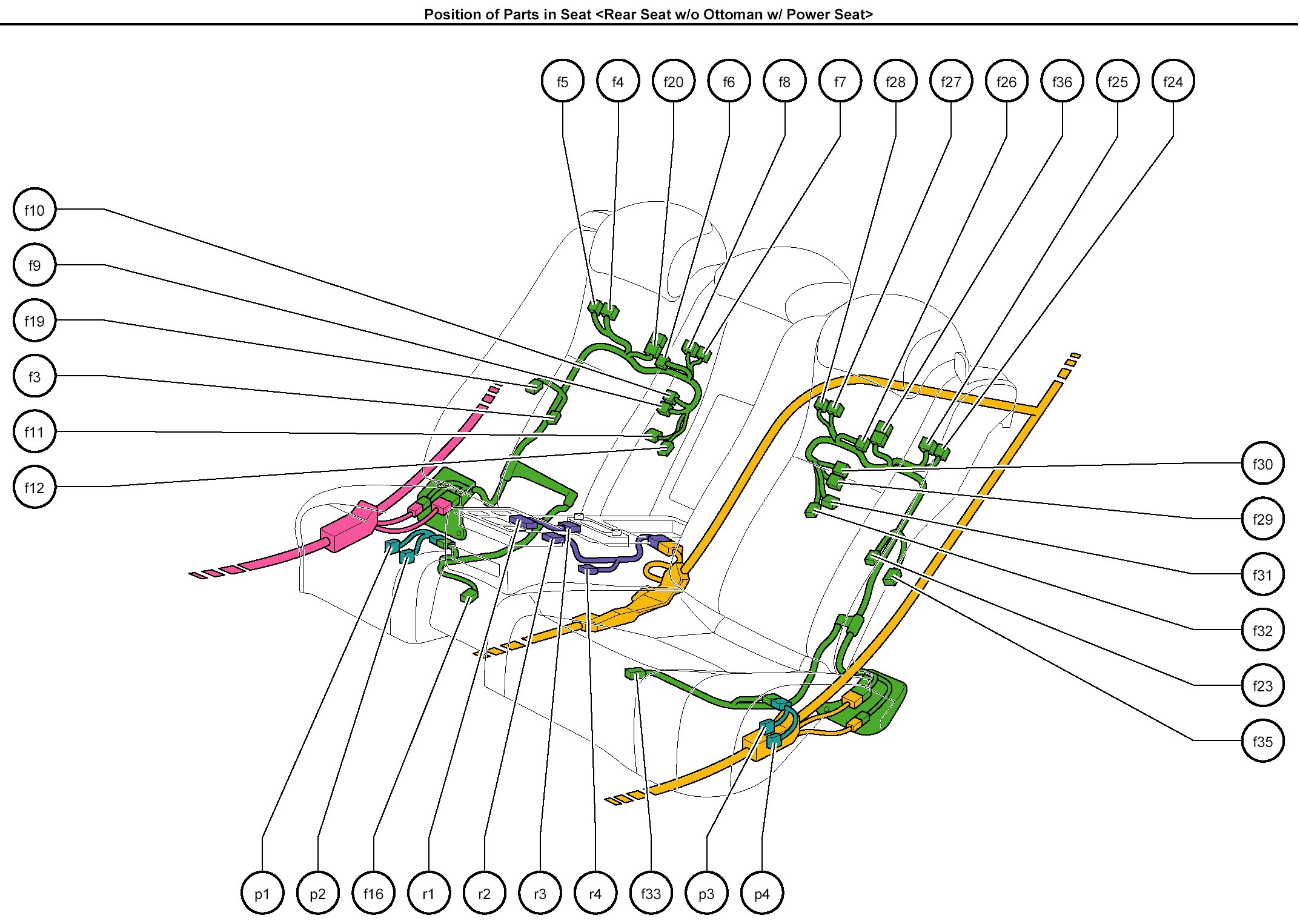

Position of Parts In Seat <Rear Seat w/o Ottoman w/ Power Seat>:

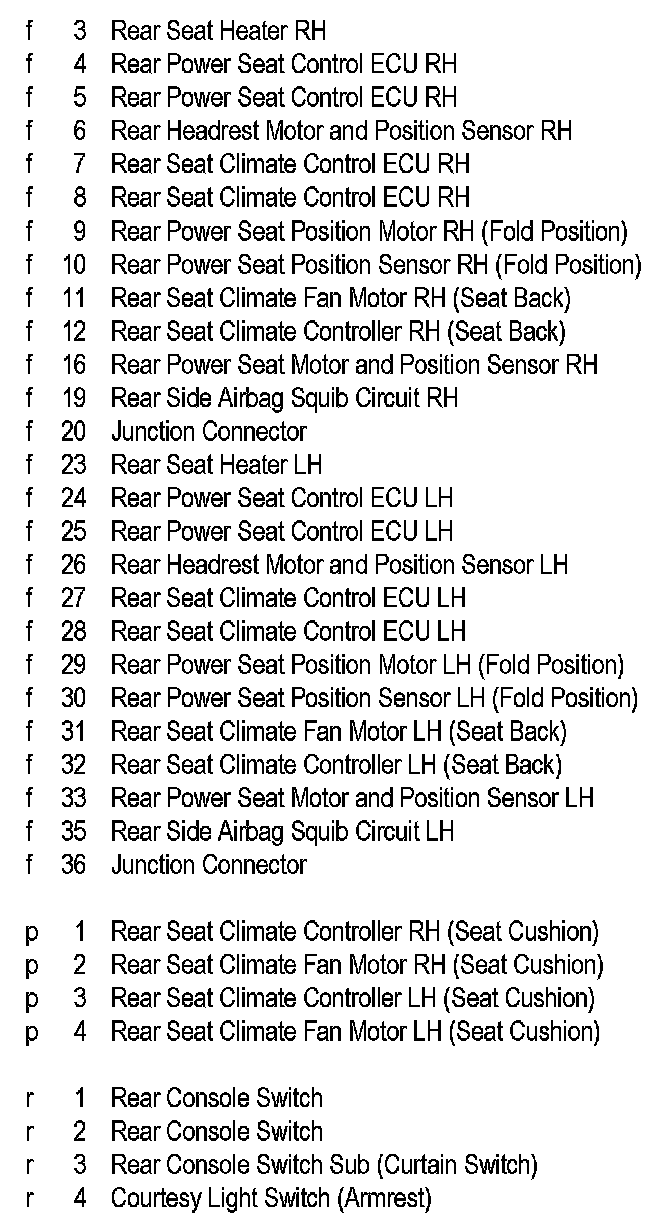

Position of Parts In Seat <Rear Seat w/o Ottoman w/ Power Seat>:



Position of Parts In Seat <Rear Seat w/o Ottoman w/ Power Seat>:
