Air Bag

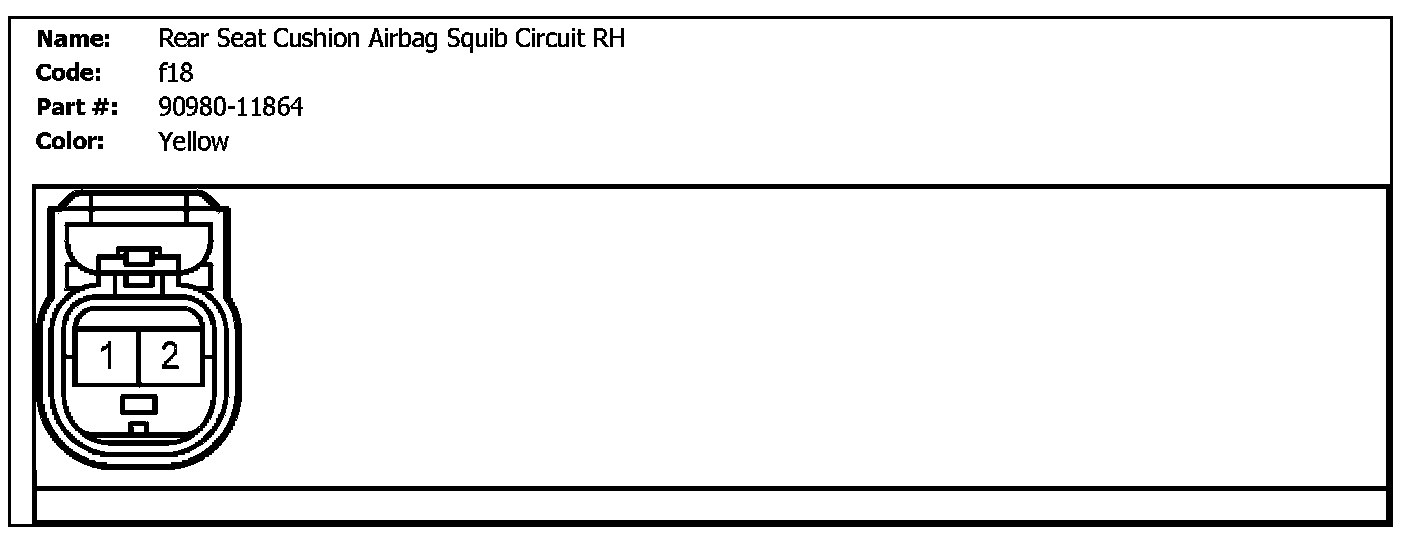

f18 (Rear Seat Cushion Airbag Squib Circuit RH):

f19 (Rear Side Airbag Squib Circuit RH):

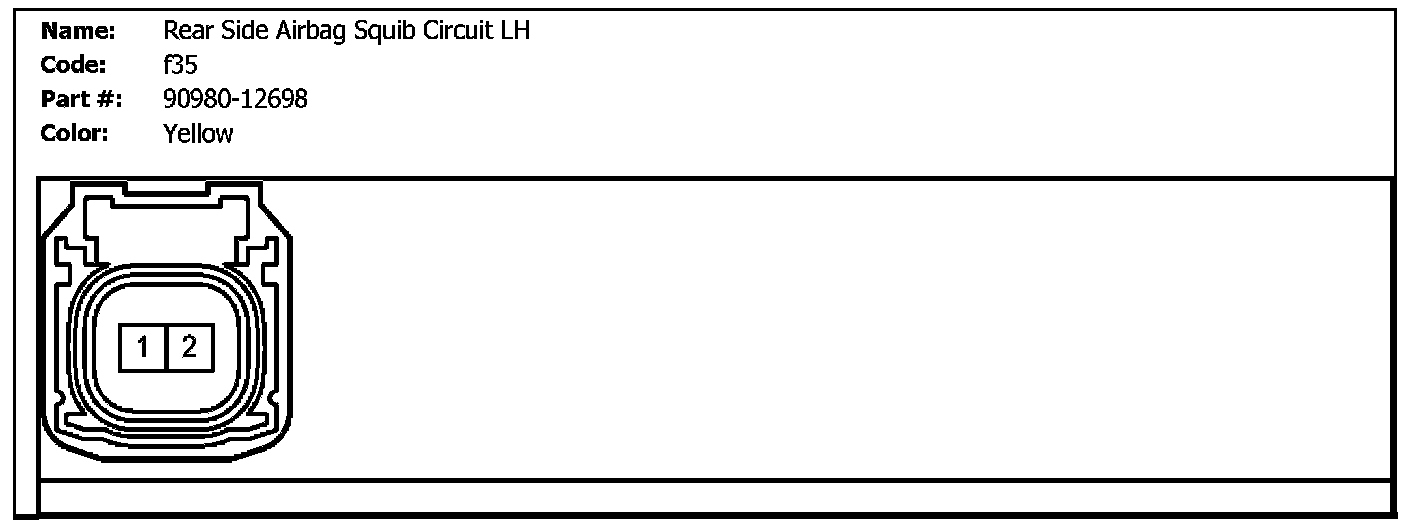

f35 (Rear Side Airbag Squib Circuit LH):

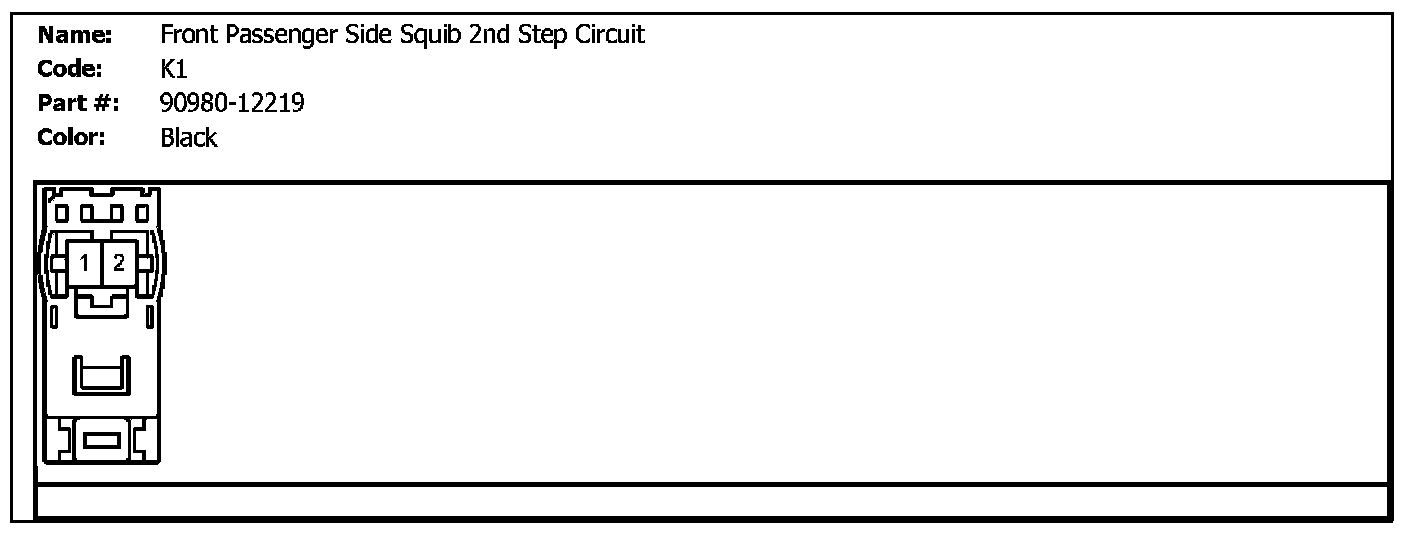

K1 (Front Passenger Side Squib 2nd Step Circuit):

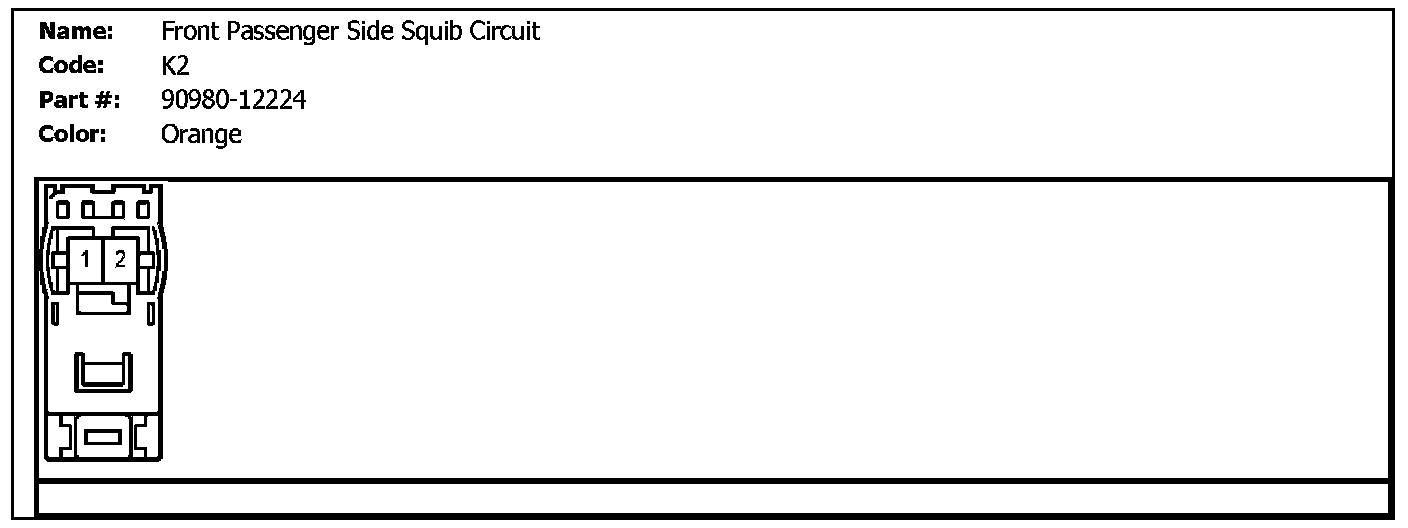

K2 (Front Passenger Side Squib Circuit):

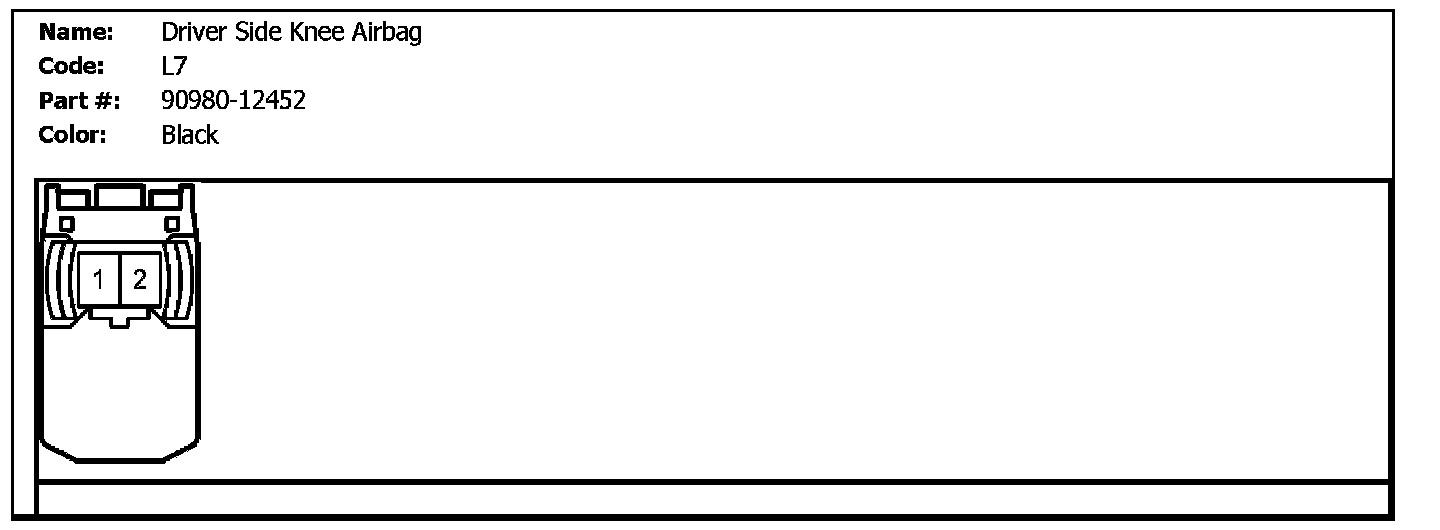

L7 (Driver Side Knee Airbag):

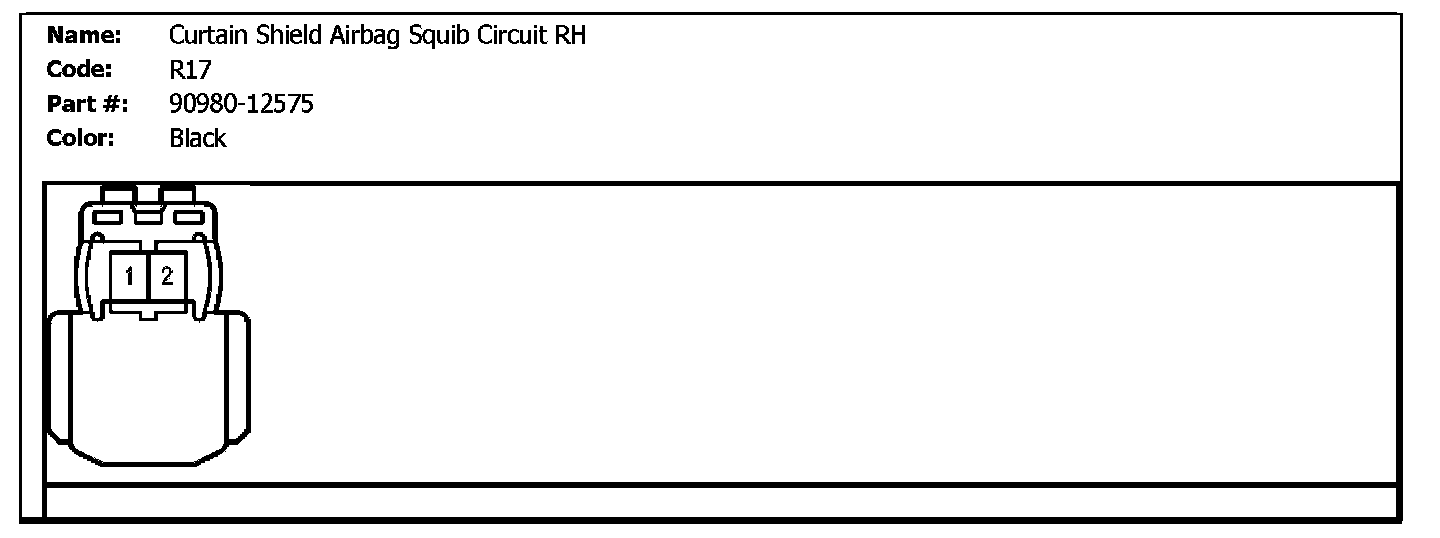

R17 (Curtain Shield Airbag Squib Circuit RH):

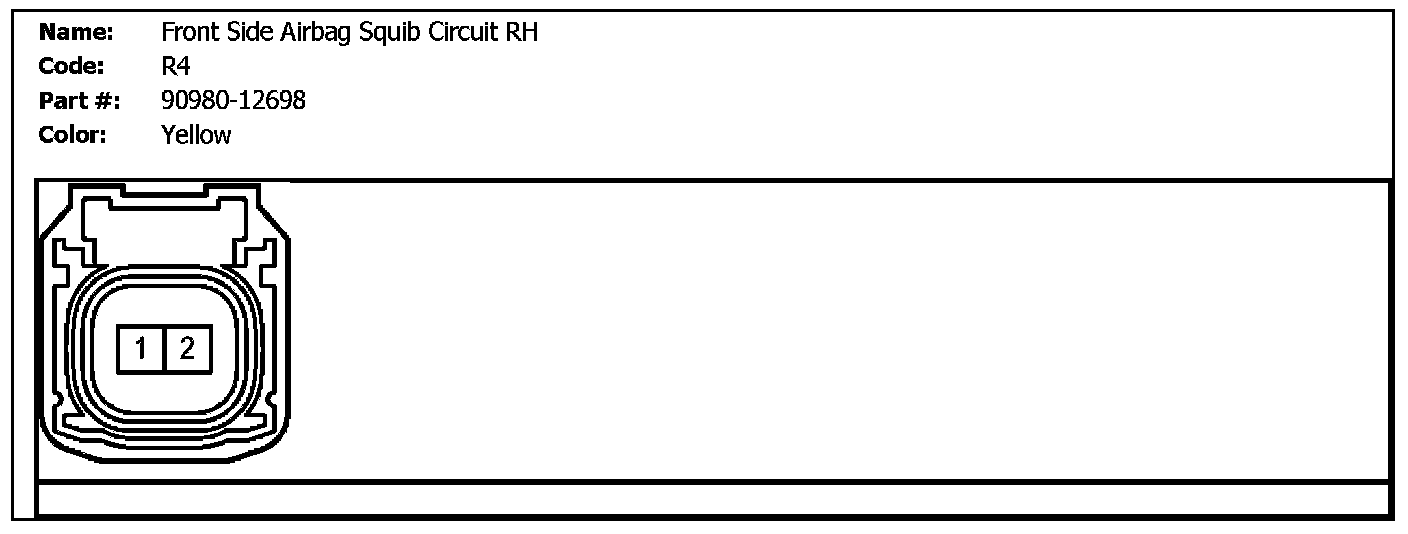

R4 (Front Side Airbag Squib Circuit RH):

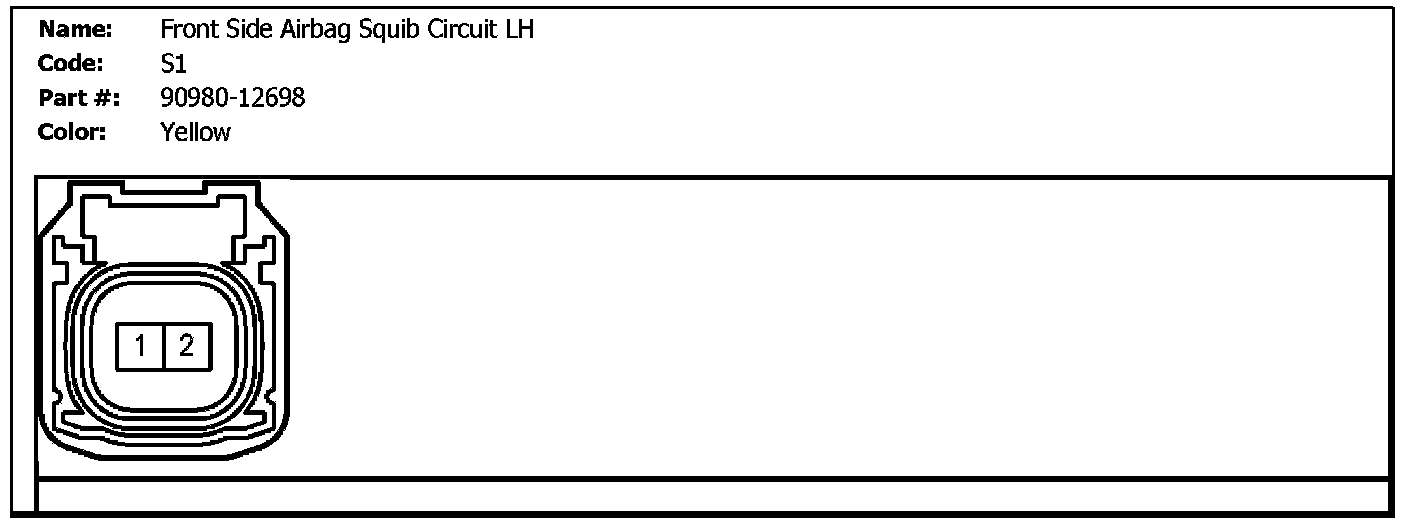

S1 (Front Side Airbag Squib Circuit LH):

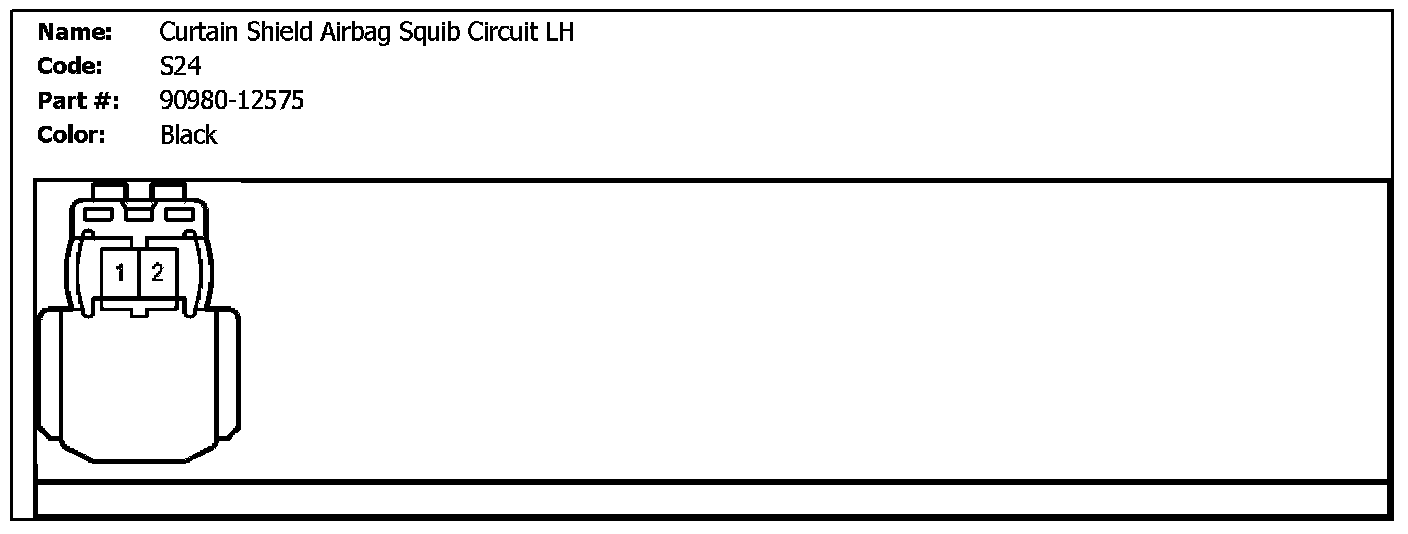

S24 (Curtain Shield Airbag Squib Circuit LH):

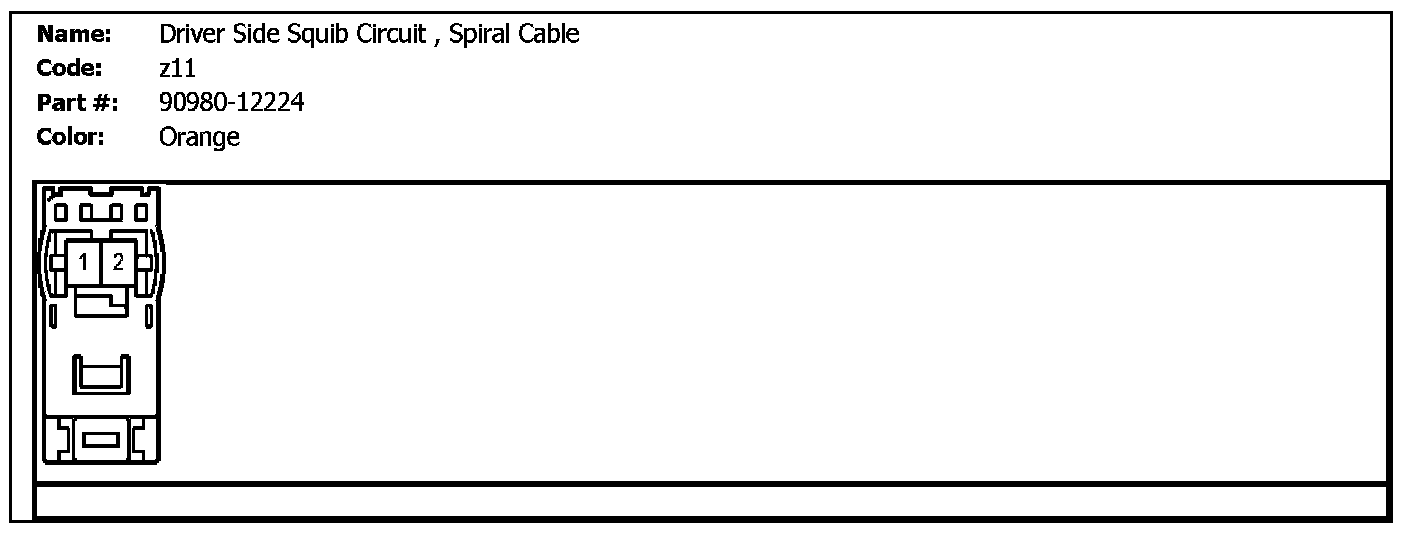

z11 (Driver Side Squib Circuit, Spiral Cable):

z12 (Driver Side Squib 2nd Step Circuit, Spiral Cable):
