Parking Assist Control Module
Parking Assist Control Module
L103 (Parking Assist ECU):

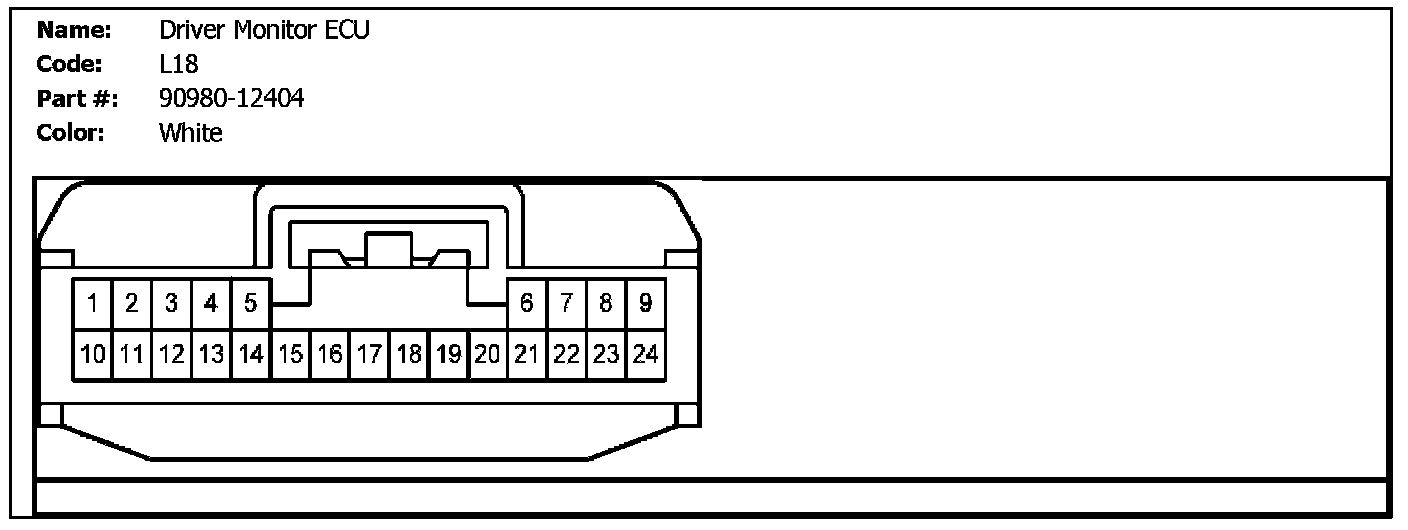

L18 (Driver Monitor ECU):

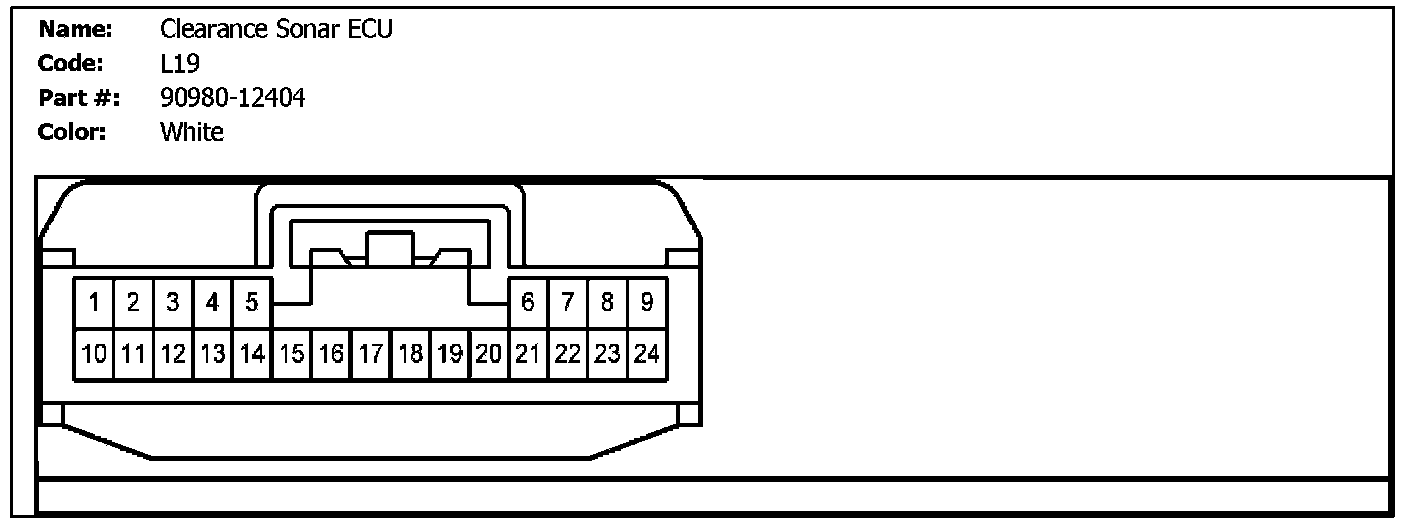

L19 (Clearance Sonar ECU):

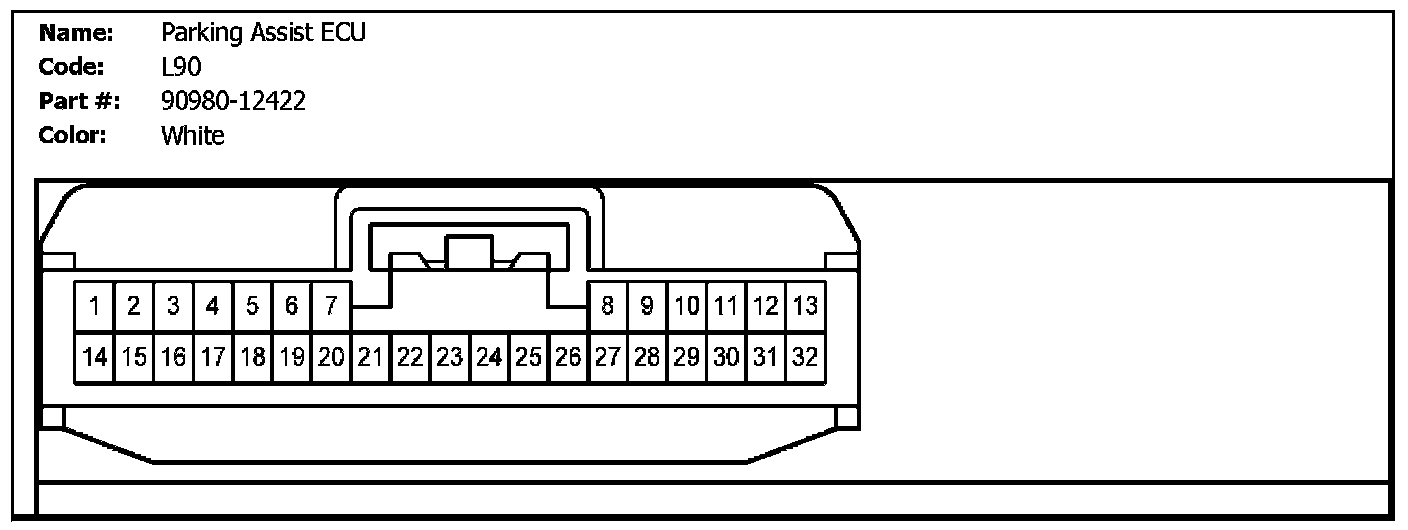

L90 (Parking Assist ECU):

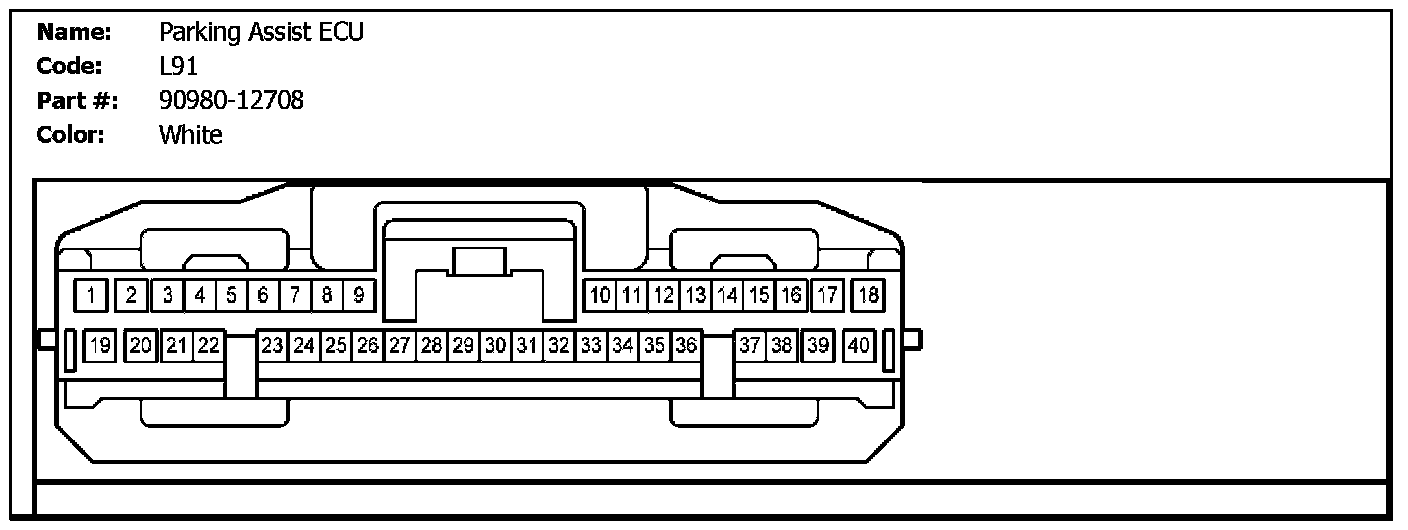

L91 (Parking Assist ECU):
