Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

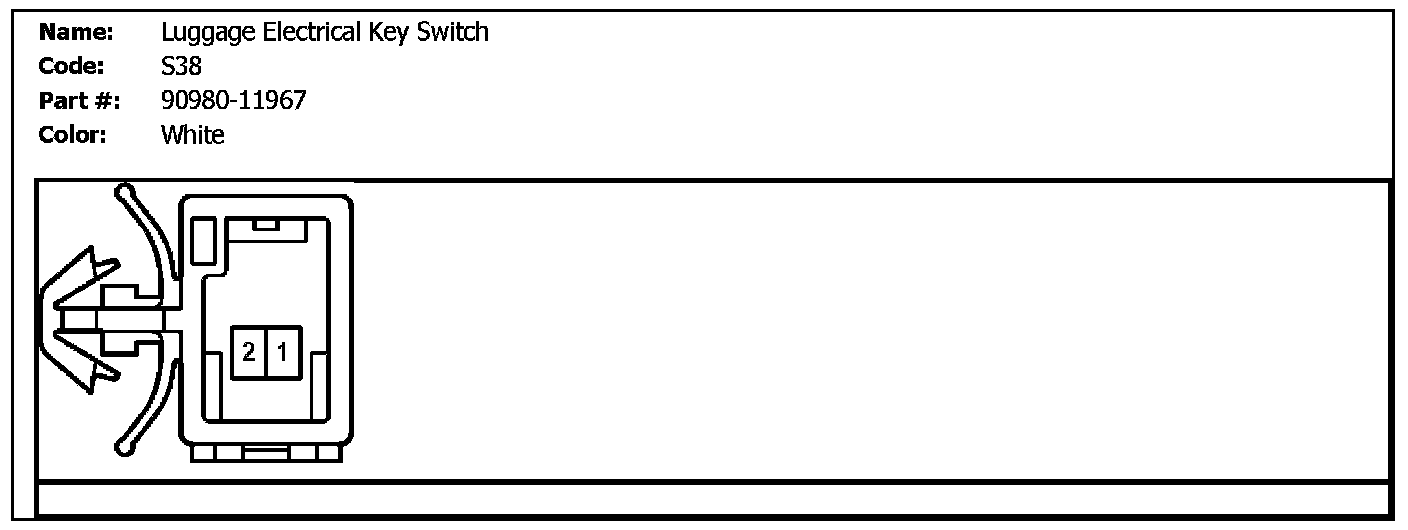

S38 (Luggage Electrical Key Switch):

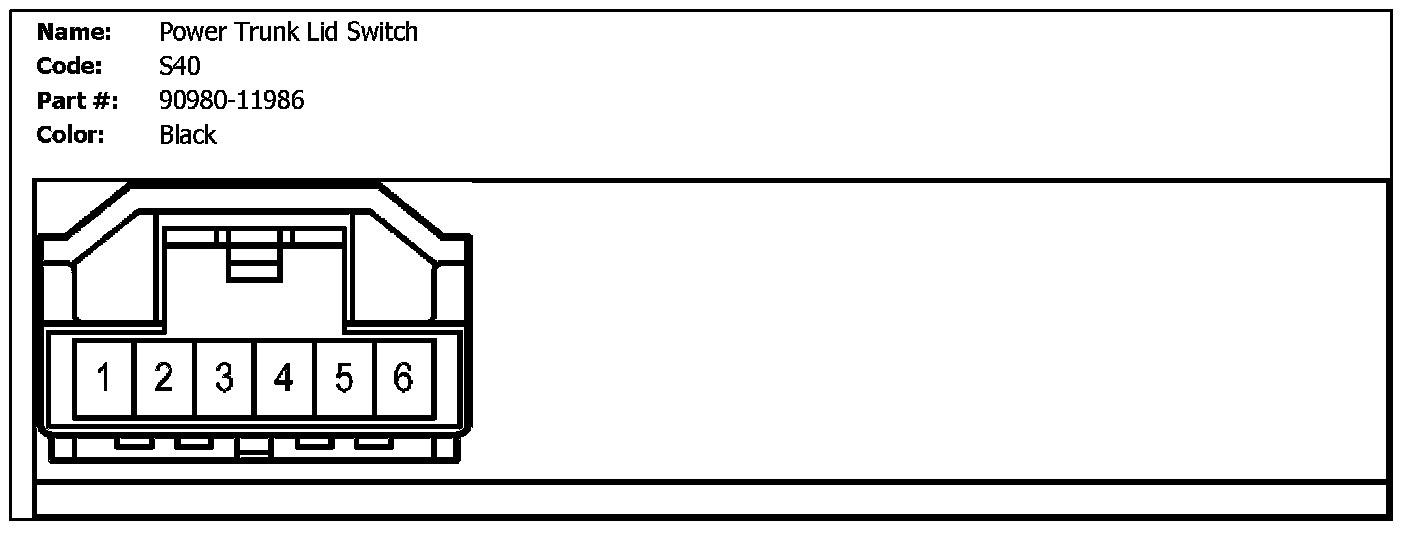

S40 (Power Trunk Lid Switch):
