Speaker

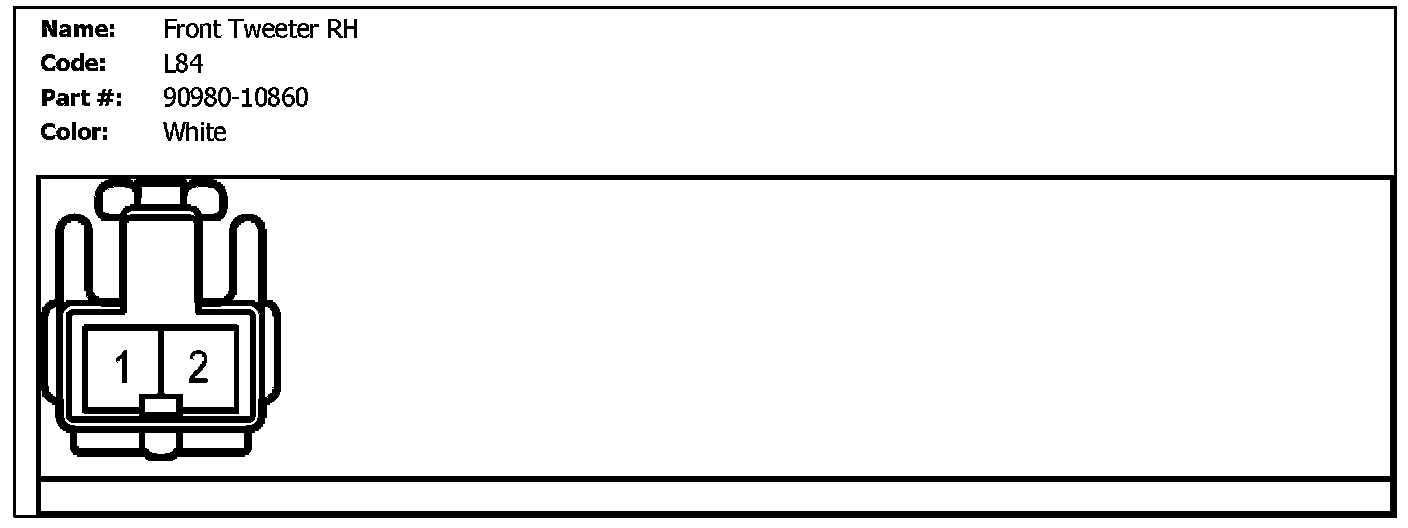

L84 (Front Tweeter RH):

L9 (Front Tweeter LH):

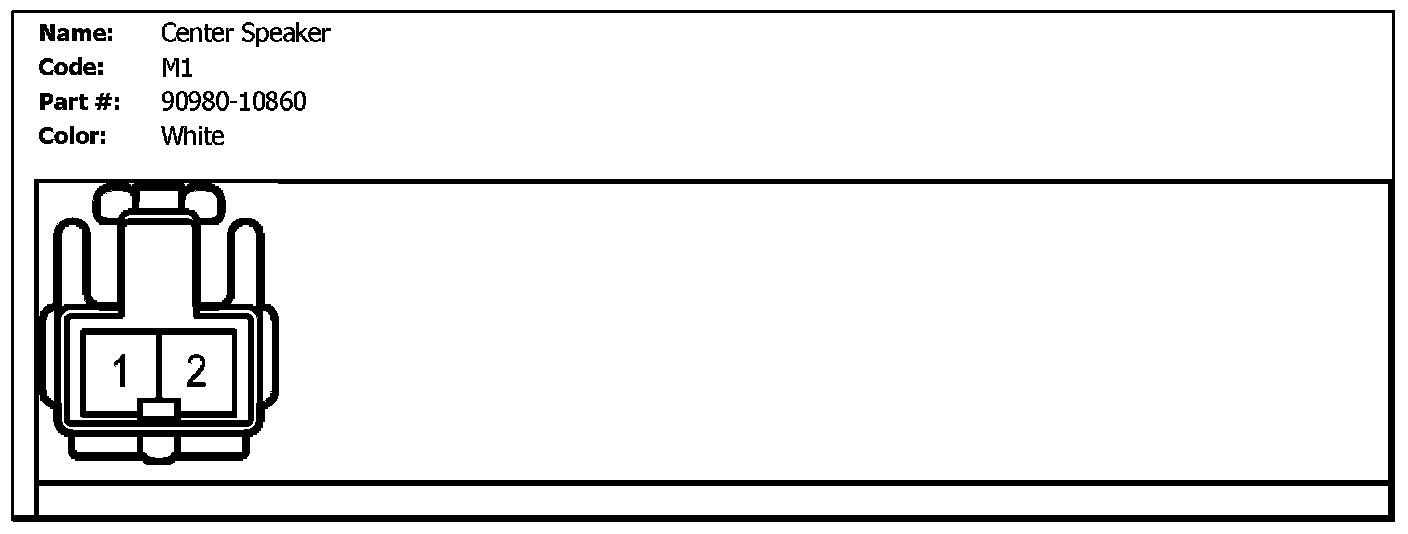

M1 (Center Speaker):

N12 (Front Woofer LH):

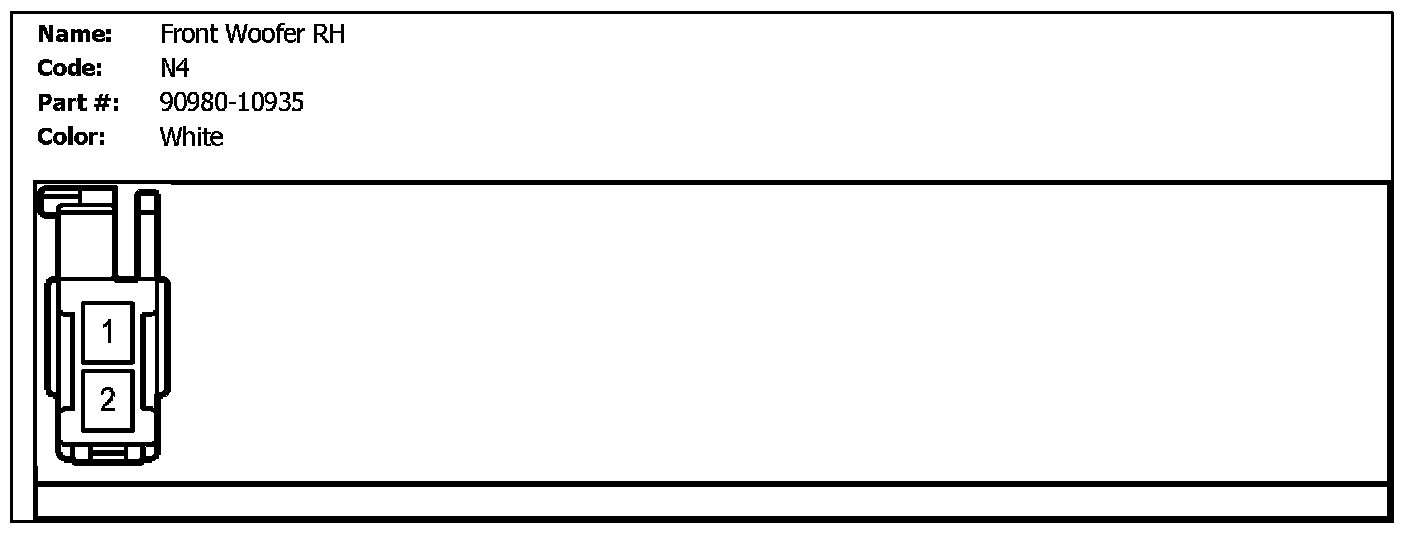

N4 (Front Woofer RH):

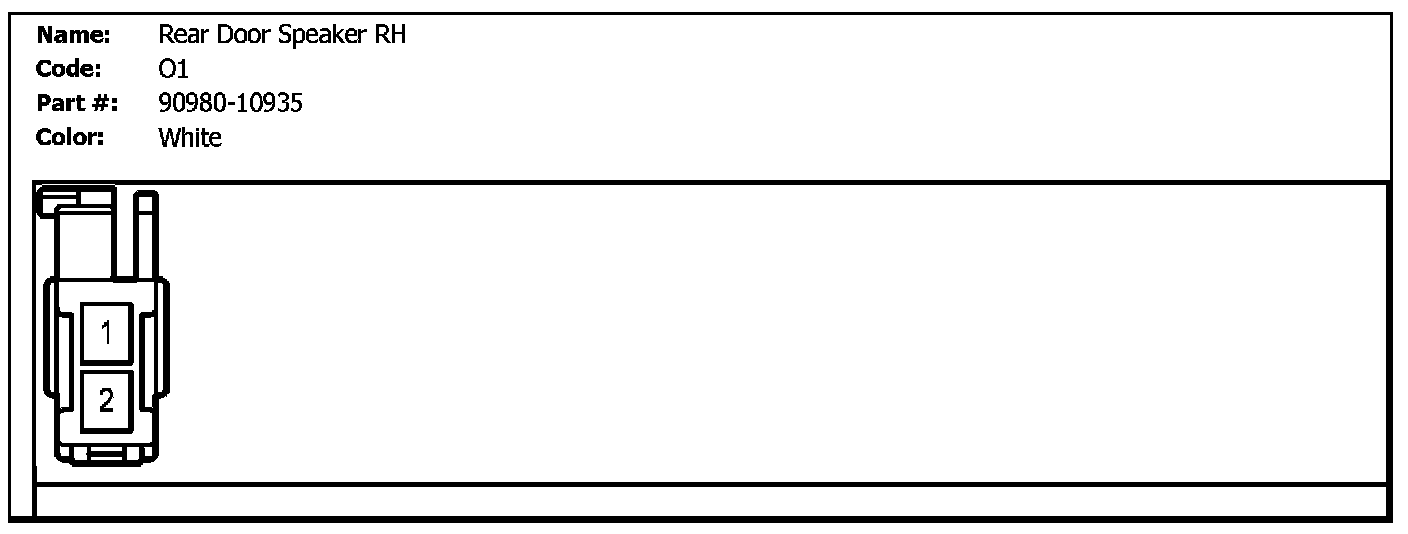

O1 (Rear Door Speaker RH):

O10 (Rear Squawker RH):

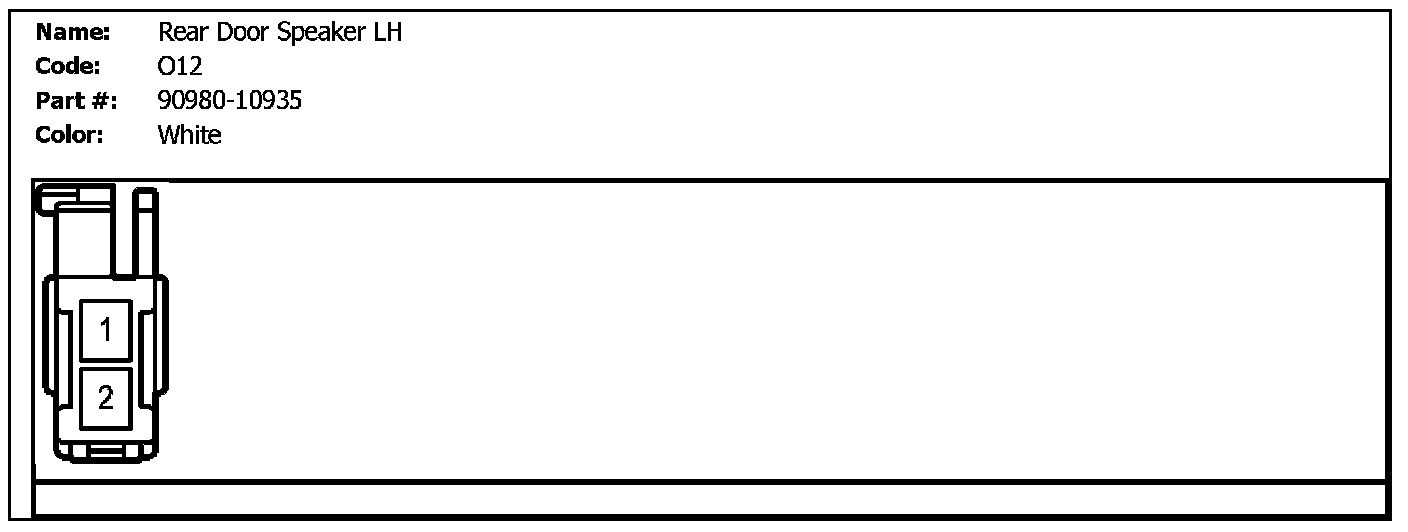

O12 (Rear Door Speaker LH):

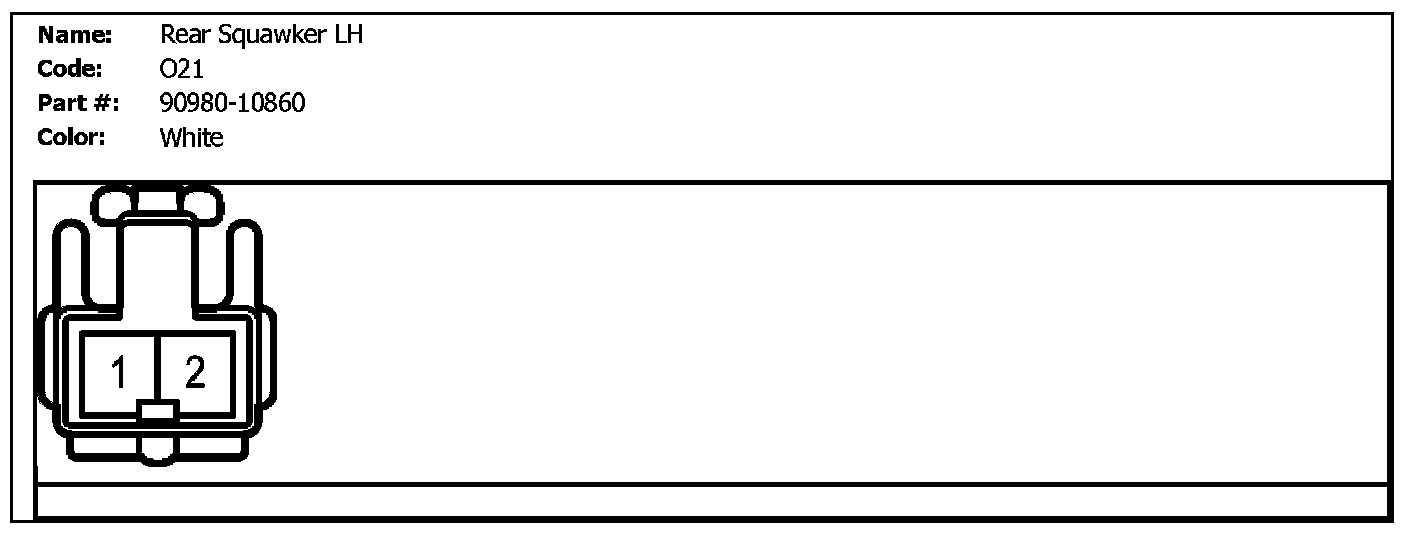

O21 (Rear Squawker LH):

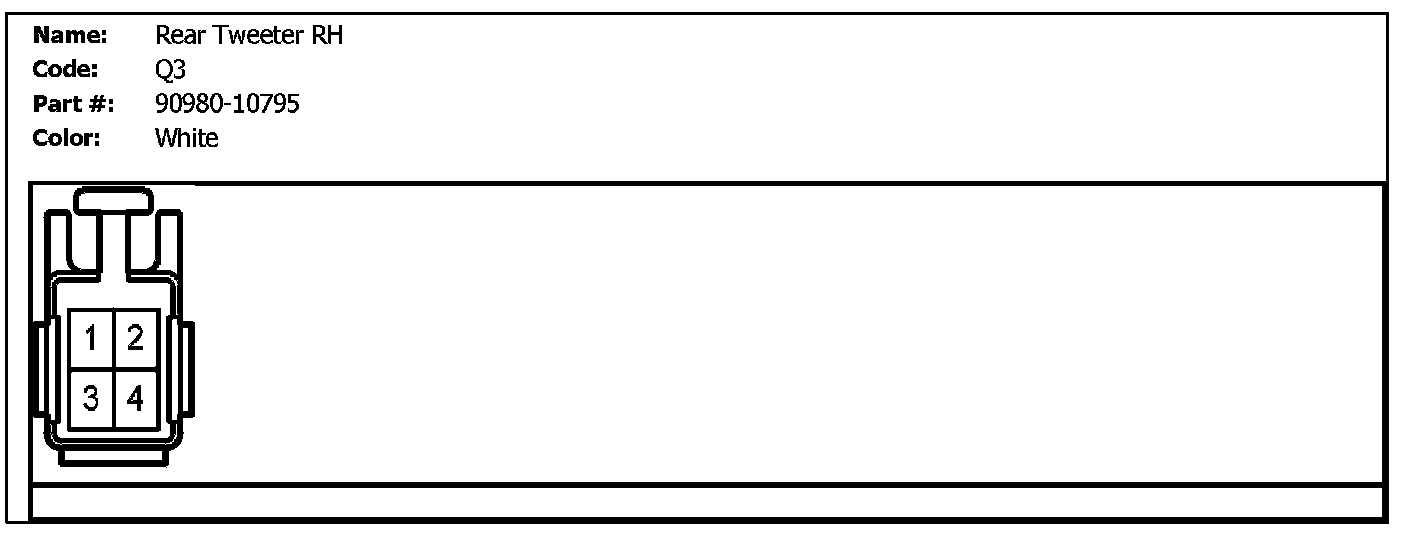

Q3 (Rear Tweeter RH):

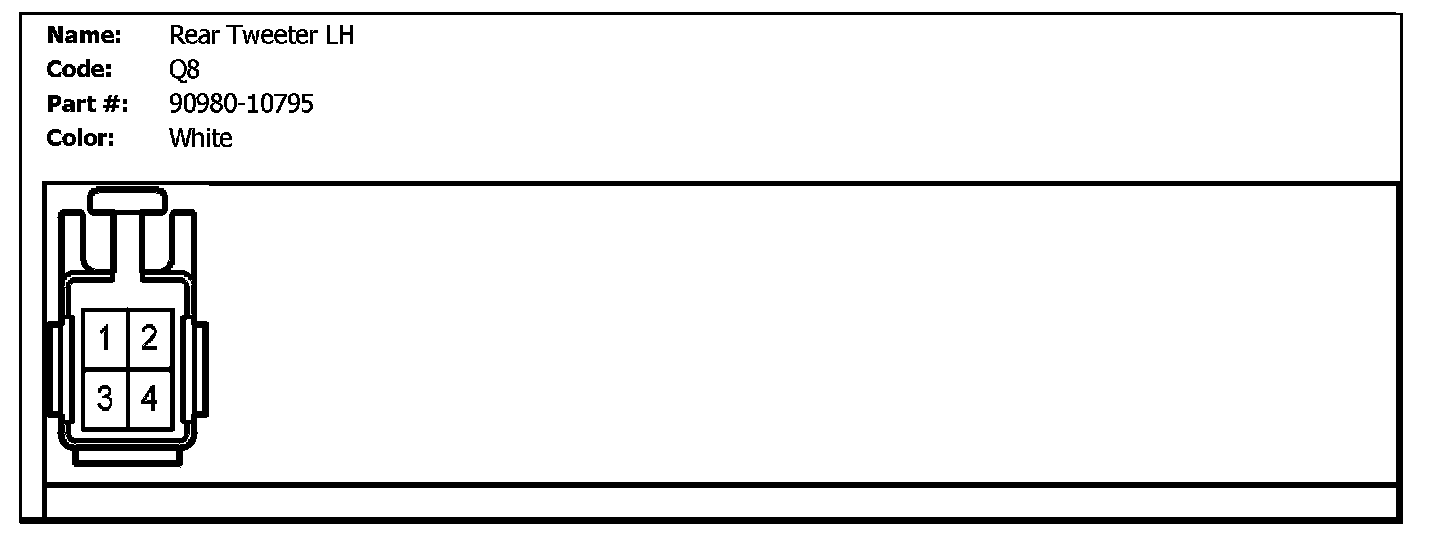

Q8 (Rear Tweeter LH):

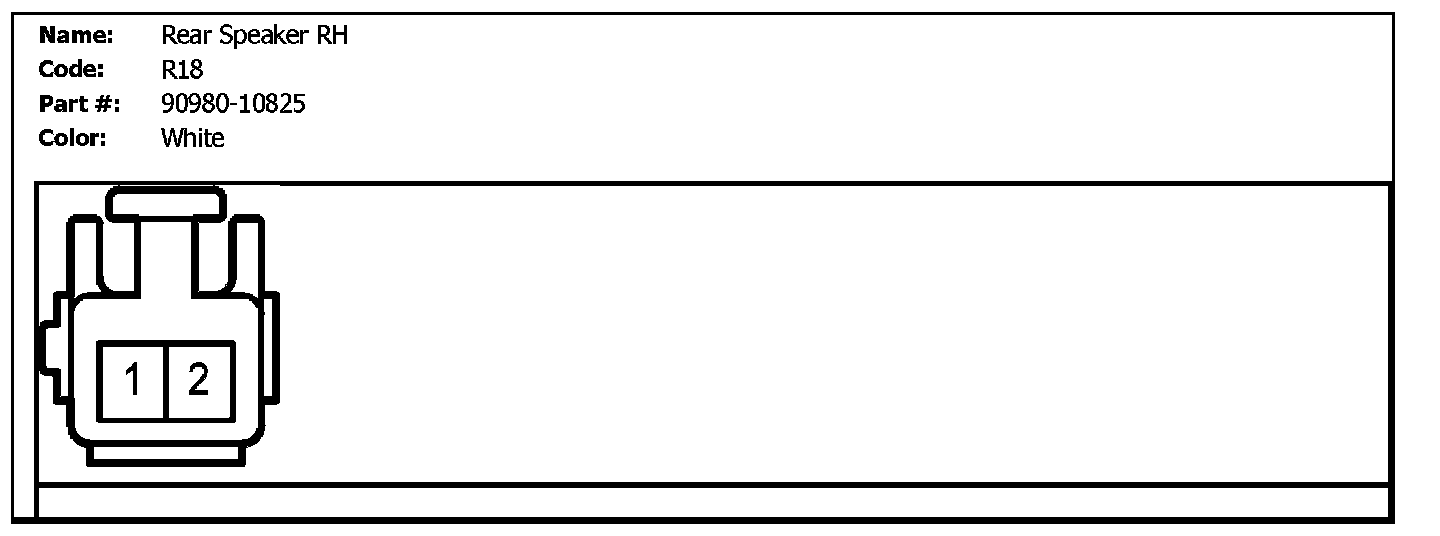

R18 (Rear Speaker RH):

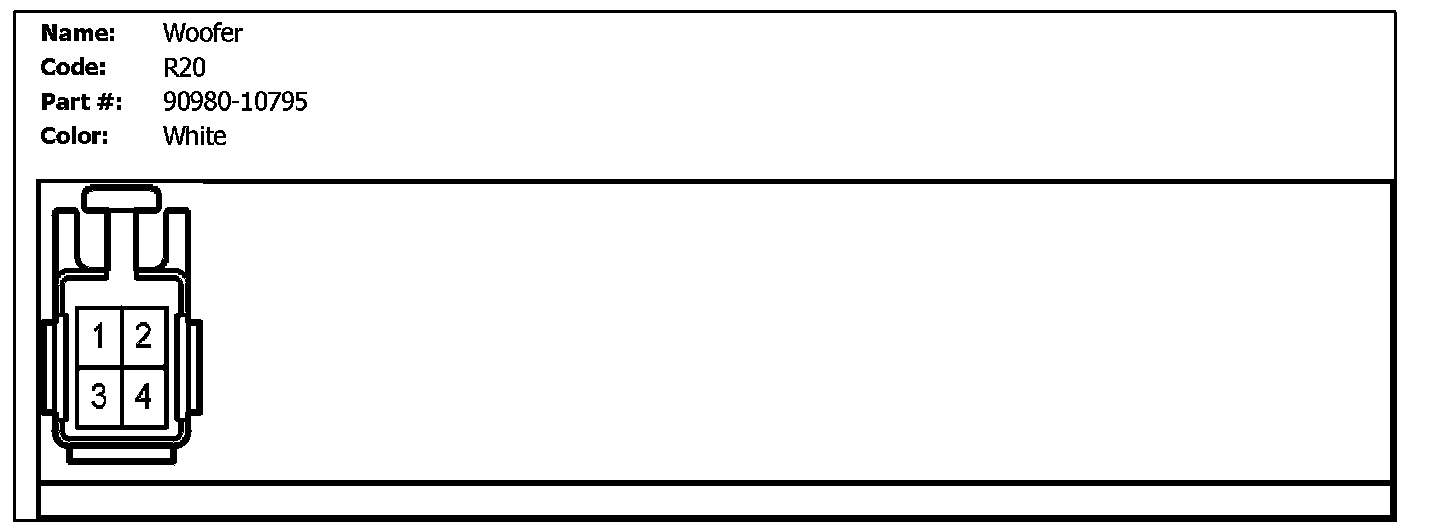

R20 (Woofer):

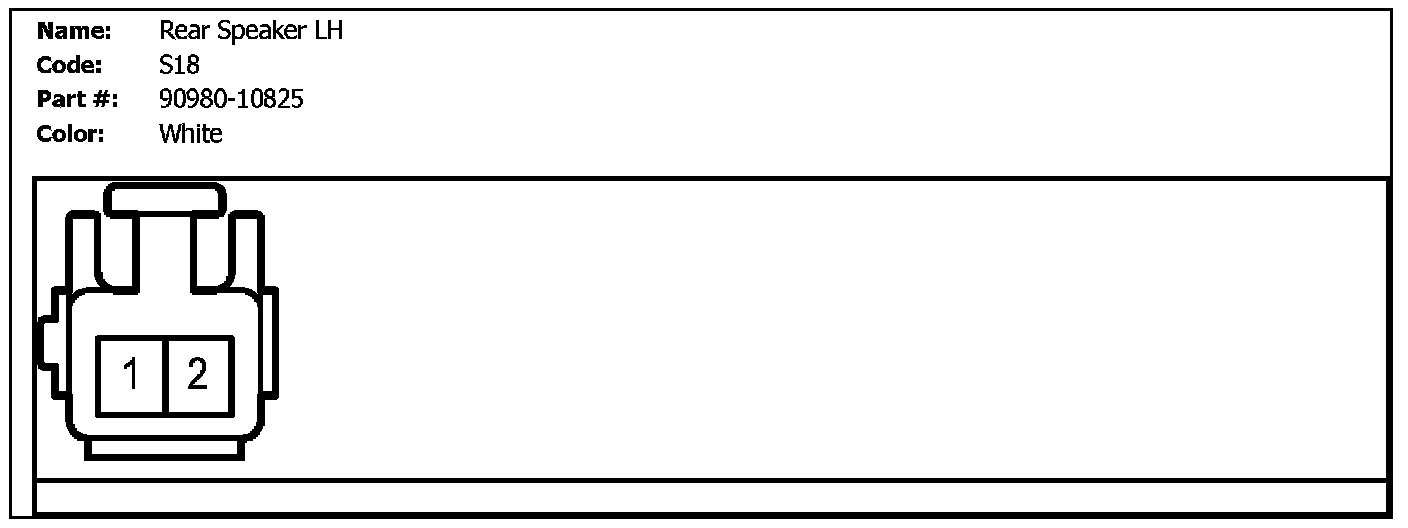

S18 (Rear Speaker LH):
