Steering Mounted Controls Transmitter
Steering Mounted Controls Transmitter

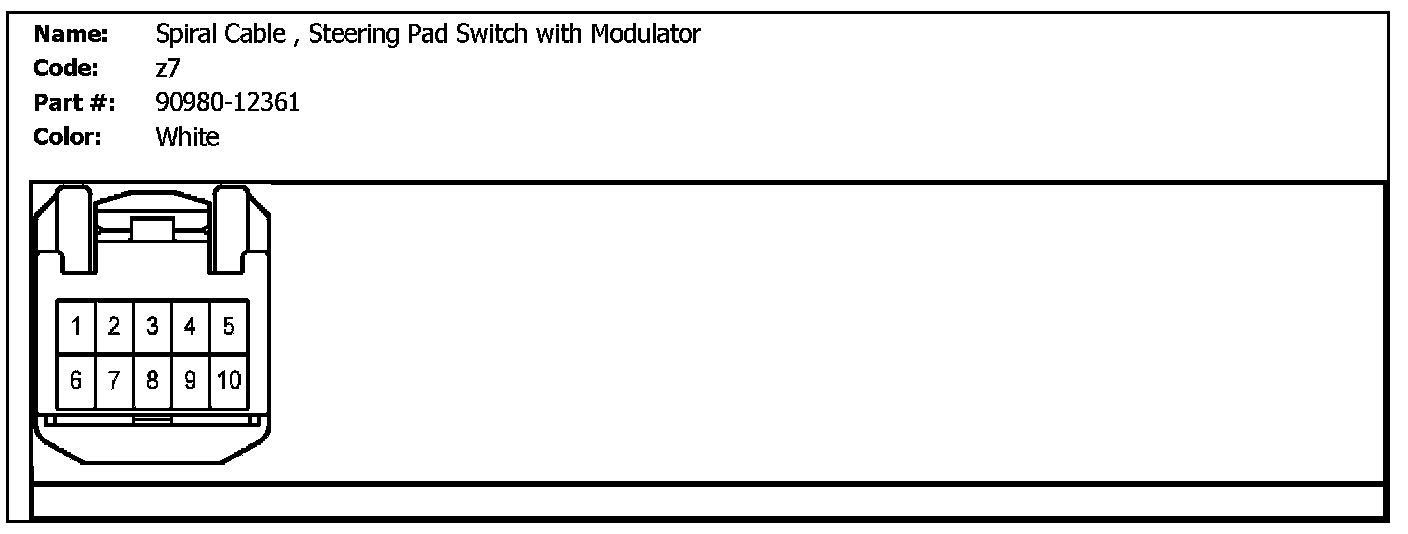

z7 (Spiral Cable, Steering Pad Switch With Modulator):

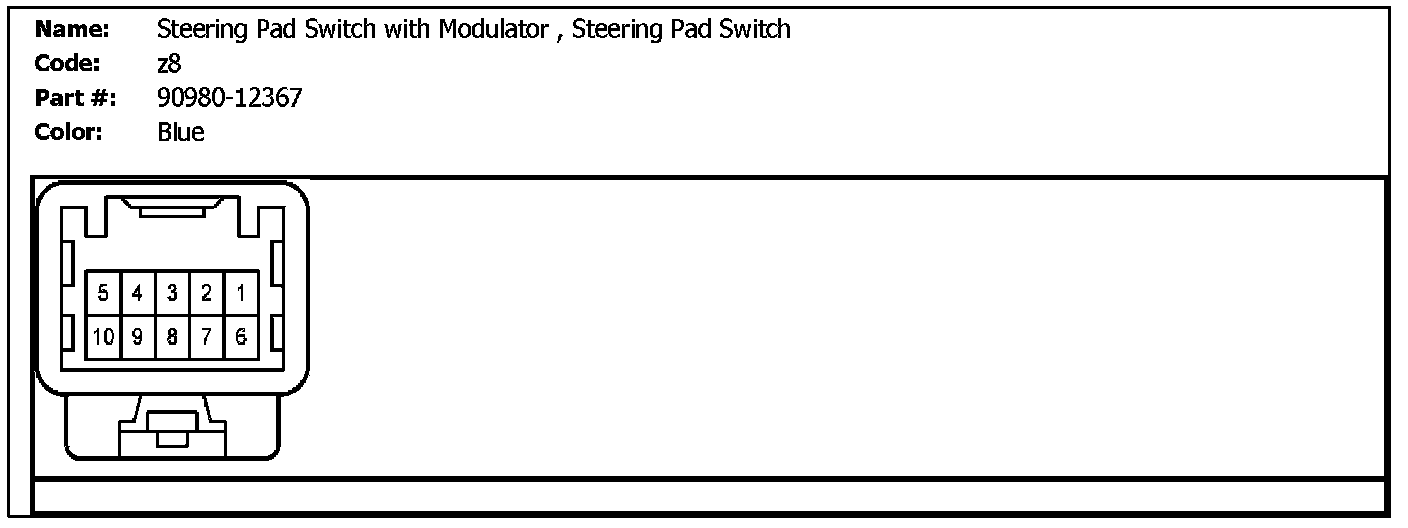

z8 (Steering Pad Switch With Modulator, Steering Pad Switch):
