Tail Lamp
Tail Lamp

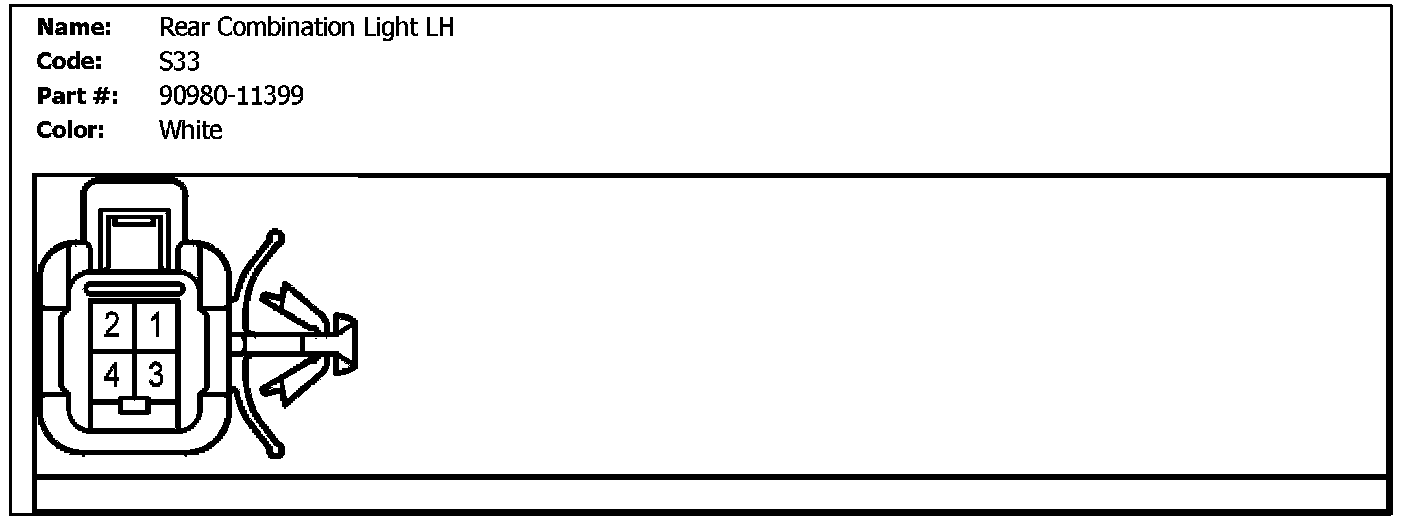

S33 (Rear Combination Light LH):

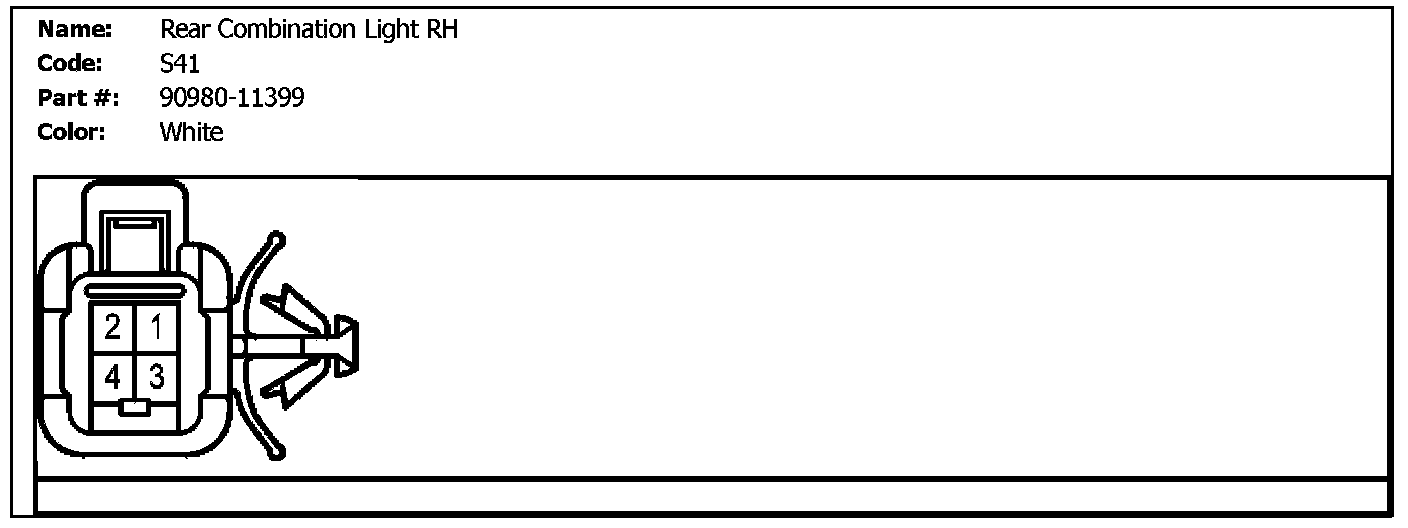

S41 (Rear Combination Light RH):

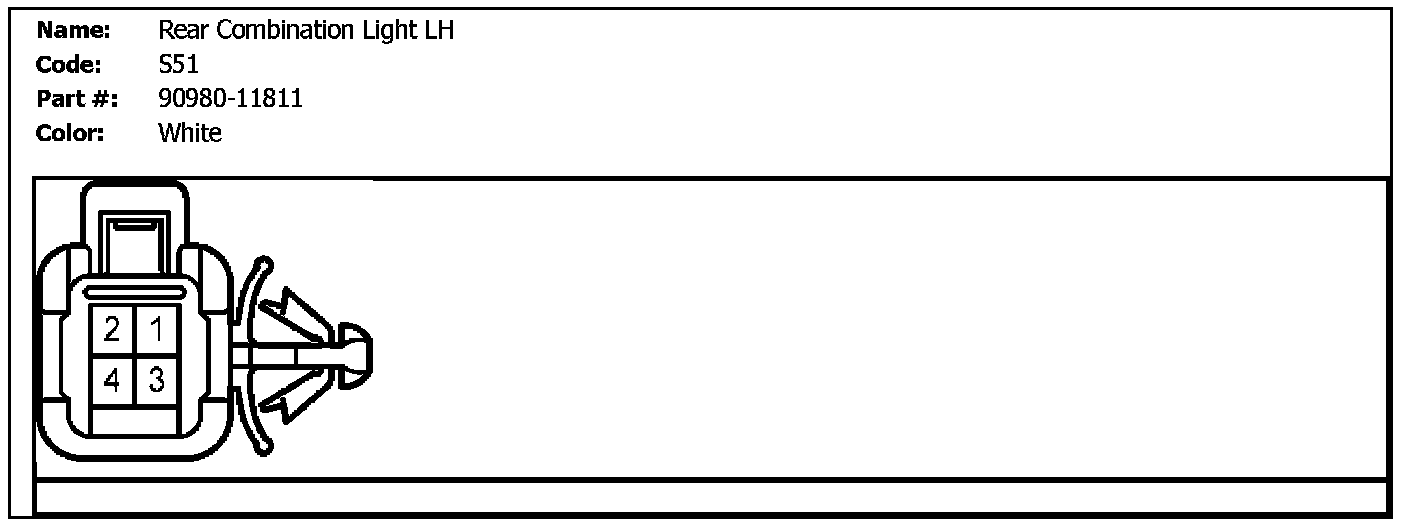

S51 (Rear Combination Light LH):

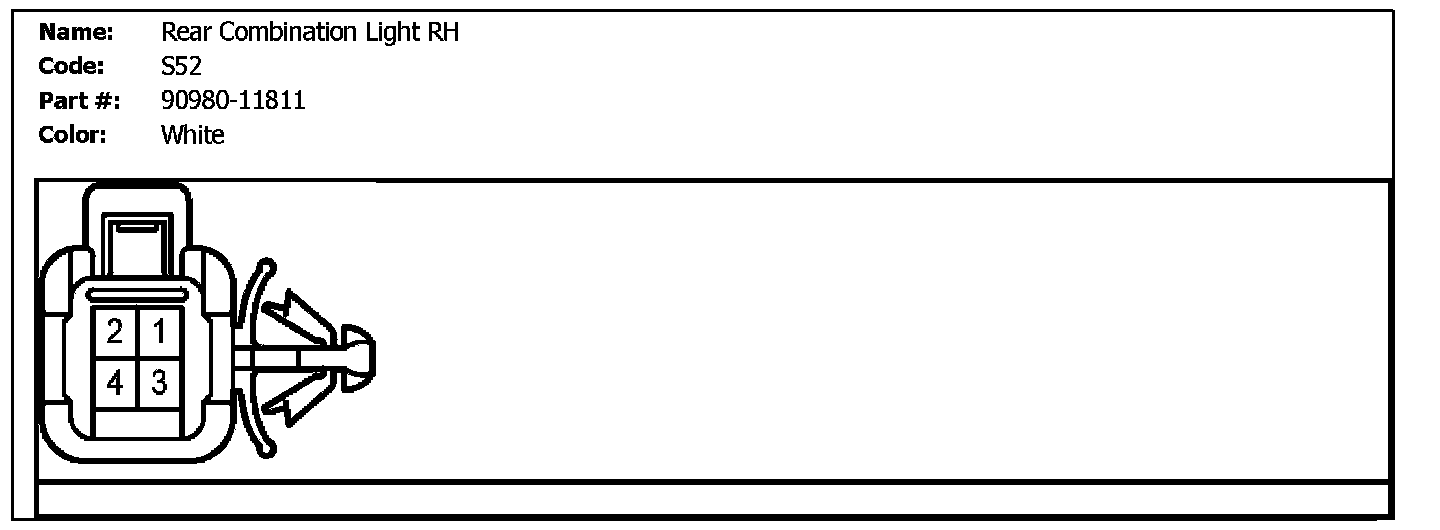

S52 (Rear Combination Light RH):
