Powertrain Management: Locations
1UR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION

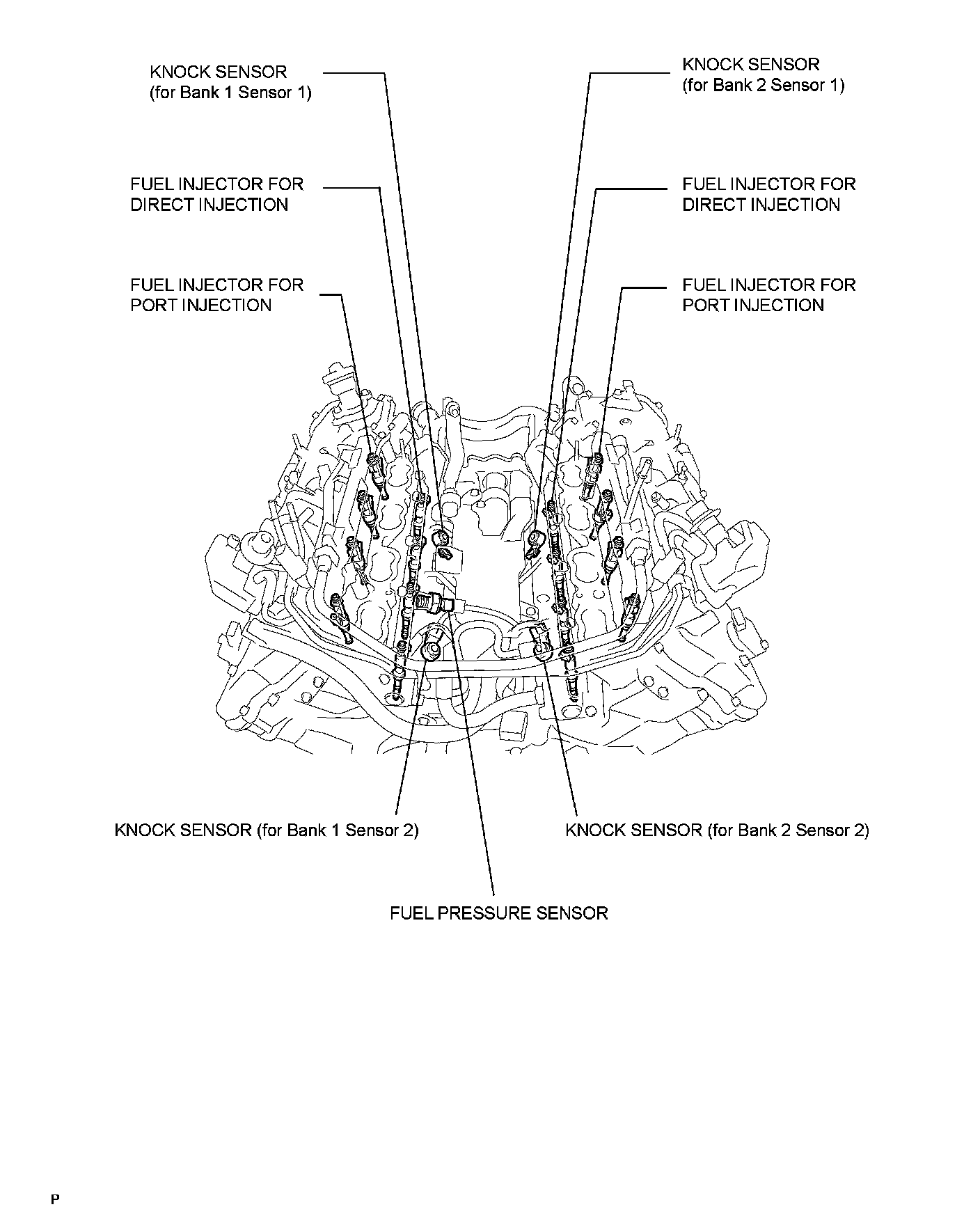

Engine: SFI System:

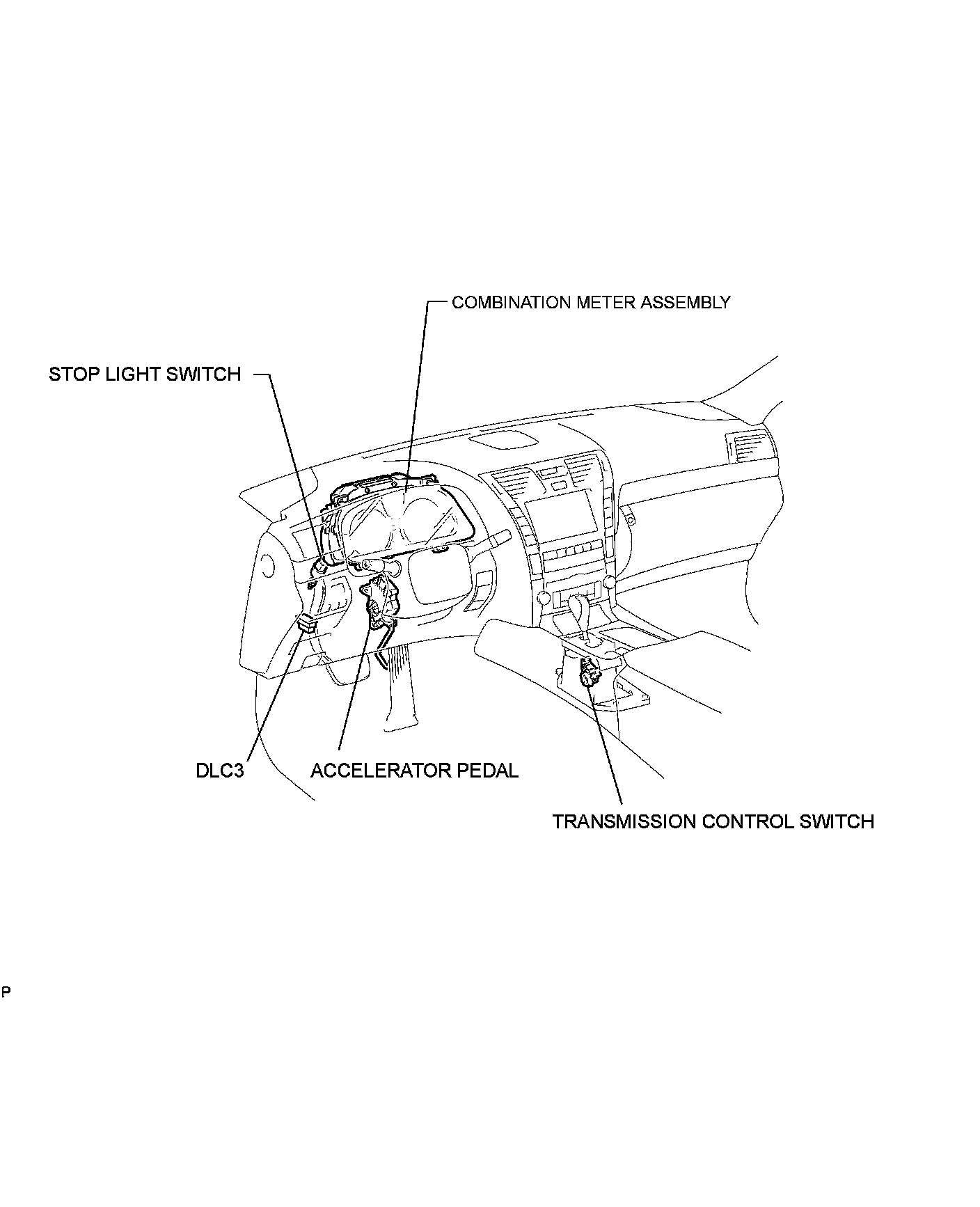

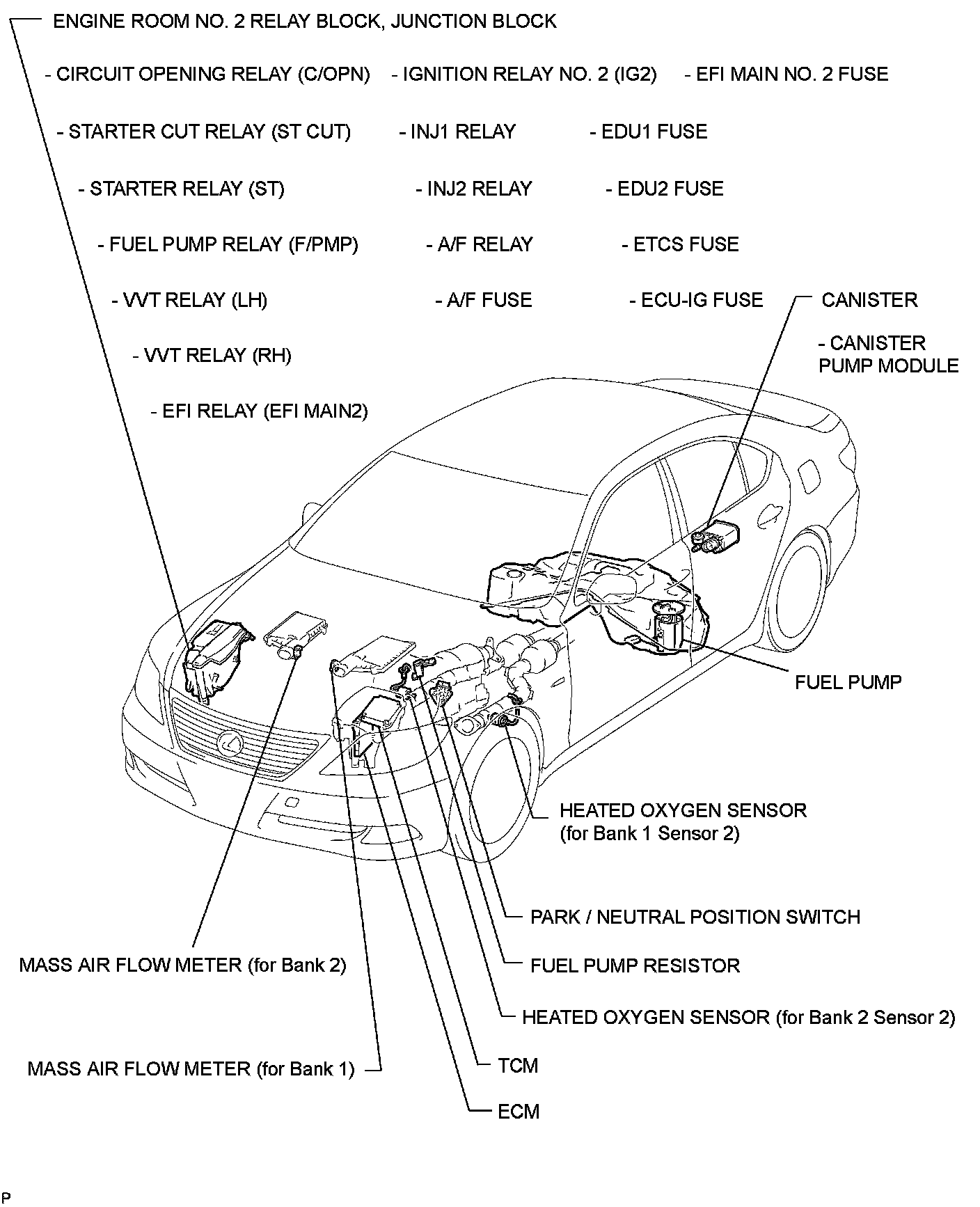

SFI System:

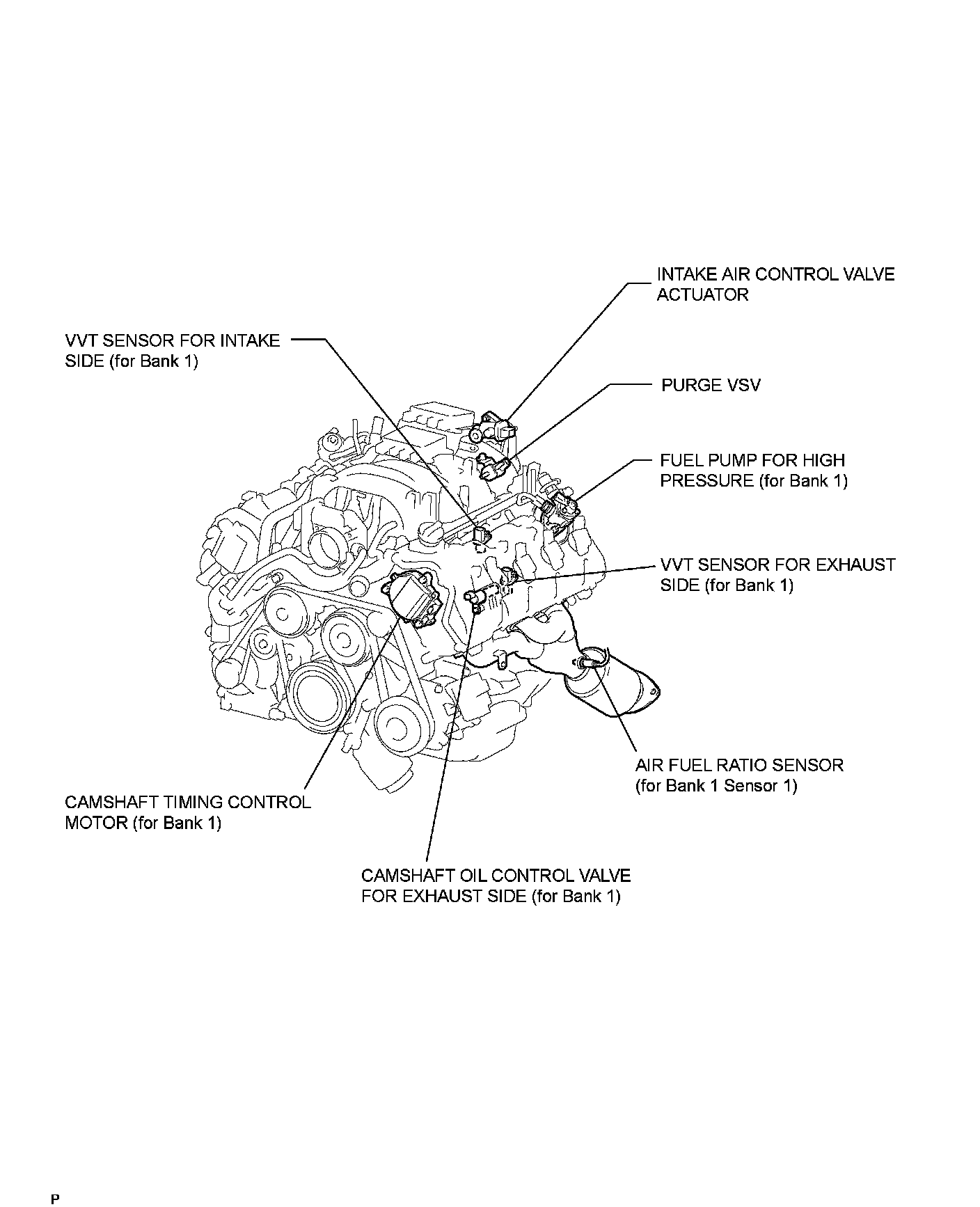

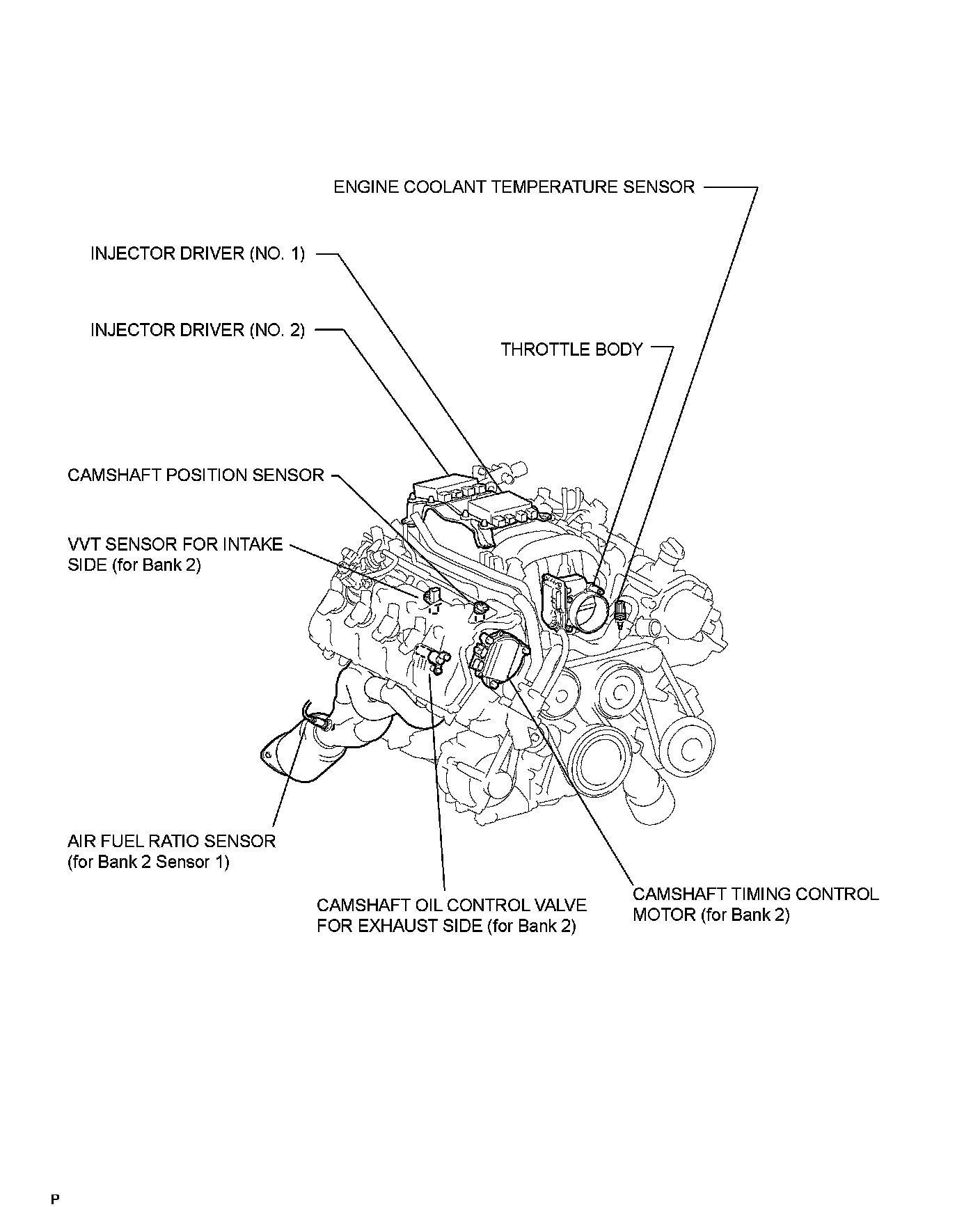

SFI System:
