Alignment








SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

SERVICE DATA

Front wheel alignment

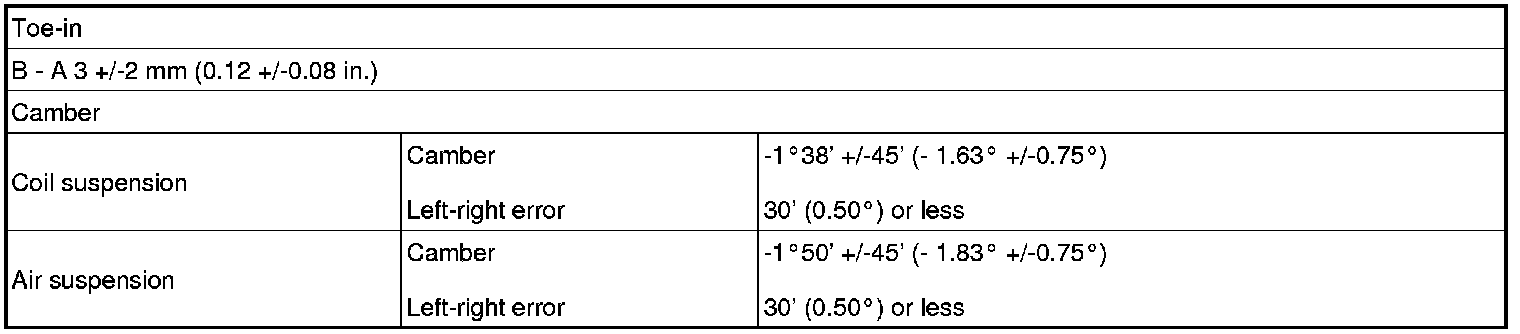

Rear wheel alignment

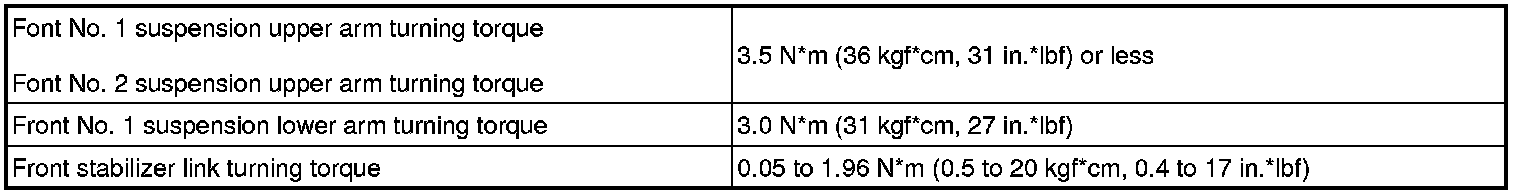

Front suspension

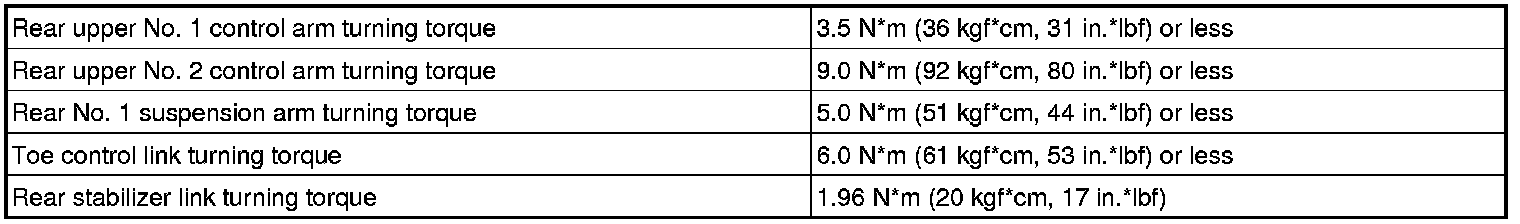

Rear suspension
