Pinout Values and Diagnostic Parameters

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

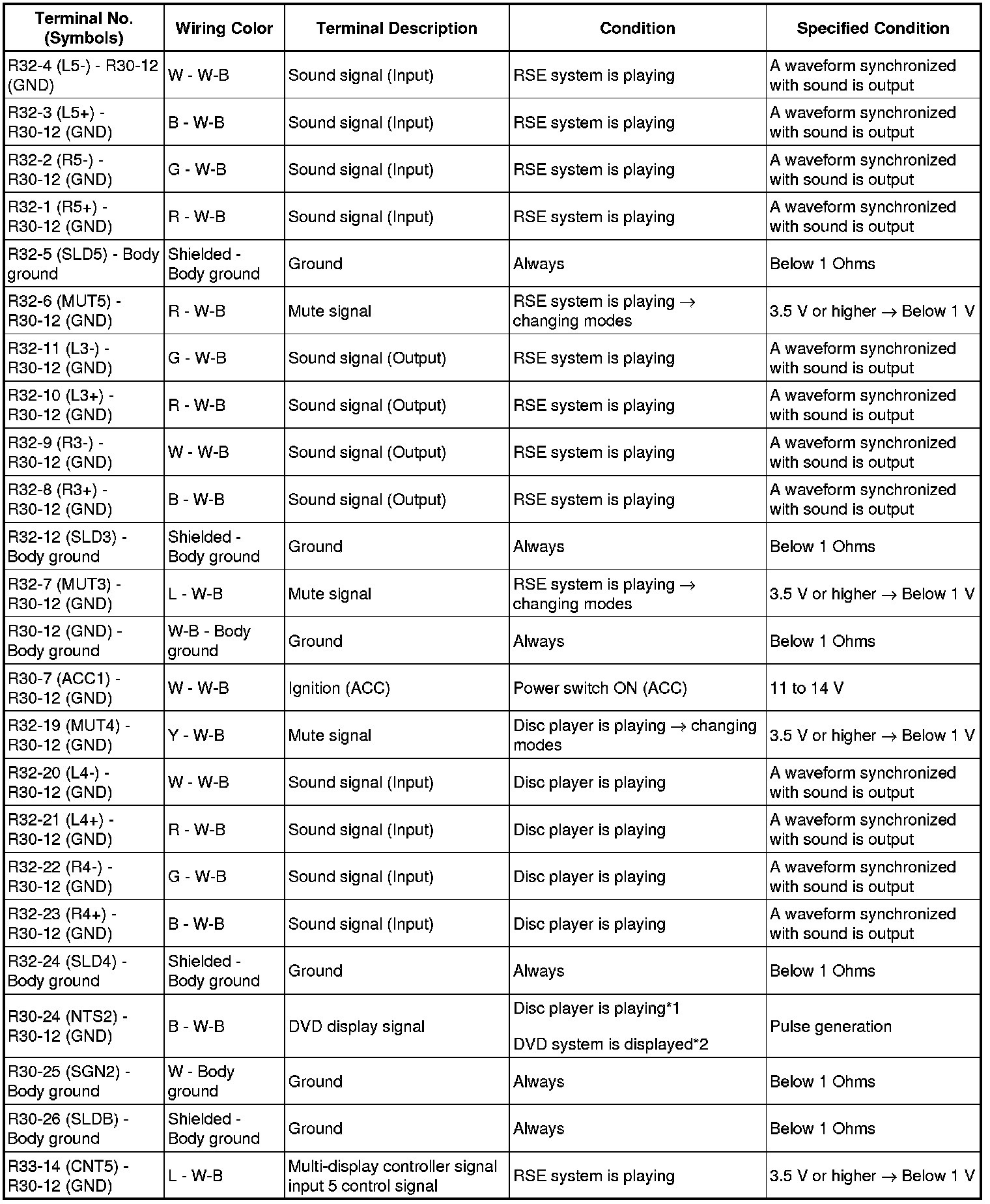

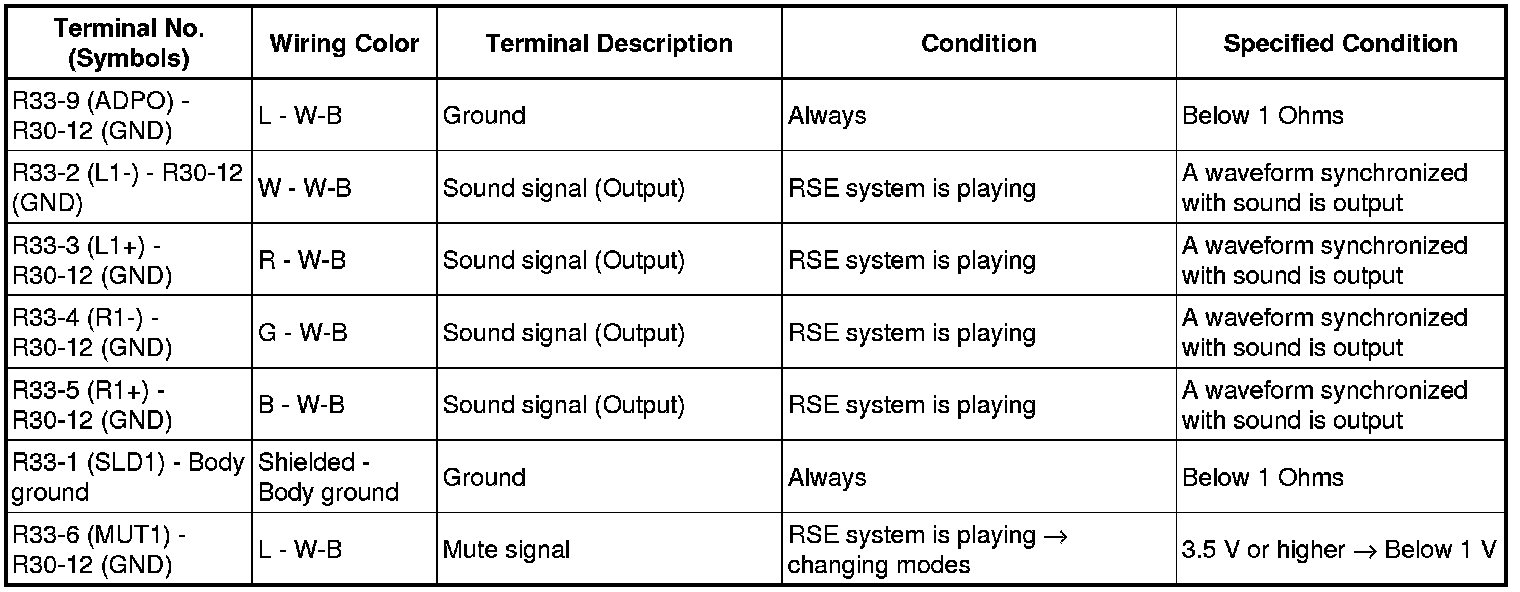

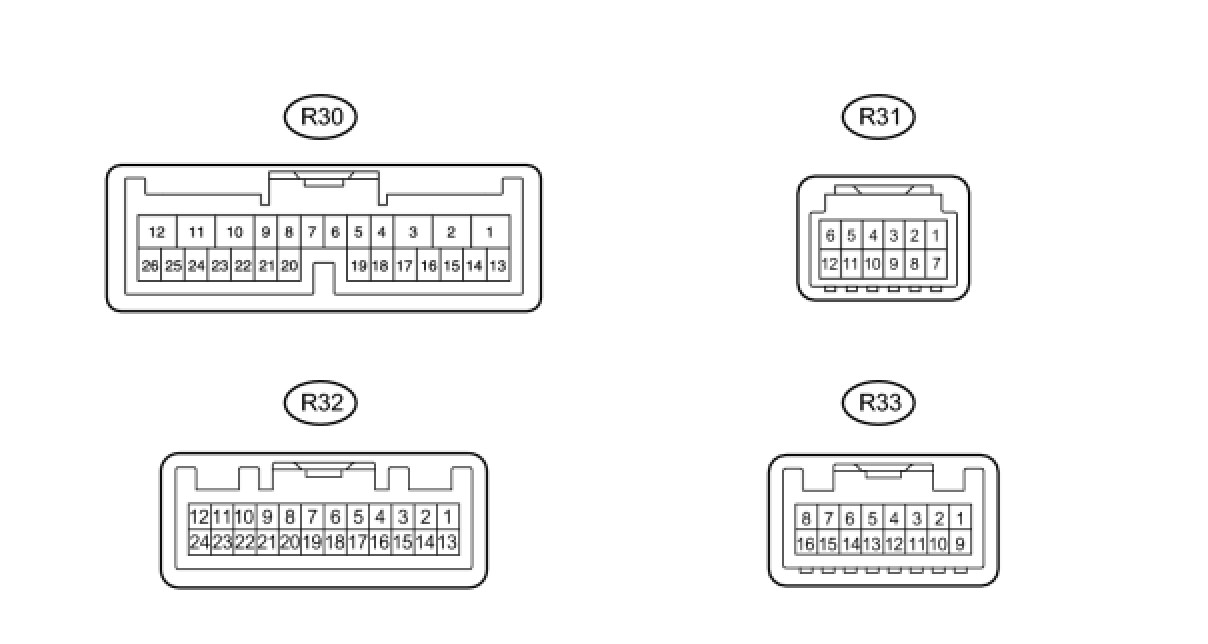

1. CHECK MULTI-DISPLAY CONTROLLER (RSE ECU)

















HINT: *: w/ Disc Player





(a) Using an oscilloscope, check the waveform.






2. CHECK TELEVISION DISPLAY ASSEMBLY









HINT: *1: w/ Advanced Parking Guidance System
*2: w/o Advanced Parking Guidance System





(a) Using an oscilloscope, check the waveform.






3. CHECK DISC PLAYER









HINT: #: There is no wire color information.

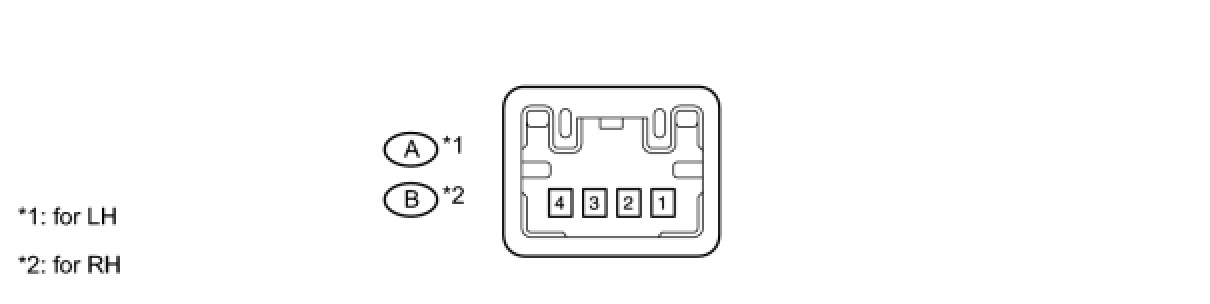

4. CHECK HEADPHONE TERMINAL









HINT: #: There is no wire color information.

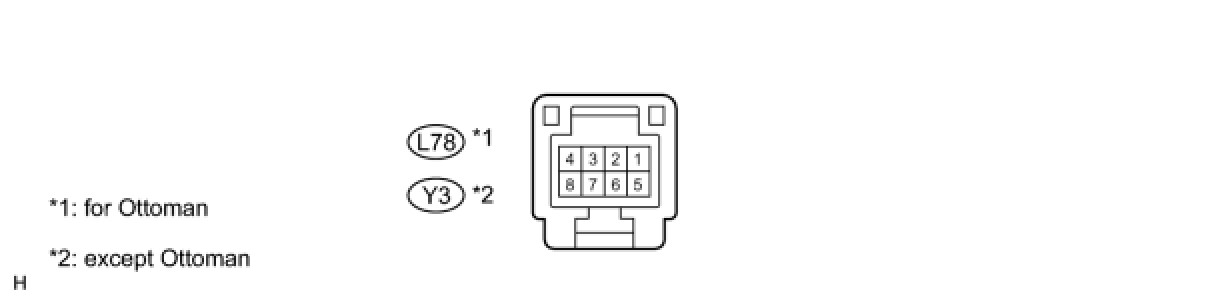

5. CHECK VTR TERMINAL









HINT: *1: w/ Ottoman
*2: w/o Ottoman

6. CHECK RADIO RECEIVER Pinout Values and Diagnostic Parameters

7. CHECK MULTI-DISPLAY Pinout Values and Diagnostic Parameters
