Installation

BRAKE CONTROL: BRAKE CONTROL POWER SUPPLY: INSTALLATION

INSTALLATION
NOTE: While the battery is connected, even if the power switch is OFF, the brake control system activates when the brake pedal is depressed or the door courtesy switch turns on. Therefore during servicing of the brake system components, do not operate the brake pedal or open/close the doors while the battery is connected.

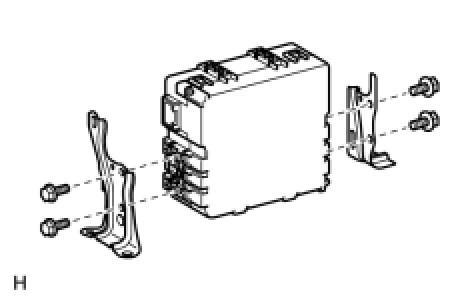

1. INSTALL NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET






(a) Install the 2 brackets with the 4 bolts.
Torque: 8.5 Nm (87 kgf-cm, 75 in-lbf)
NOTE: Do not drop the brake control power supply. If the brake control power supply has been dropped replace the brake control power supply with a new one.

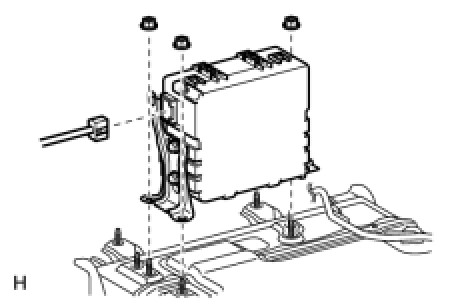

2. INSTALL BRAKE CONTROL POWER SUPPLY ASSEMBLY






(a) Connect the connector.
(b) Install the brake control power supply with the 3 nuts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
3. INSTALL POWER STEERING CONVERTER ASSEMBLY Installation

4. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH Battery

5. INSTALL REAR FLOOR FINISH PLATE

6. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

7. INSTALL NO. 1 COOLER COVER (w/ Rear Cooler) Installation

8. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

9. INSTALL DECK TRIM SIDE BOARD RH

10. INSTALL ROPE HOOK ASSEMBLY

11. INSTALL ROPE HOOK

12. INSTALL SERVICE PLUG GRIP Installation

13. INSTALL BATTERY SERVICE HOLE COVER

14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

15. INSTALL BATTERY SERVICE HOLE COVER LH Battery

16. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

17. CHECK AND CLEAR DTC
(a) Check and clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
