AIR CONDITIONING: AIR CONDITIONING SYSTEM: SYSTEM DIAGRAM

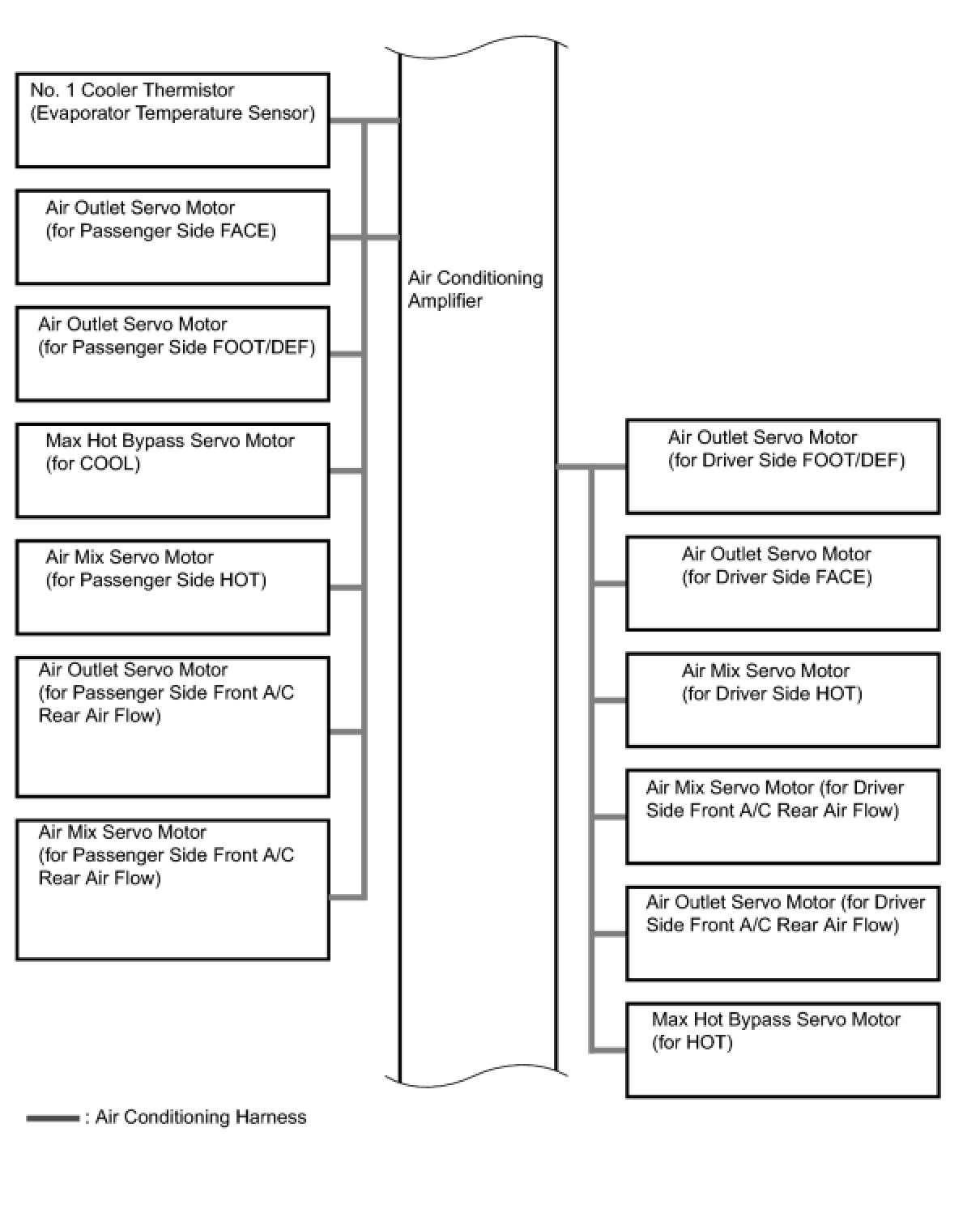

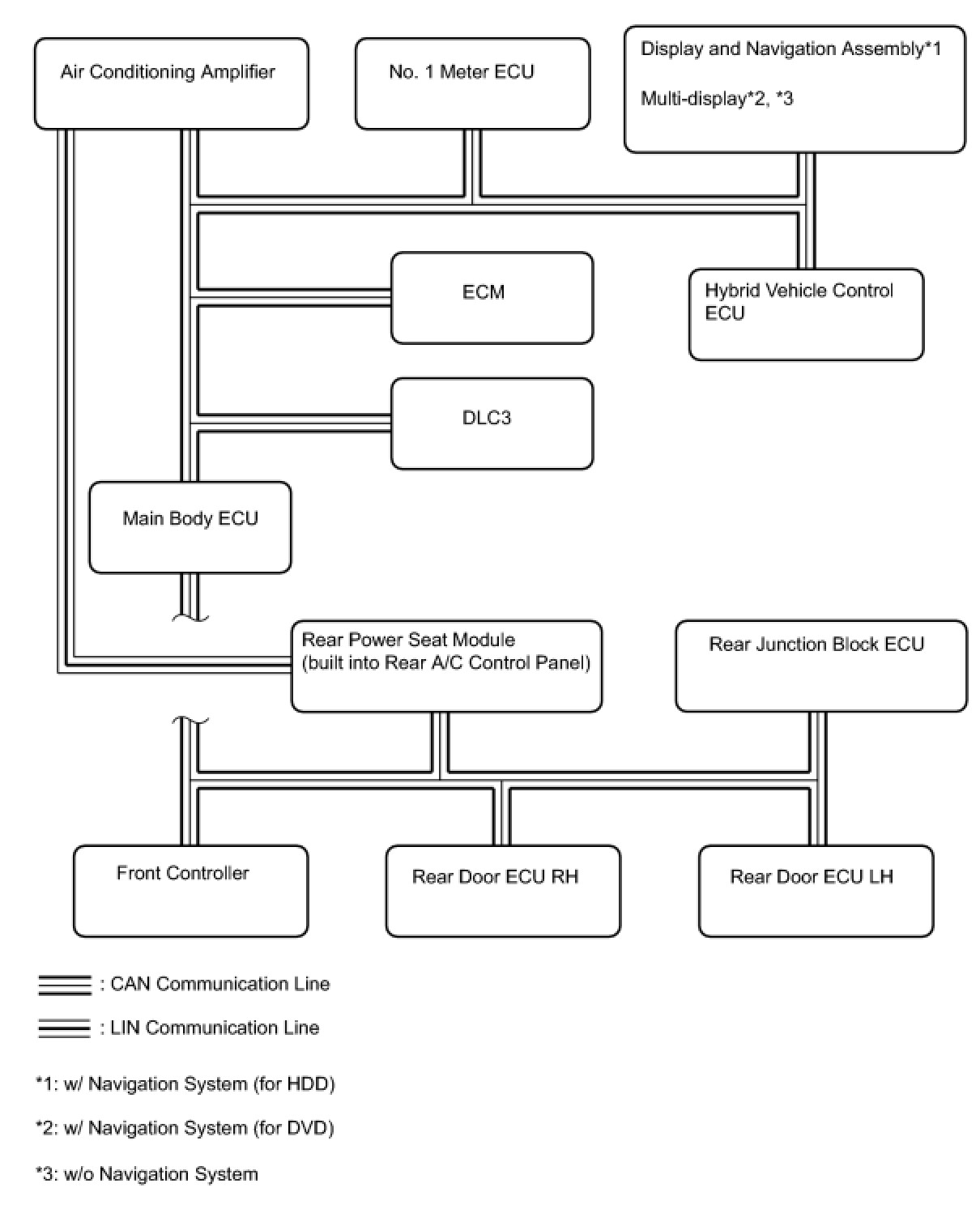

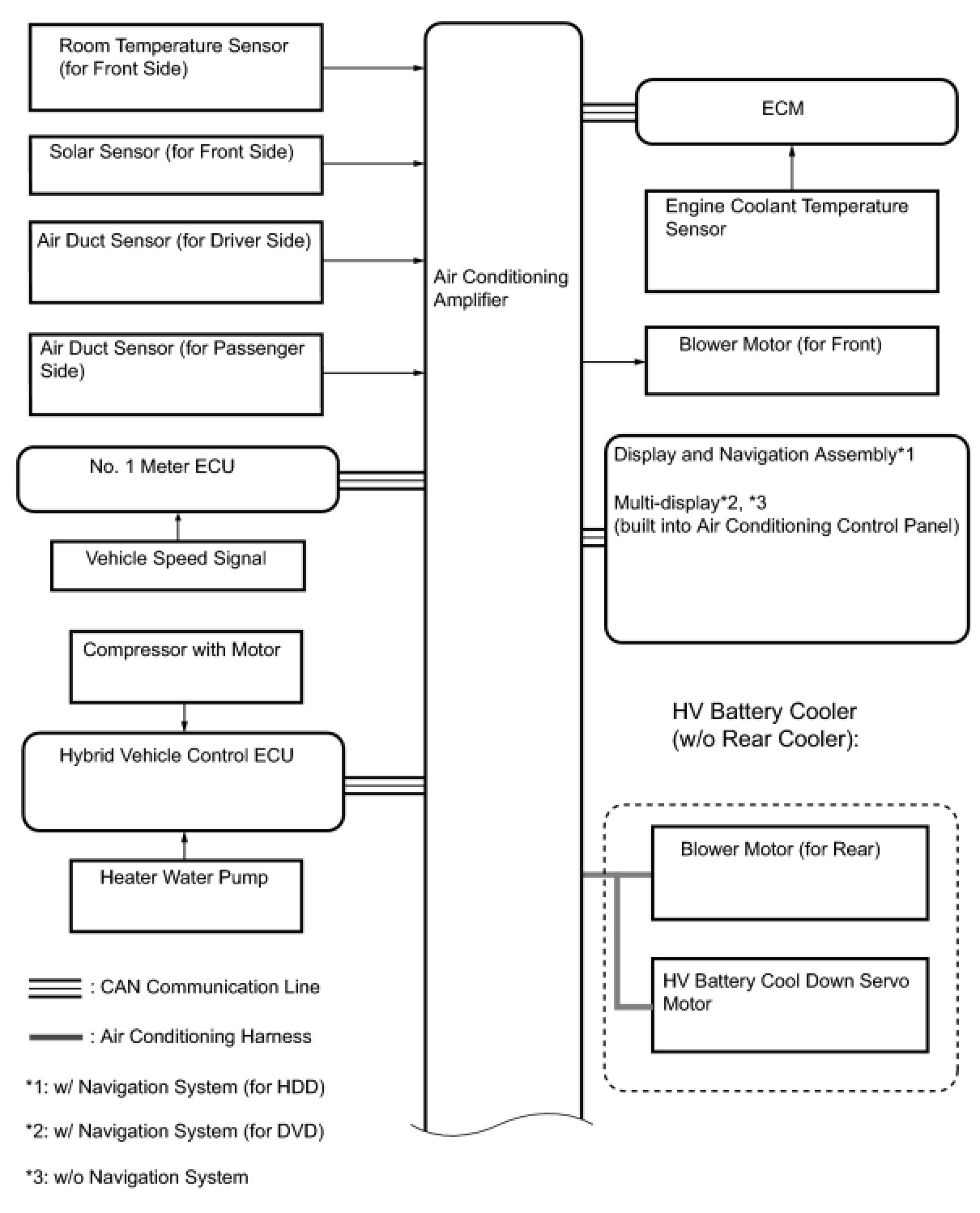

SYSTEM DIAGRAM

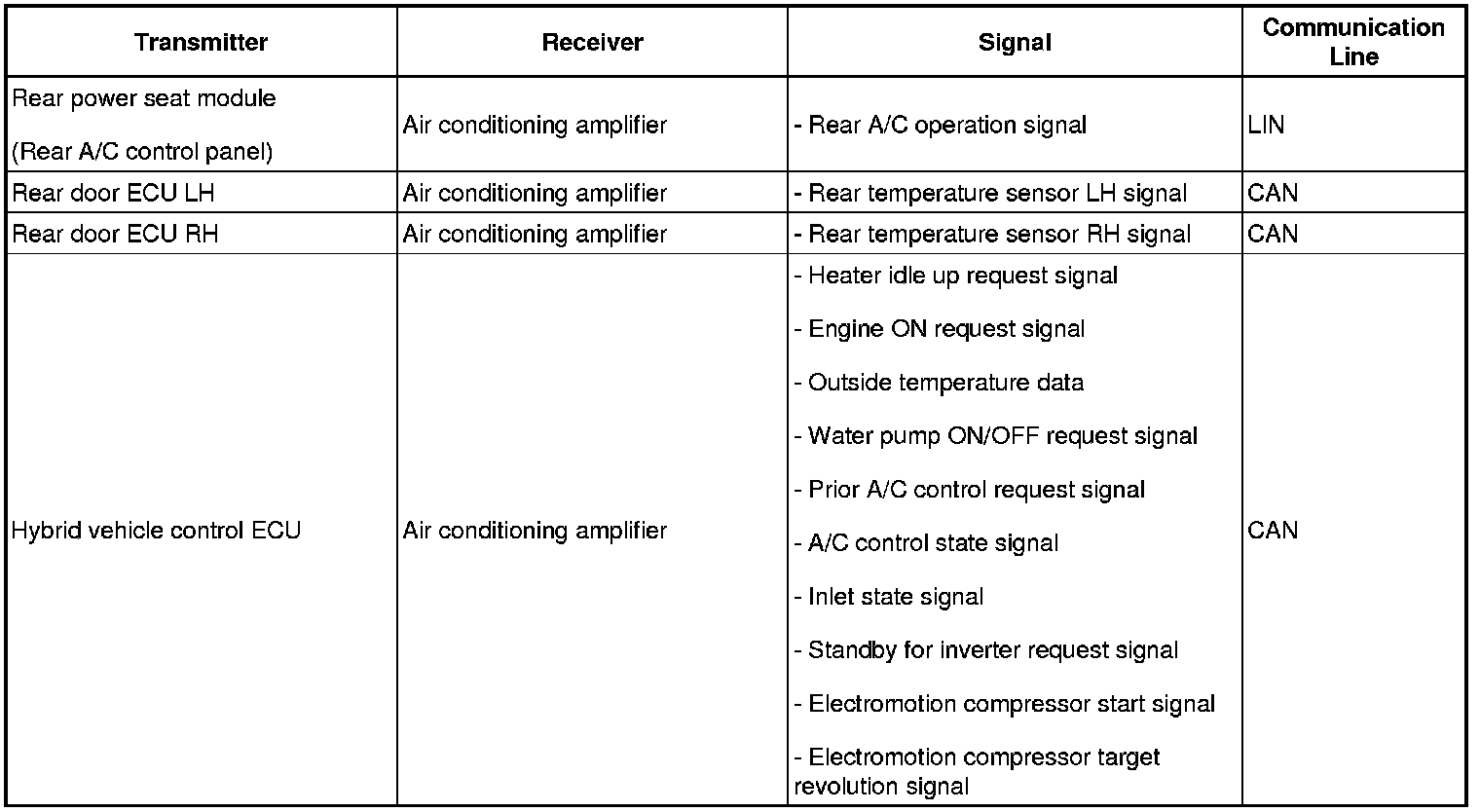

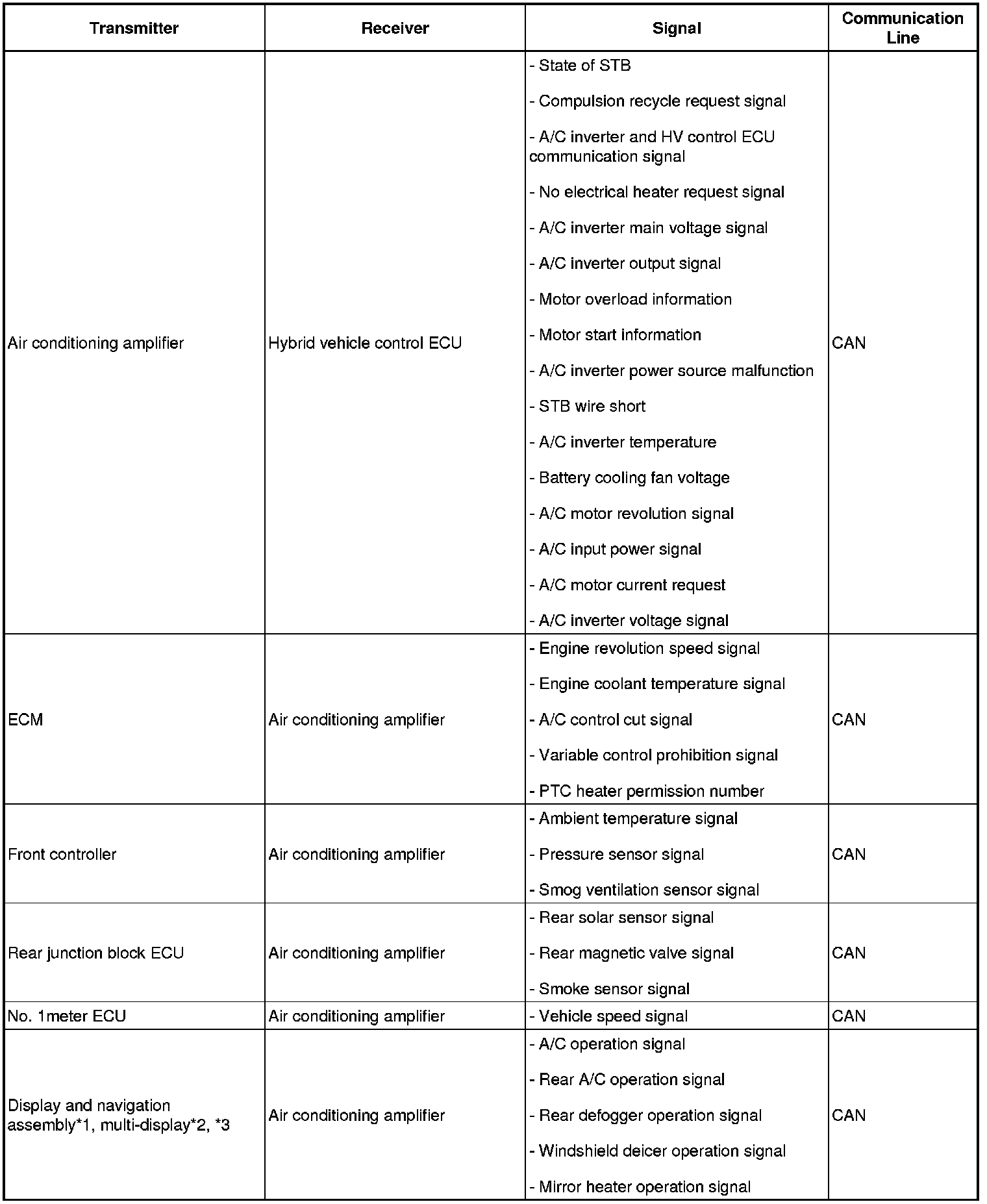

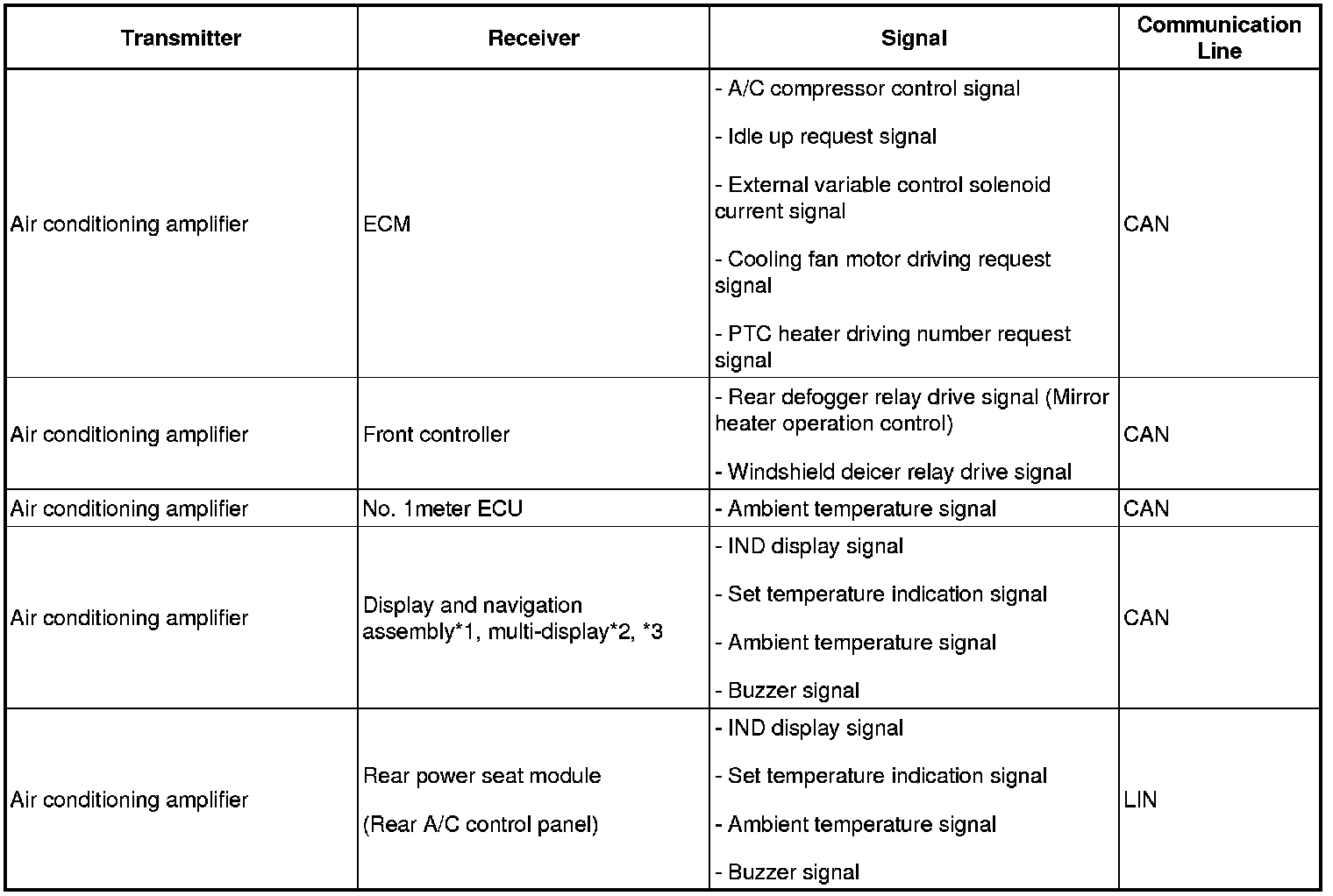

Communication table













HINT:
- *1: w/ Navigation System (for HDD)
- *2: w/ Navigation System (for DVD)
- *3: w/o Navigation System
