LS 600h V8-5.0L (2UR-FSE) Hybrid
>>
Repair and Diagnosis
>>
Hybrid Drive Systems
>>
Power Control System
>>
Voltage Inverter
>>
Diagrams
Voltage Inverter: Diagrams

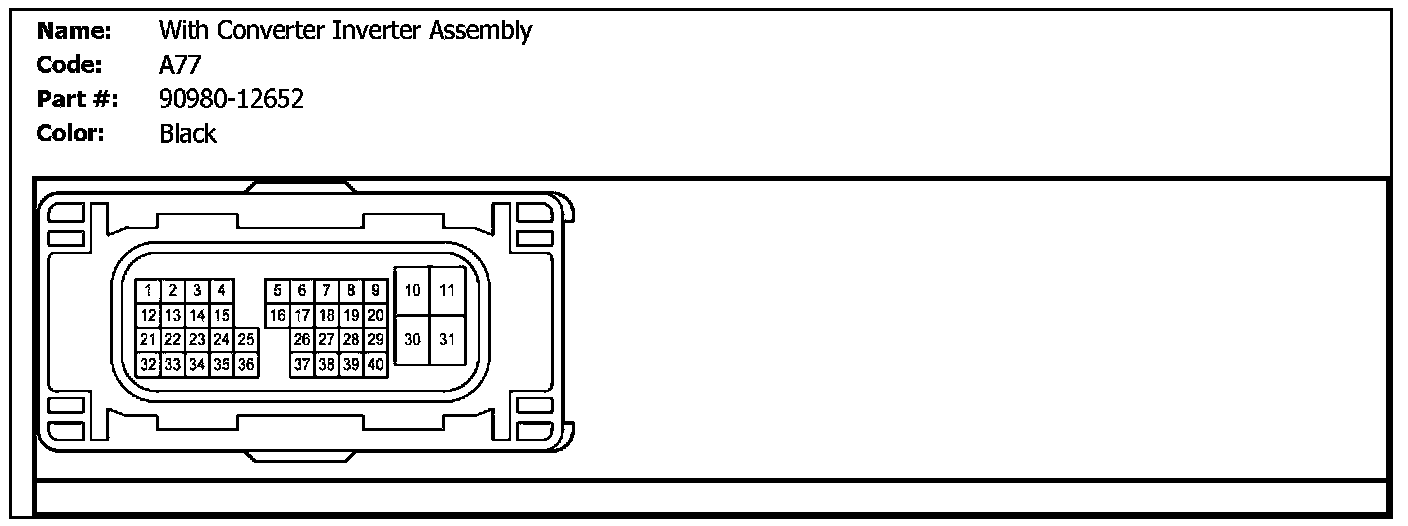

A77 (With Converter Inverter Assembly):

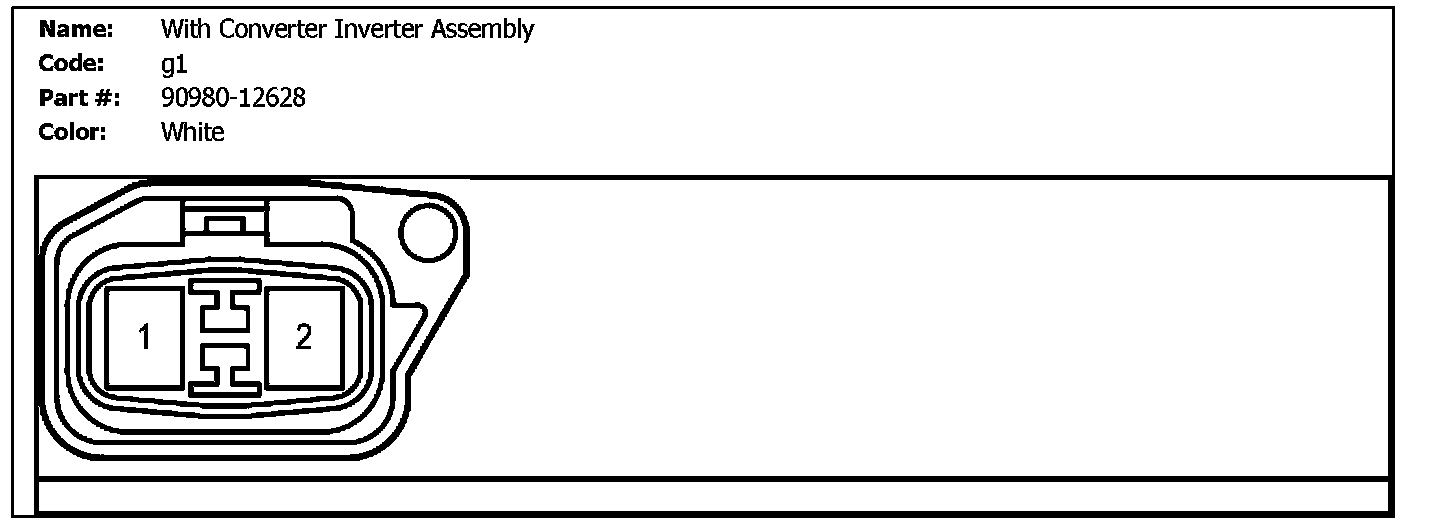

g1 (With Converter Inverter Assembly):

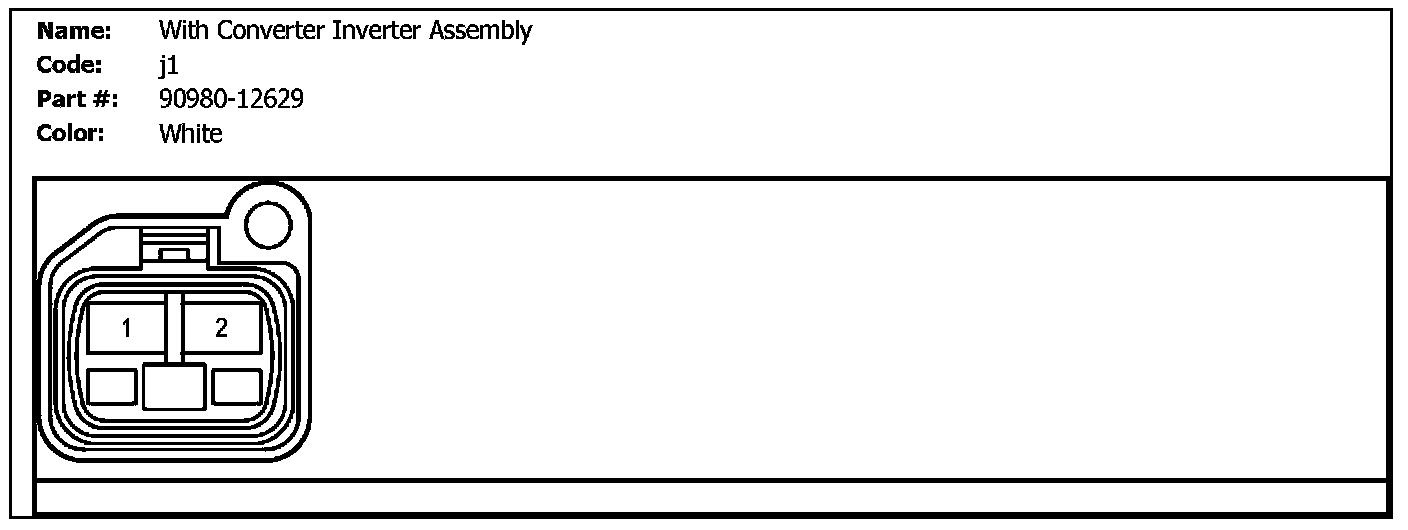

j1 (With Converter Inverter Assembly):
