Installation

METER: COMBINATION METER: INSTALLATION

INSTALLATION

1. INSTALL COMBINATION METER ASSEMBLY

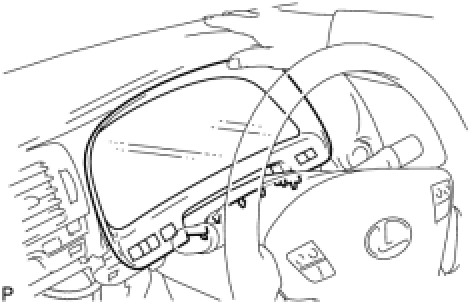

(a) Connect the connector.






(b) Install the combination meter with the 4 screws.
2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

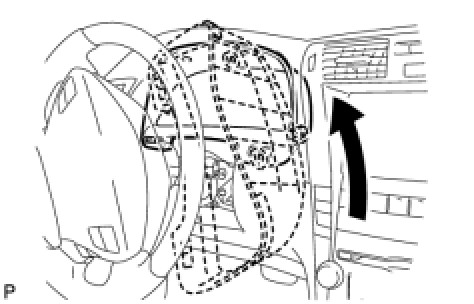

(a) Rotate the finish panel as shown in the illustration to install it.






(b) Hold the back of the trip switch on the finish panel with your right hand, and connect the connector with your left hand.






(c) Hold the back of the light control rheostat on the finish panel with your right hand, and connect the connector with your left hand.






(d) Insert the upper part of the finish panel into the instrument panel opening, and fix the center with your right hand.

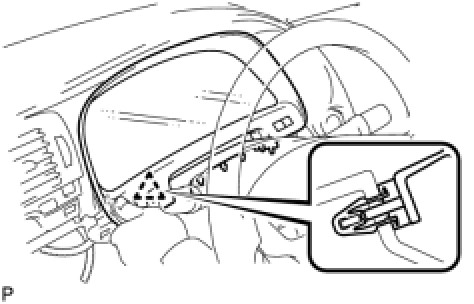

(e) Press up the lower right side of the finish panel to attach the clip.
NOTE: If the trip switch is pressed to attach the clip, the switch will be damaged.





(f) Press up the lower left side of the finish panel to attach the clip.
NOTE: If the light control rheostat switch is pressed to attach the clip, the switch will be damaged.





(g) Install the 2 clips.
3. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY Installation

4. INSTALL STEERING COLUMN COVER (w/o Driver Monitor Camera) Installation

5. INSTALL STEERING COLUMN COVER (w/ Driver Monitor Camera) Installation

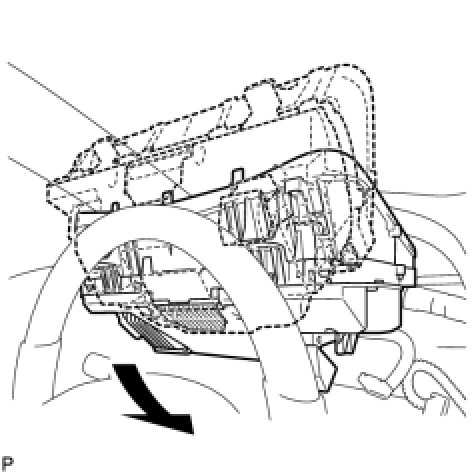

6. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY






(a) Connect the connectors.
(b) Attach the 5 clips and claw to install the safety pad.
(c) Install the 2 screws.






(d) Attach the claw to install the hole cover.
7. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING






(a) Attach the 2 clips to install the moulding.

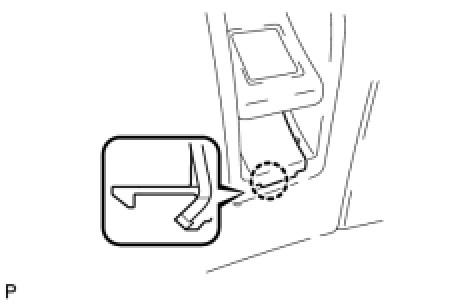

8. INSTALL INSTRUMENT SIDE PANEL LH






(a) Attach the 6 clips to install the side panel.
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
- Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter Repair Instruction - Customize Parameters.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

10. INSTALL BATTERY SERVICE HOLE COVER LH Battery

11. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
