System Diagram








2GR-FSE STARTING: SMART ACCESS SYSTEM WITH PUSH-BUTTON START: SYSTEM DIAGRAM

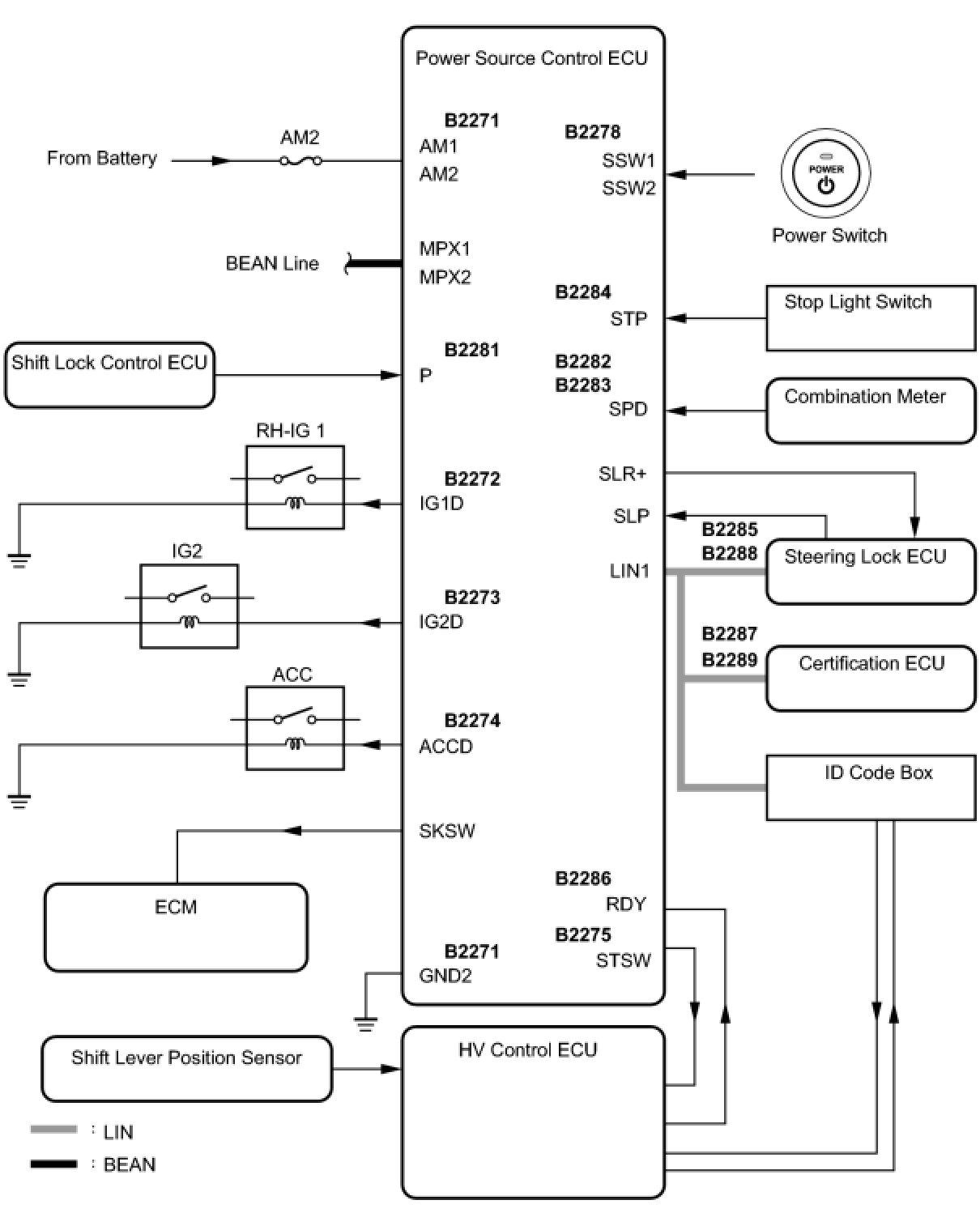

SYSTEM DIAGRAM

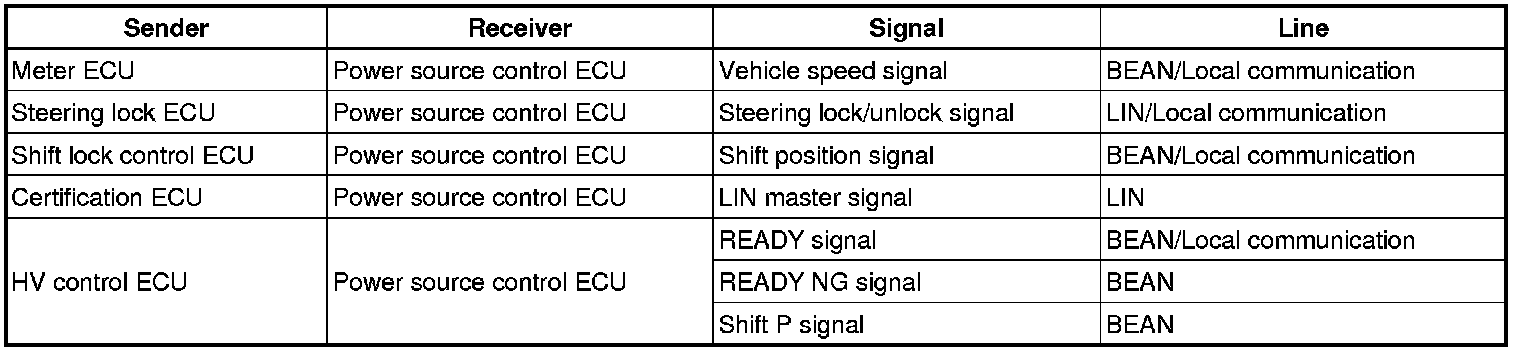

Communication table:
