Propeller Shaft

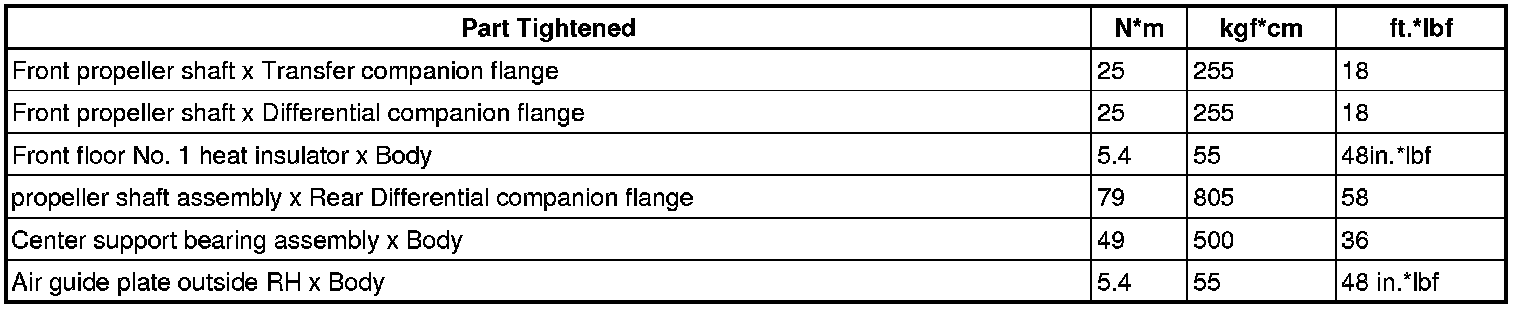

SERVICE SPECIFICATIONS: PROPELLER SHAFT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

for 4WD





for 2WD





( ) For use without SST
