Power Steering System
POWER ASSIST SYSTEMS: POWER STEERING SYSTEM

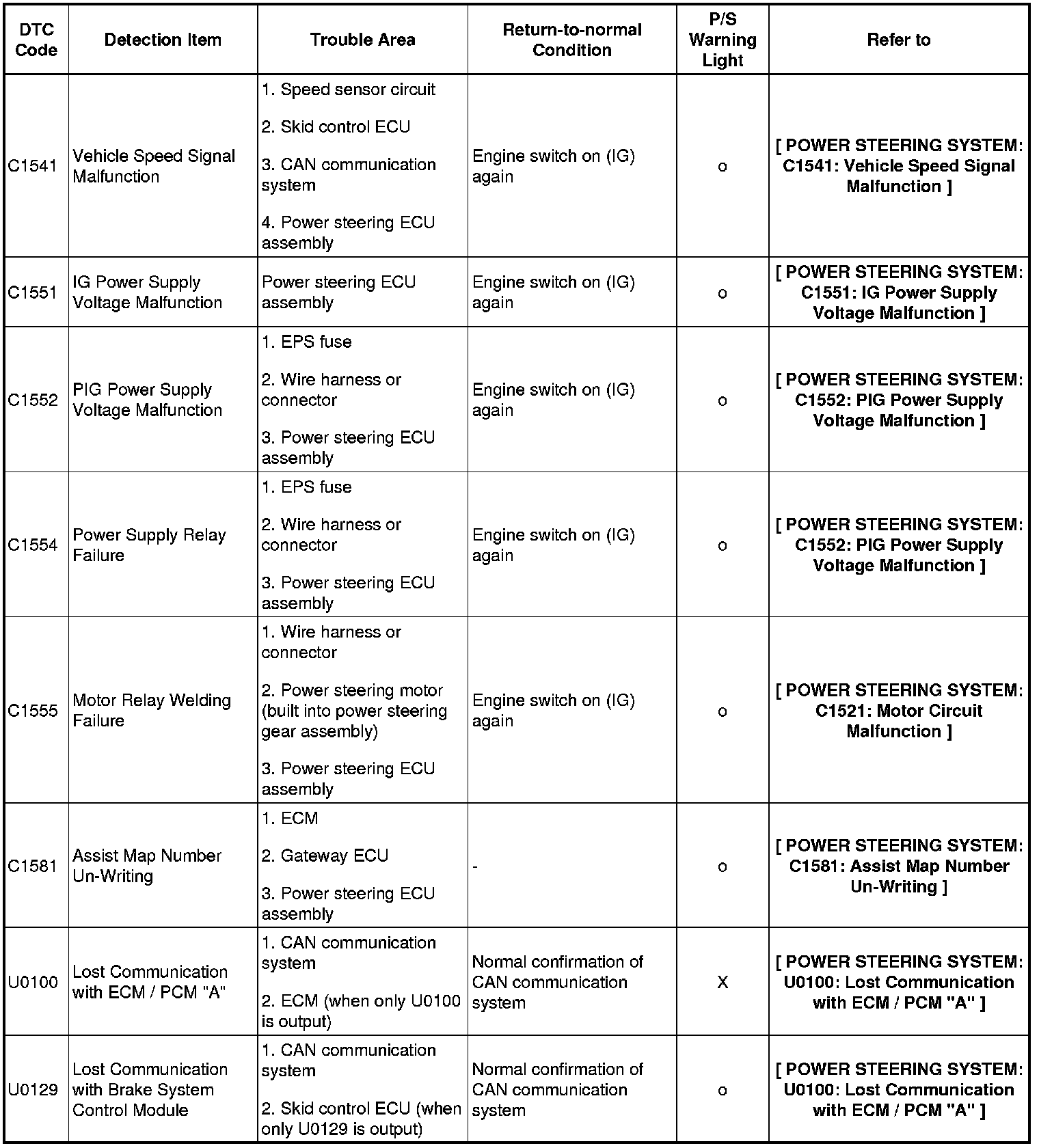

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the circuit listed for that code. For details of each code, refer to the respective procedure in the DTC chart.
Power Steering System
C1511-C1522:
C1523-C1534:
C1541-C1581 U0100-U0129:
HINT:
- o: Warning light comes on
- X: Warning light goes off (normal reset)
