Power Mirror Control System

MIRROR (EXT): POWER MIRROR CONTROL SYSTEM:

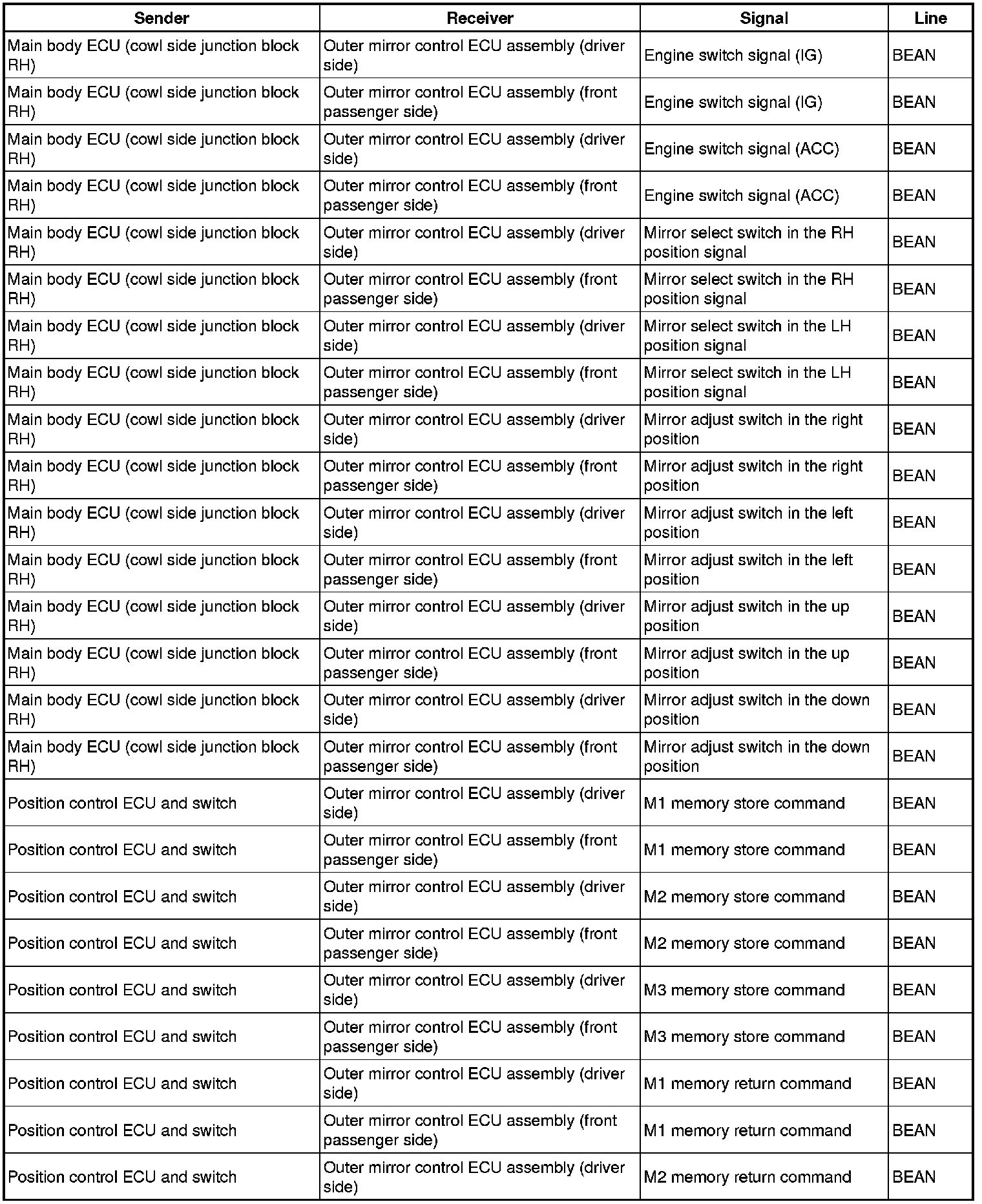

SYSTEM DIAGRAM

















SYSTEM DESCRIPTION

1. POWER MIRROR CONTROL SYSTEM DESCRIPTION
(a) This system has the following functions: automatic glare-resistant electrochromic (EC) mirror function, reverse shift-linked function, electrical remote control function, memory function and mirror heater function.

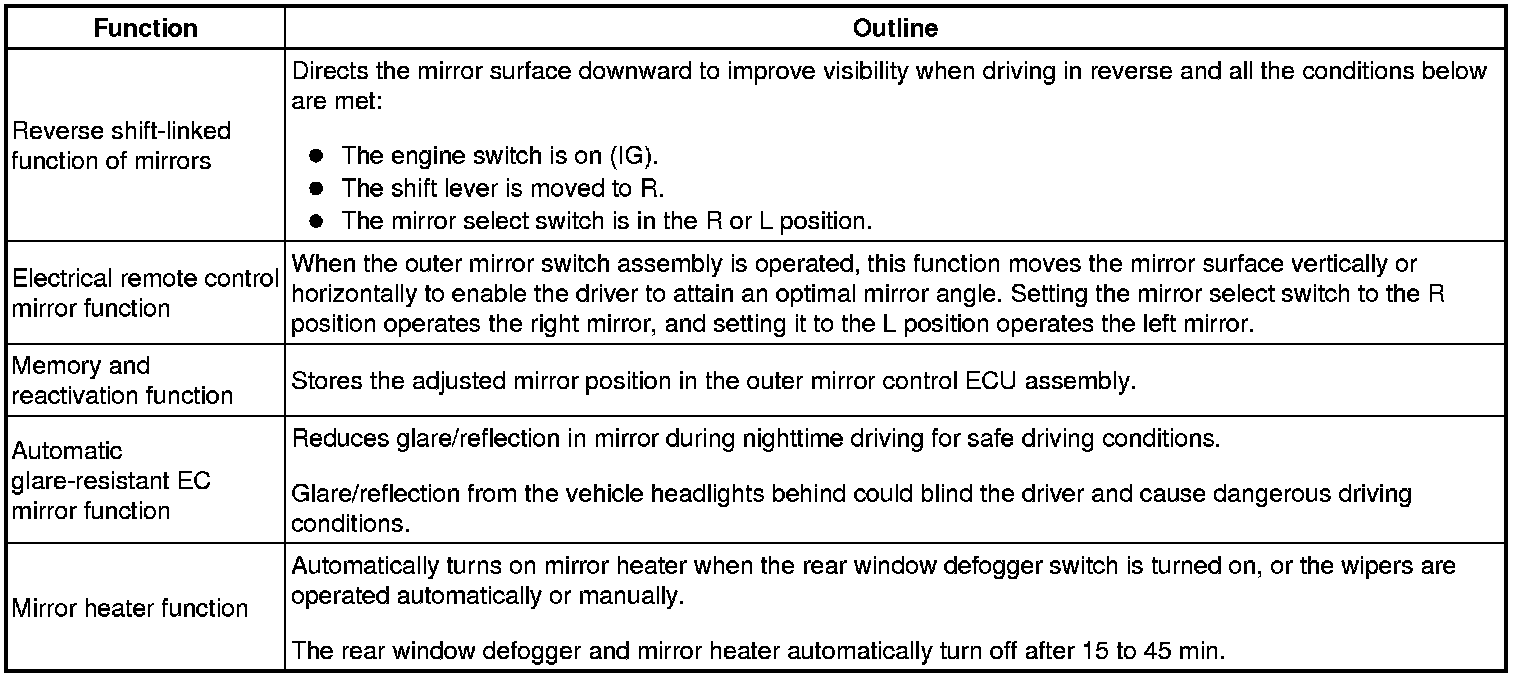

2. FUNCTION OF MAIN COMPONENT






3. SYSTEM OPERATION
(a) The remote control mirror has the following features.
