Sunroof / Moonroof: Description and Operation

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM:

SYSTEM DIAGRAM





Communication Table





SYSTEM DESCRIPTION

1. GENERAL
This system has the following functions: manual slide open and close; auto slide open and close; manual tilt up and down; auto tilt up and down; jam protection; key off operation; key-linked open and close; and transmitter-linked open.

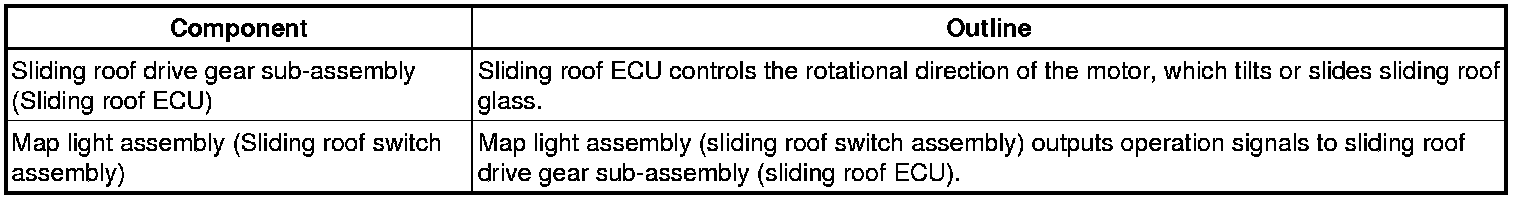

2. FUNCTION OF MAIN COMPONENT

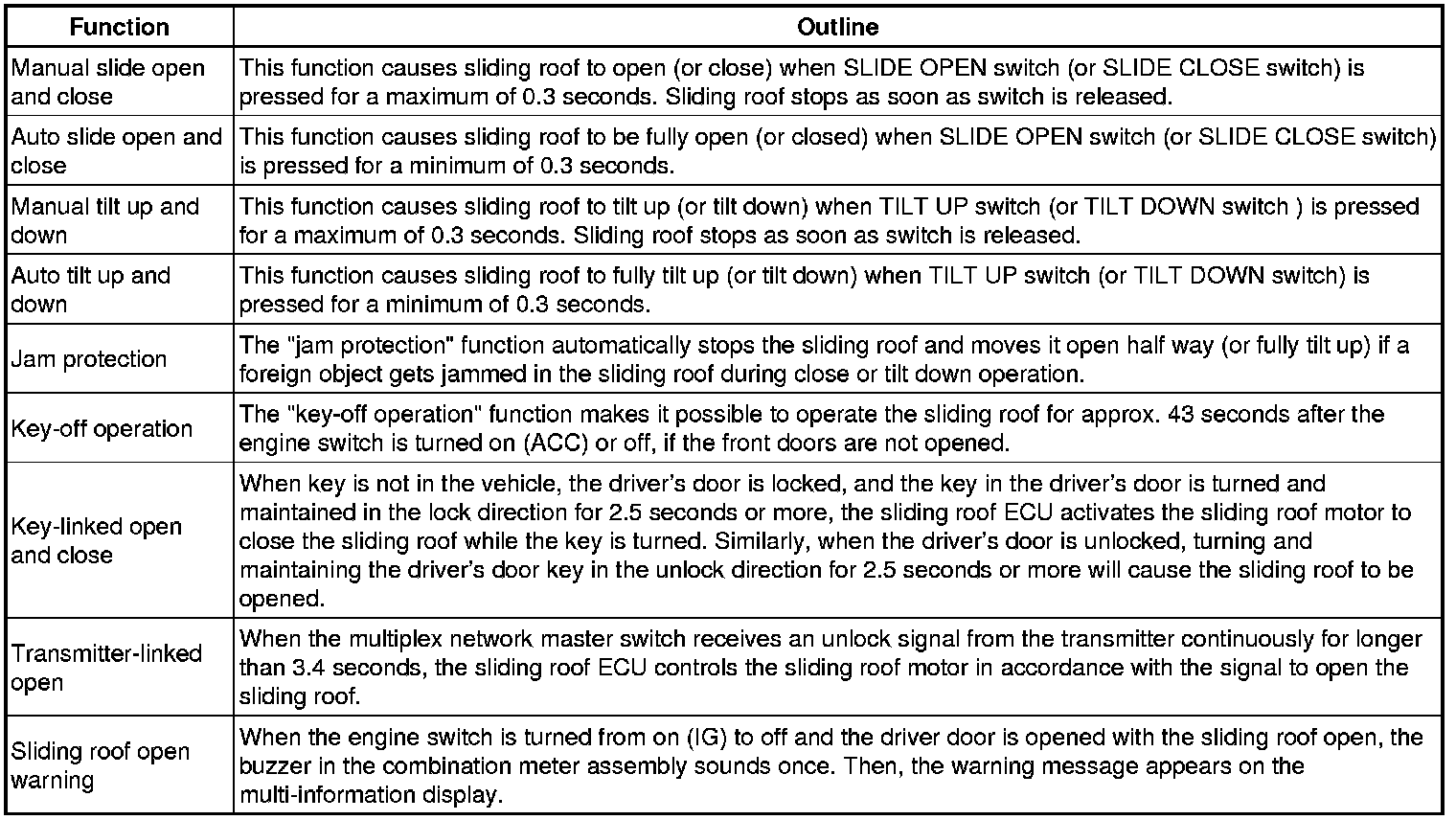

3. SYSTEM OPERATION
The sliding roof has the following features.
