Service Data













SPECIFICATIONS: SERVICE DATA

BRAKE (FRONT)

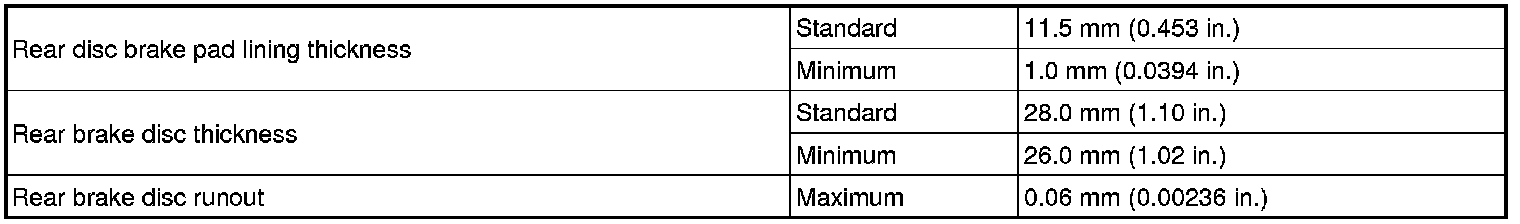

BRAKE (REAR)

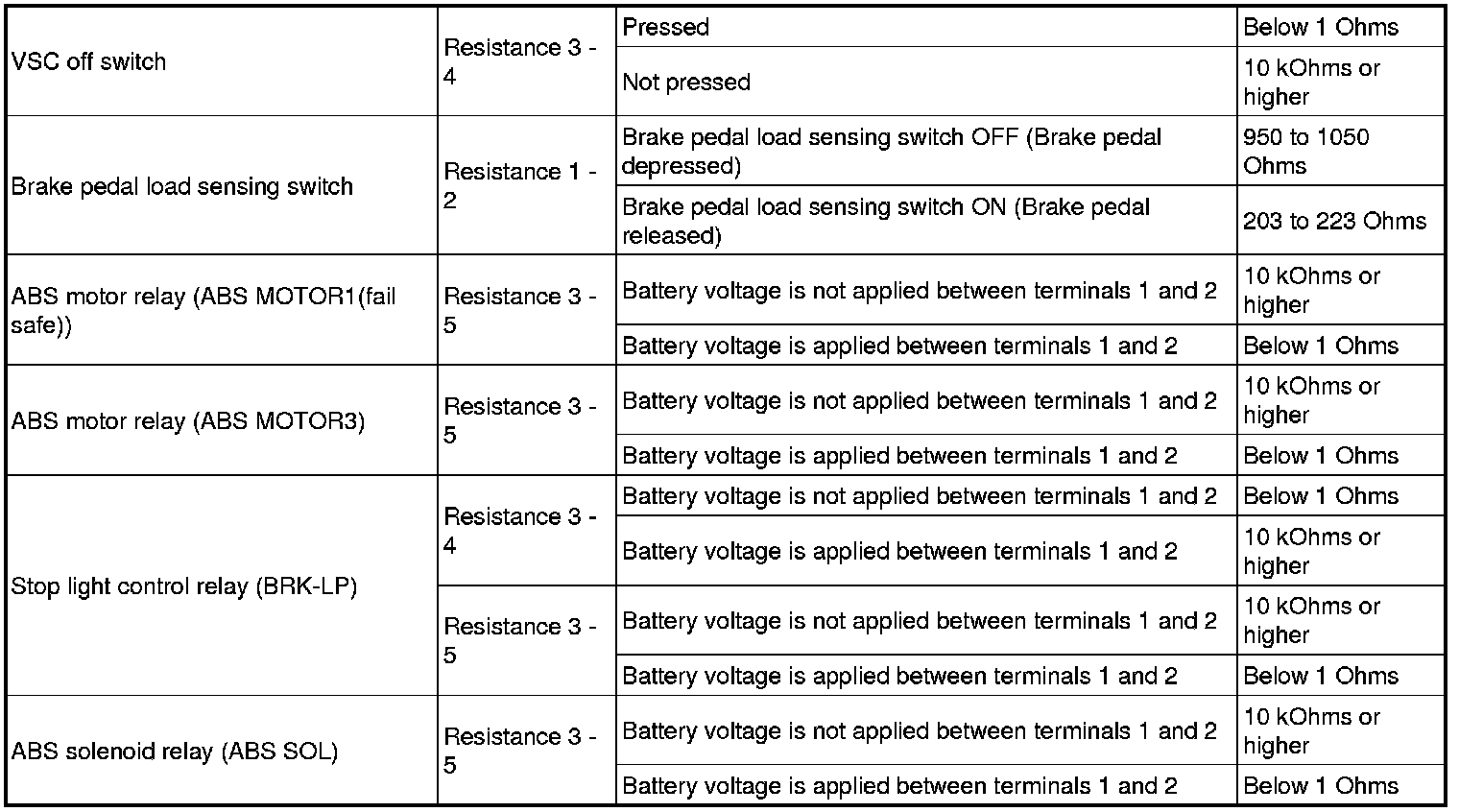

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS

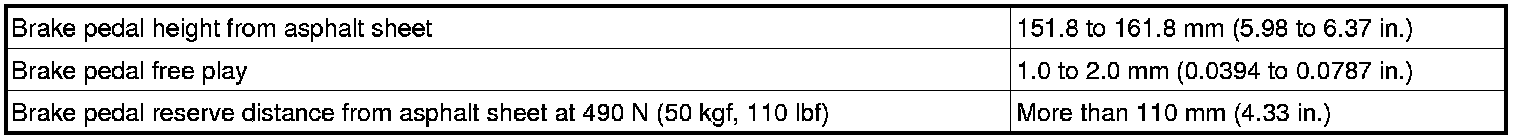

BRAKE SYSTEM (OTHER)
