Lexus
>>
2009
>>
IS F V8-5.0L (2UR-GSE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Locations
>>
Interior Lighting System
Interior Lighting System

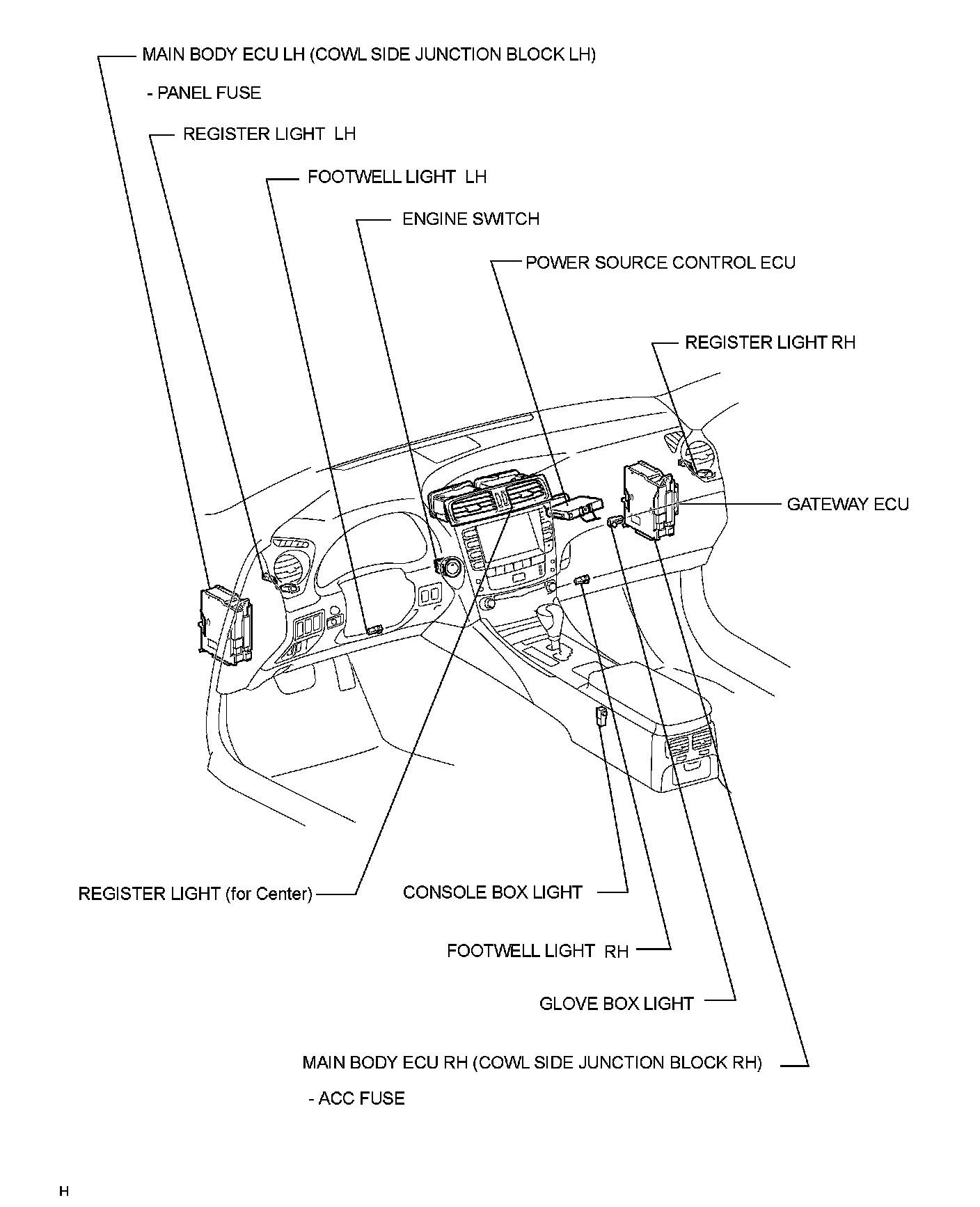

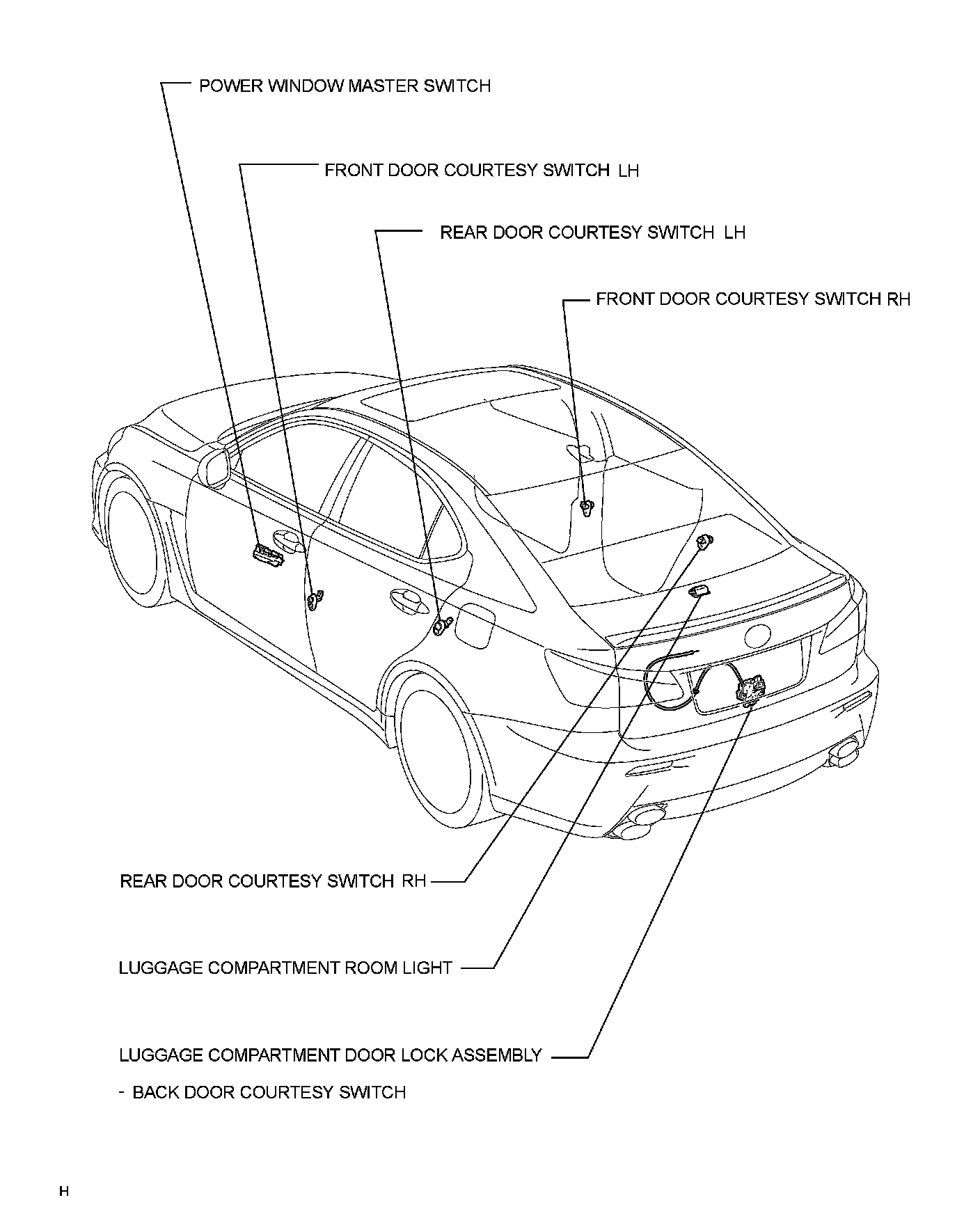

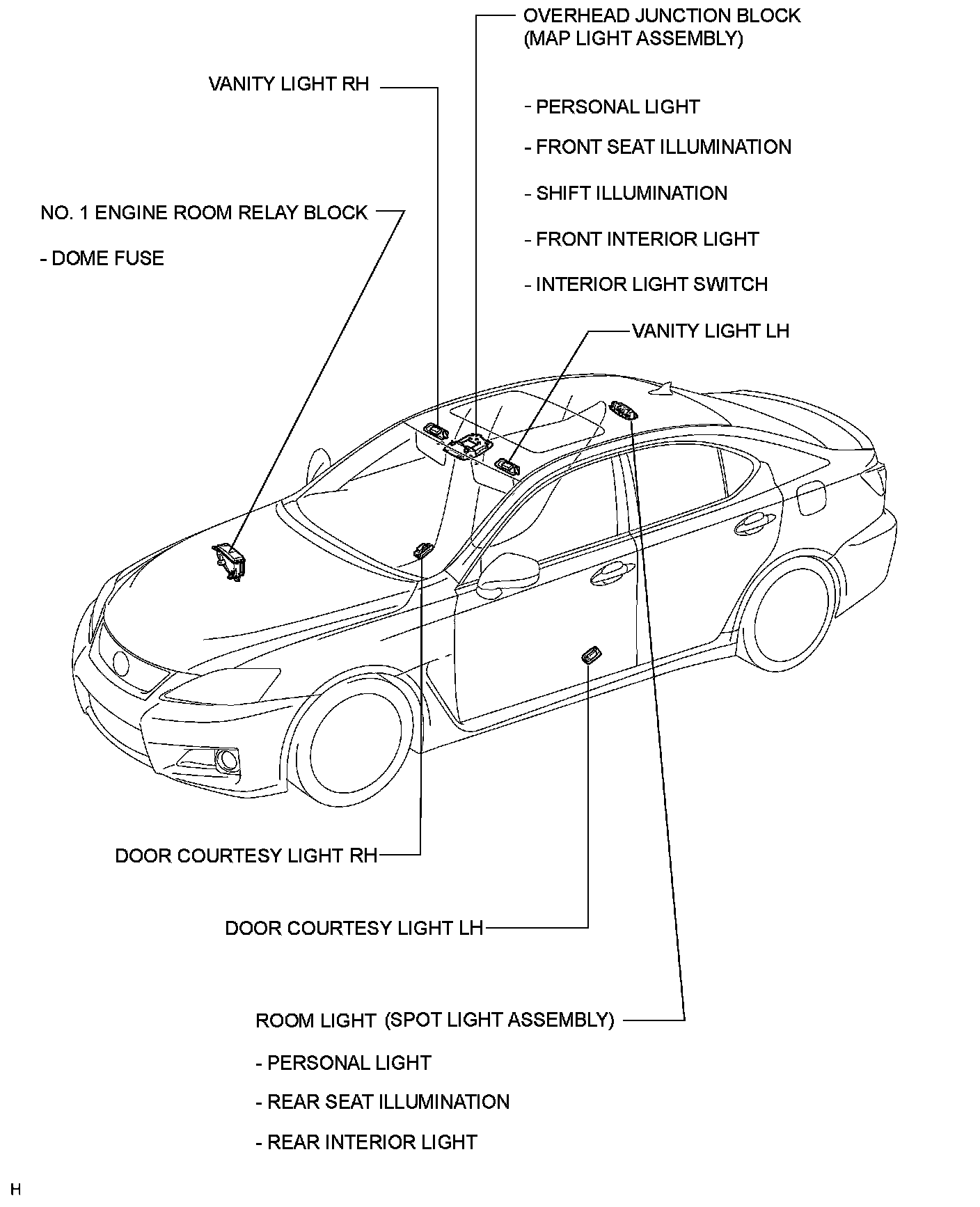

LIGHTING (INT): LIGHTING SYSTEM: PARTS LOCATION
PARTS LOCATION
