Torque Specifications

SPECIFICATIONS: AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

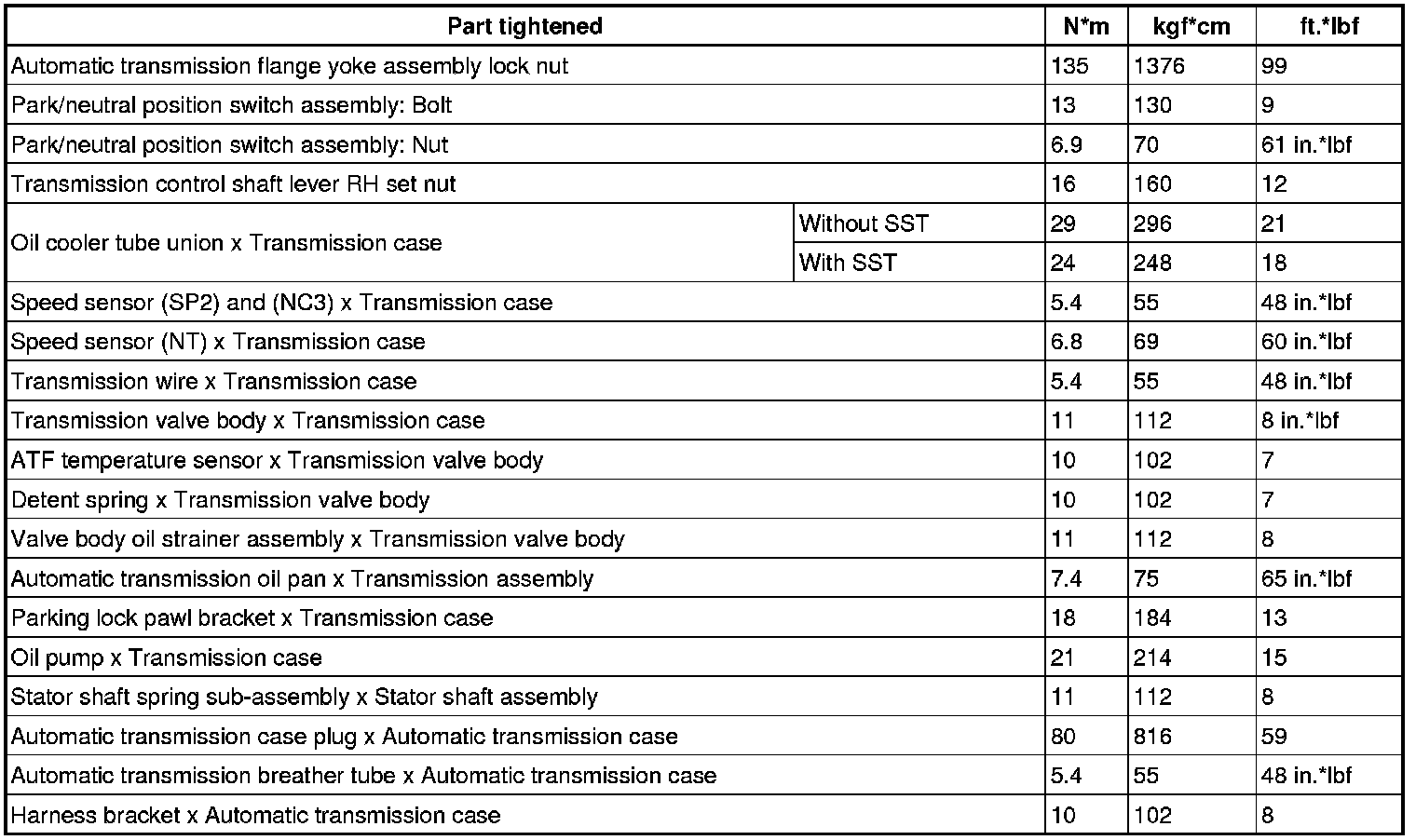

TORQUE SPECIFICATIONS

AUTOMATIC TRANSMISSION ASSEMBLY





AUTOMATIC TRANSMISSION UNIT





Drive plate 30 Nm (301 kgf-cm, 22 ft-lb)





Oil pan 7.4 Nm (75 kgf-cm, 65 in-lb)
