Pinout Values and Diagnostic Parameters

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

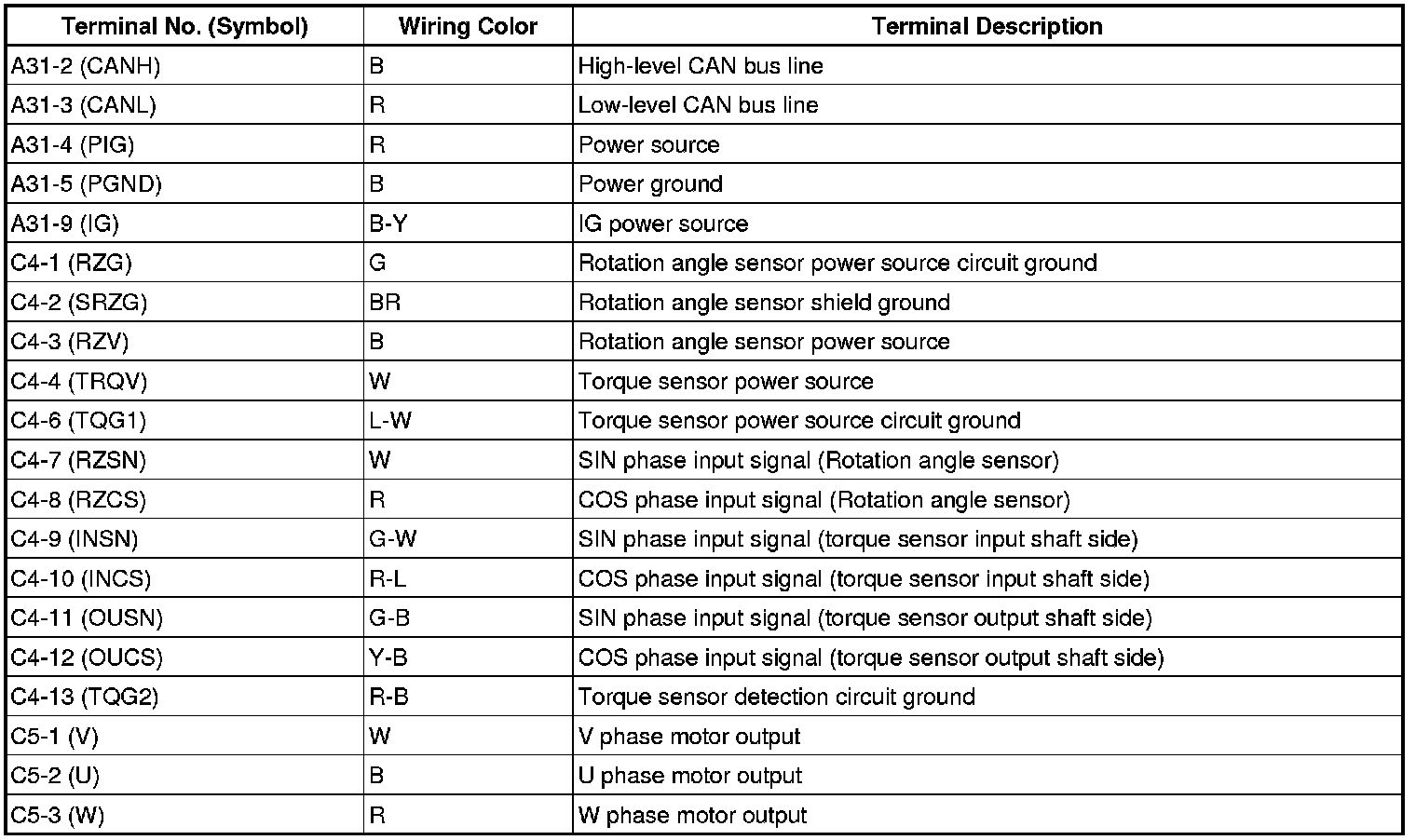

1. TERMINALS OF ECU




HINT: The power steering ECU assembly uses waterproof connectors. Therefore, voltage or waveforms cannot be checked with the connectors connected to the vehicle.

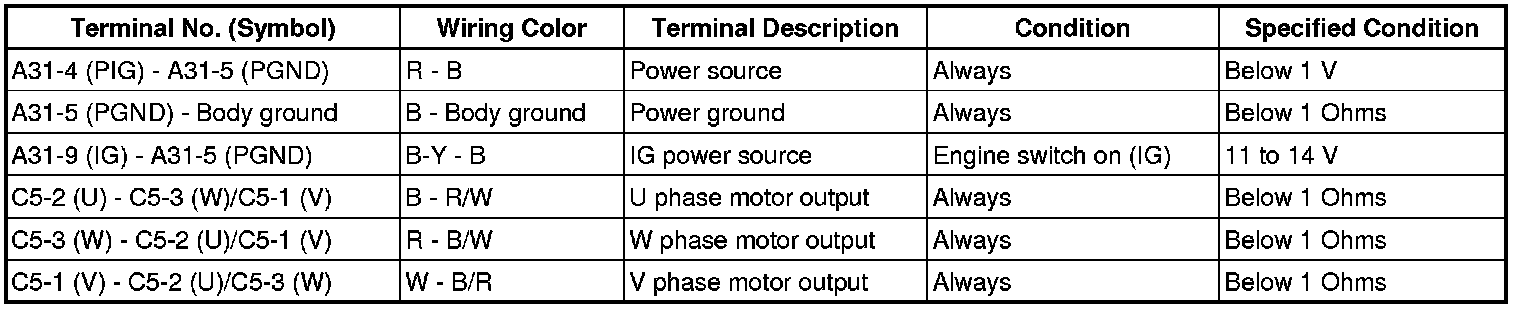

2. INSPECT WIRE HARNESS SIDE CONNECTOR
