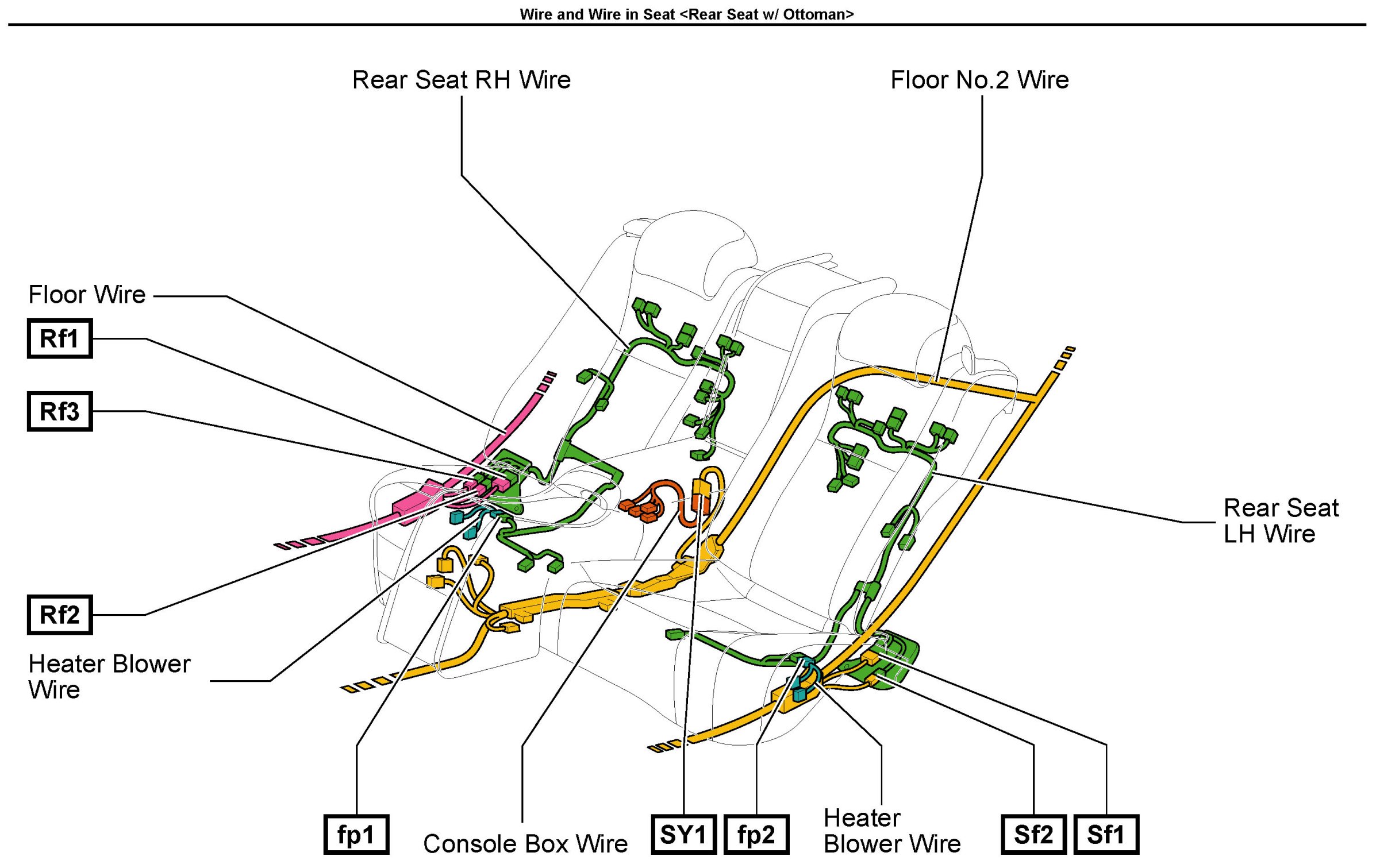

Wire and Wire In Seat [Rear Seat w/ Ottoman]
Wire and Wire In Seat [Rear Seat w/ Ottoman]
fp1-SY1:
fp1-SY1:
