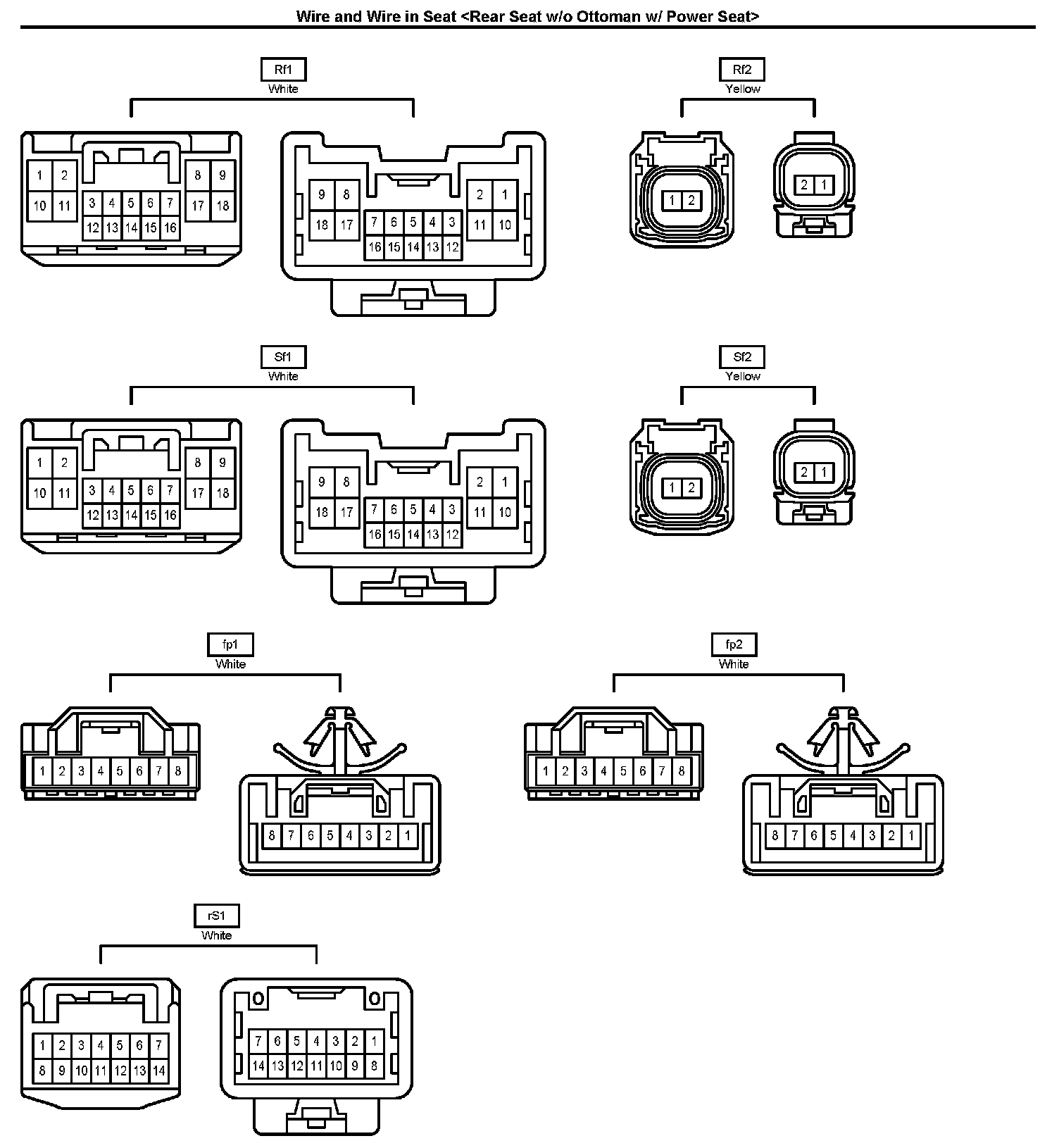

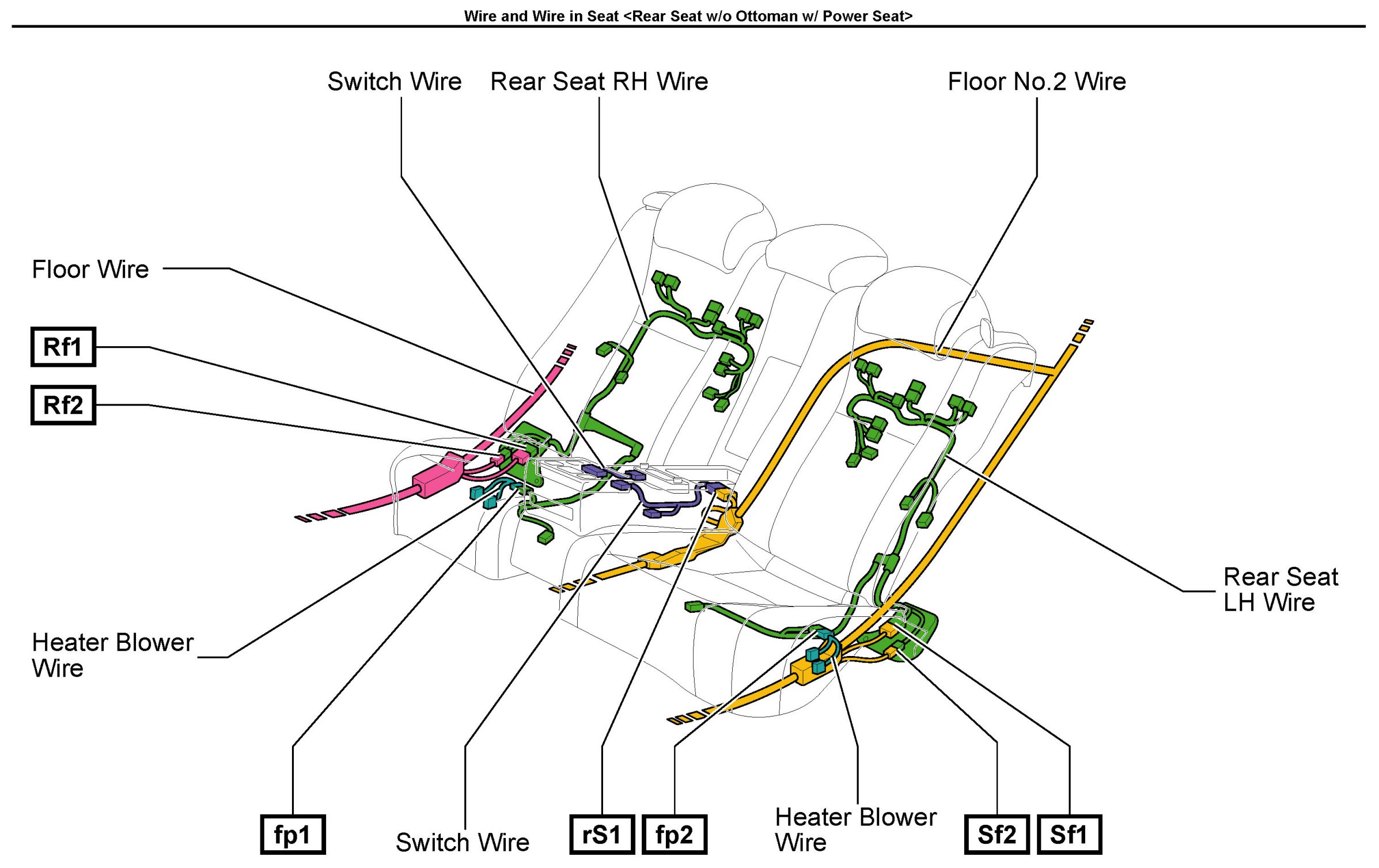

Wire and Wire In Seat [Rear Seat w/o Ottoman w/ Power Seat]
Wire and Wire In Seat [Rear Seat w/o Ottoman w/ Power Seat]
fp1-Sf2:
fp1-Sf2:
