Engine Hood / Door








SERVICE SPECIFICATIONS: ENGINE HOOD / DOOR: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

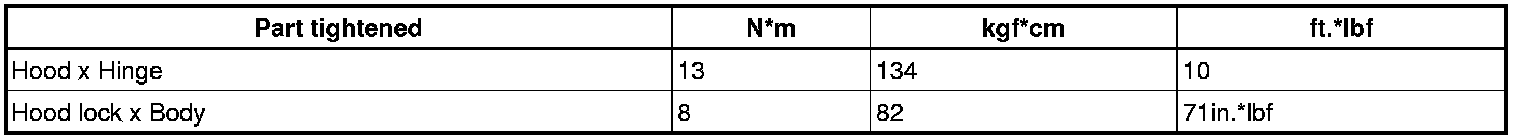

HOOD

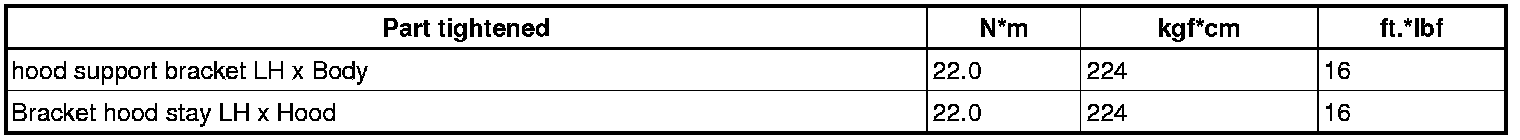

HOOD SUPPORT ROD





HOOD LOCK CONTROL CABLE ASSEMBLY

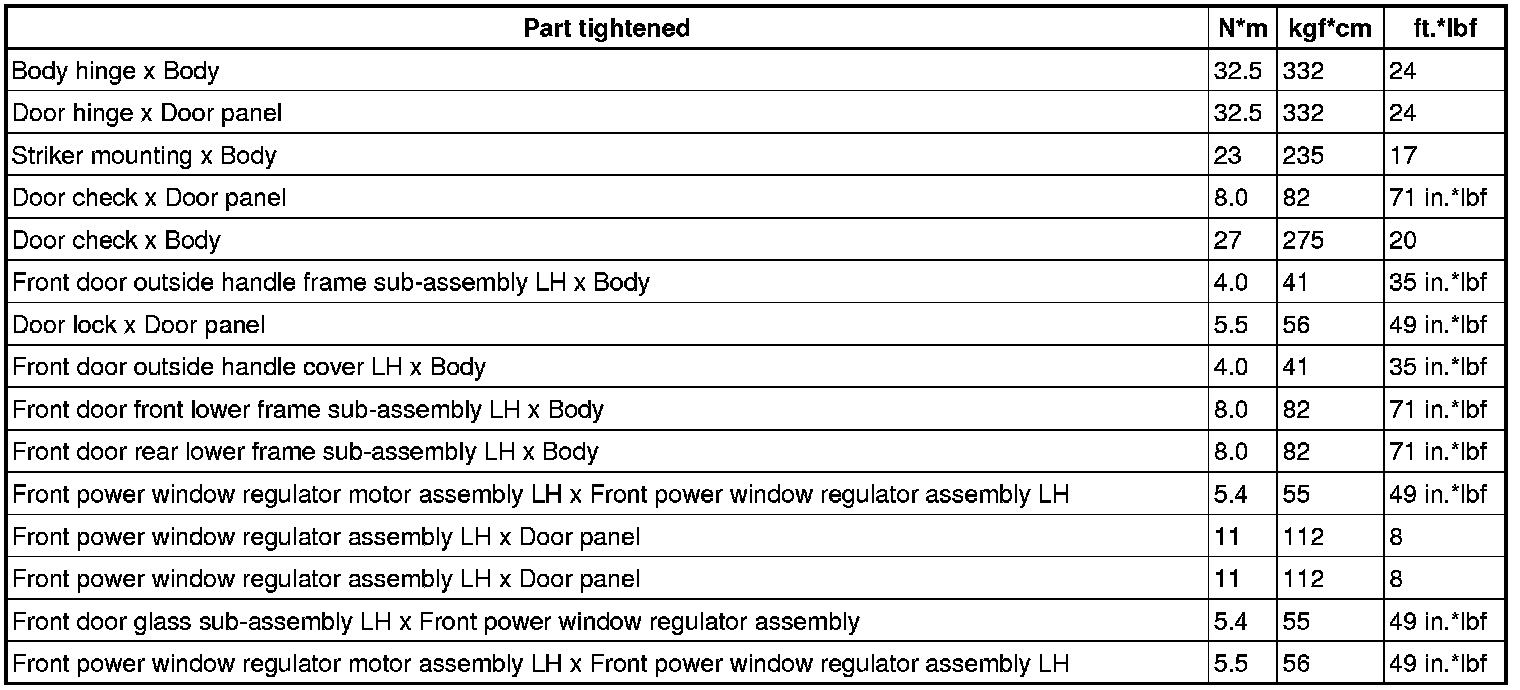

FRONT DOOR

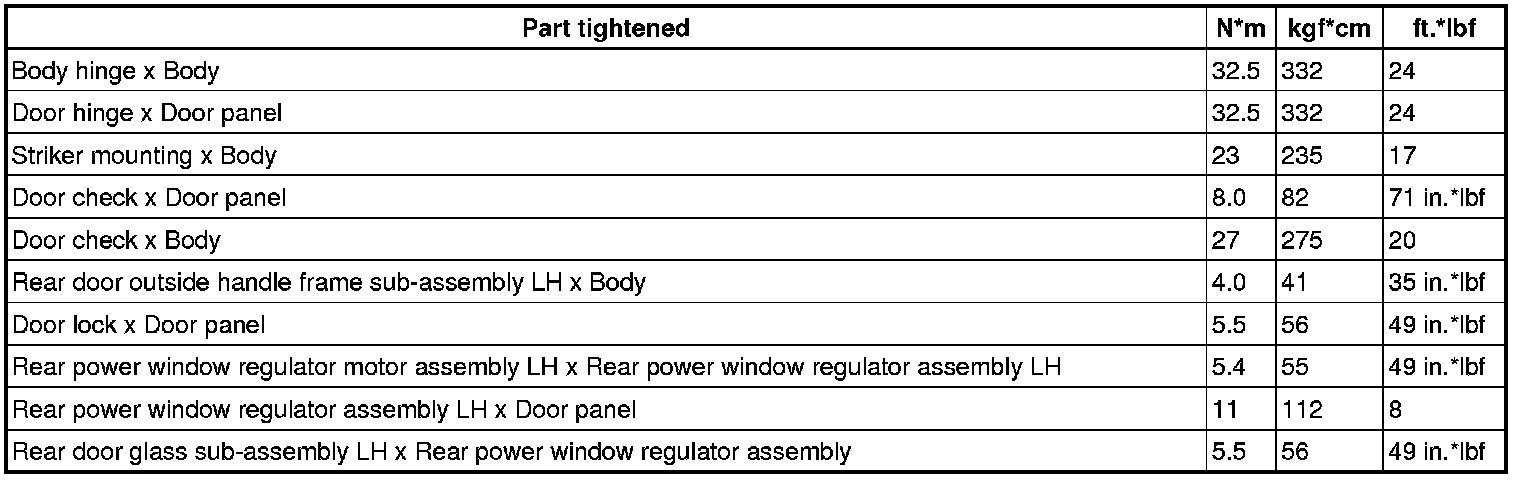

REAR DOOR





LUGGAGE COMPARTMENT DOOR





TRUNK LID ACTUATOR

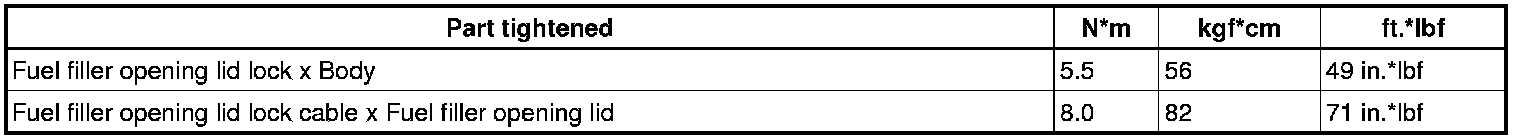

FUEL LID OPENER MOTOR ASSEMBLY





FUEL LID LOCK CONTROL CABLE ASSEMBLY
