Cylinder Head Assembly: Specifications

Cylinder head bolts





Standard outside diameter 10.85 to 11.00 mm (0.4272 to 0.4331 in.)
Minimum outside diameter 10.70 mm (0.4213 in.)

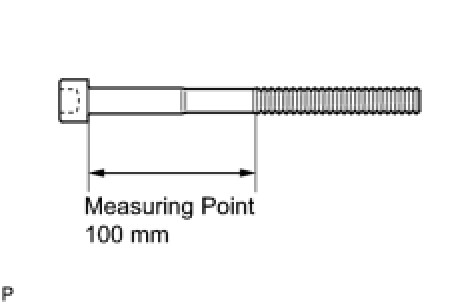

Measuring point 100 mm (3.94 in.)

If the diameter is less than the minimum, replace the cylinder head bolt

Tightening

Left:




Right:





Step 1 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2 90°
Step 3 additional 90°

Standard warpage





Maximum warpage 0.10 mm (0.0039 in.)

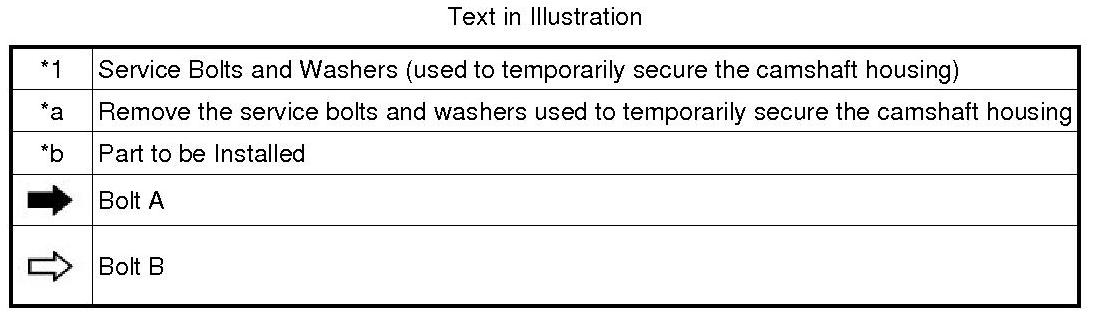

Camshaft bearing cap








Bolt A 28 Nm (286 kgf-cm, 21 ft-lbf)
Bolt B 16 Nm (163 kgf-cm, 12 ft-lbf)





Intake manifold Specifications

Exhaust manifold Specifications

Camshaft gear Specifications
