Steering Lock System

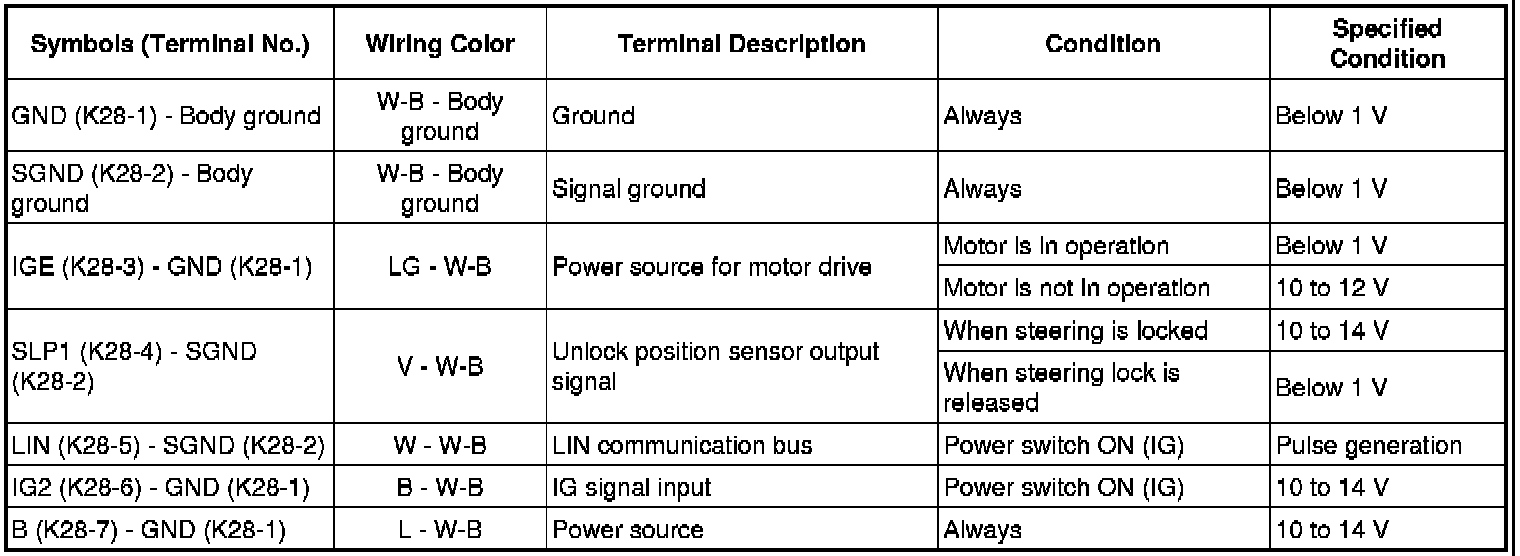

STEERING COLUMN: STEERING LOCK SYSTEM: TERMINALS OF ECU

1. CHECK STEERING LOCK ACTUATOR (STEERING LOCK ECU)
