Lane Departure System

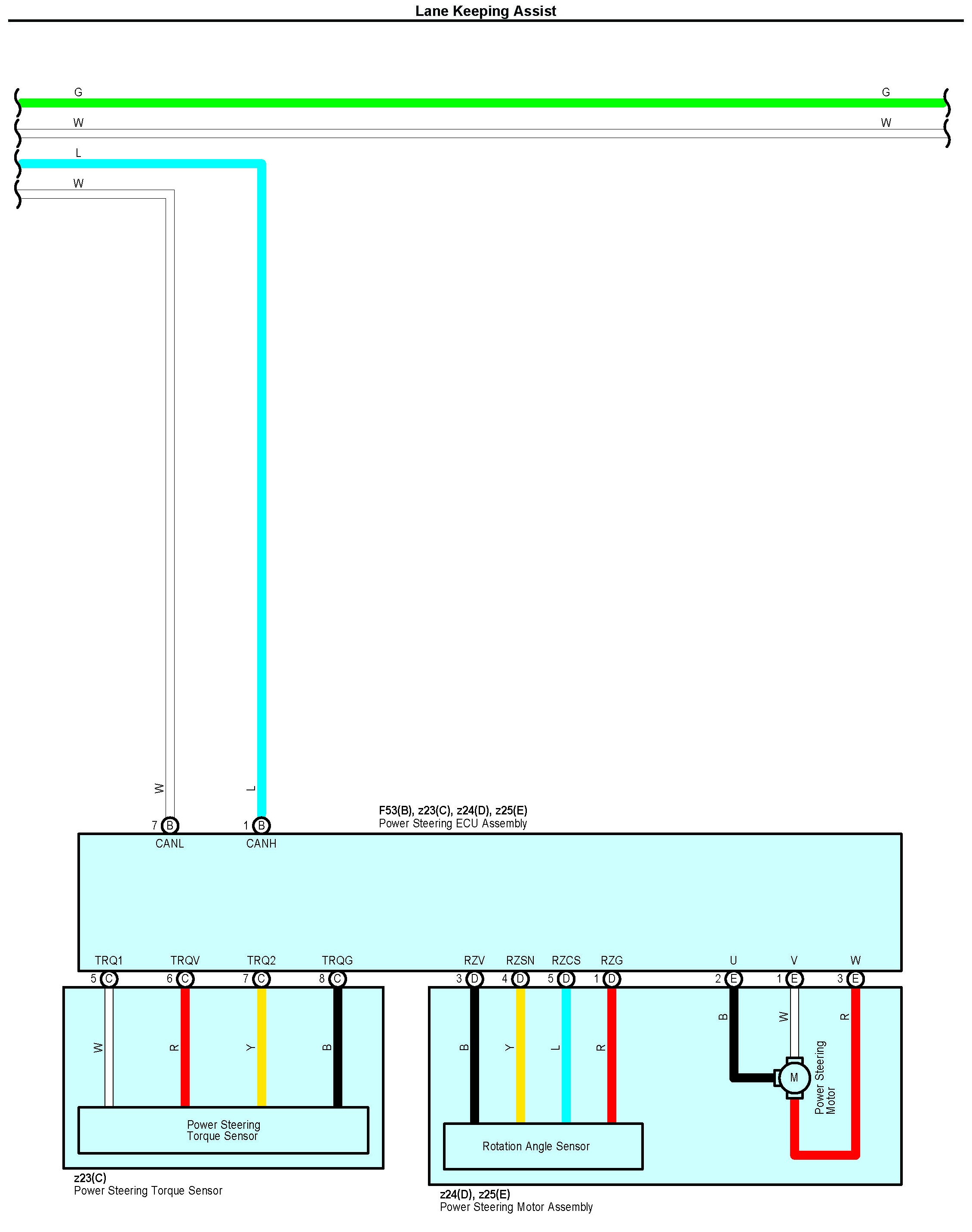

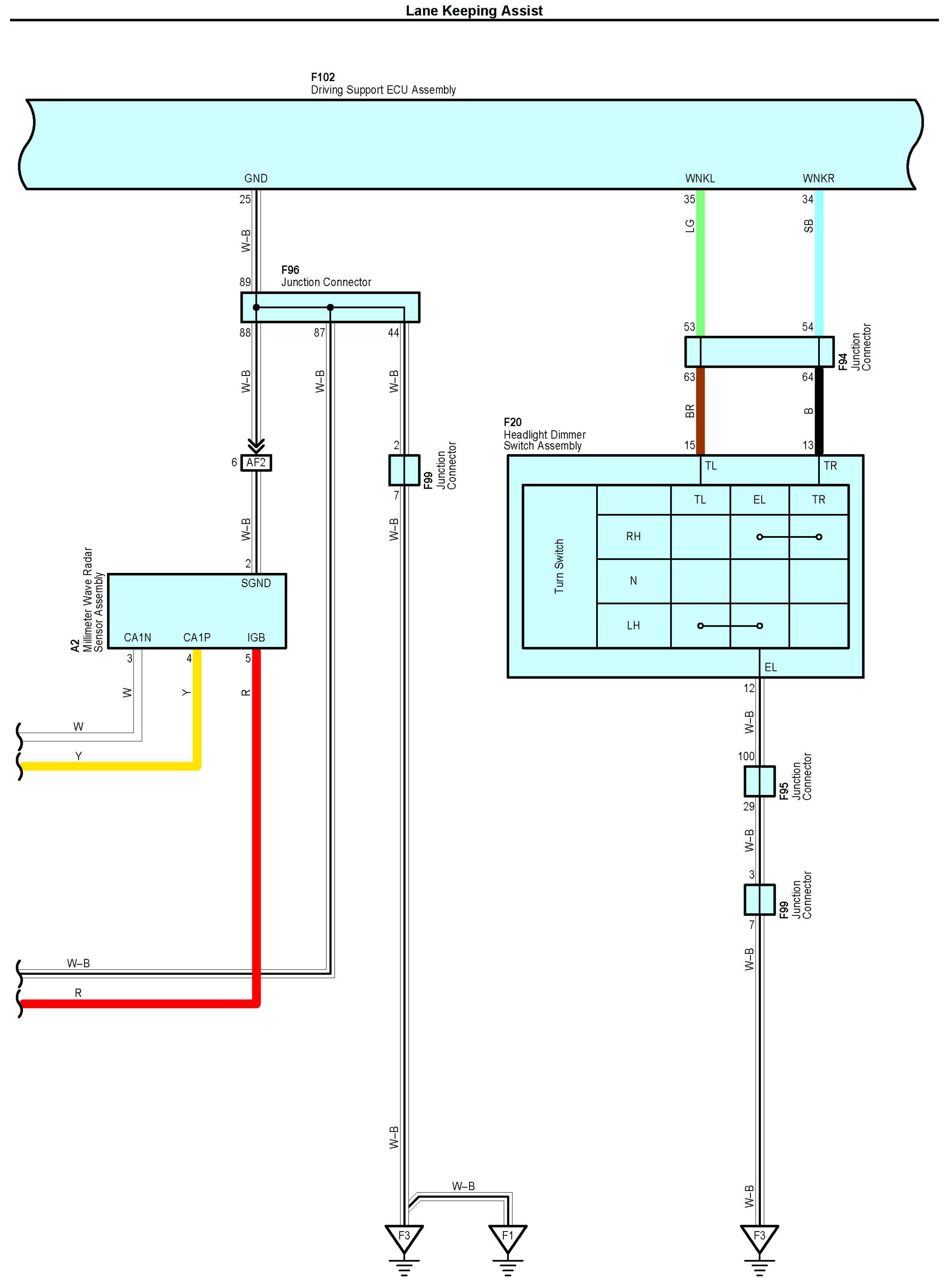

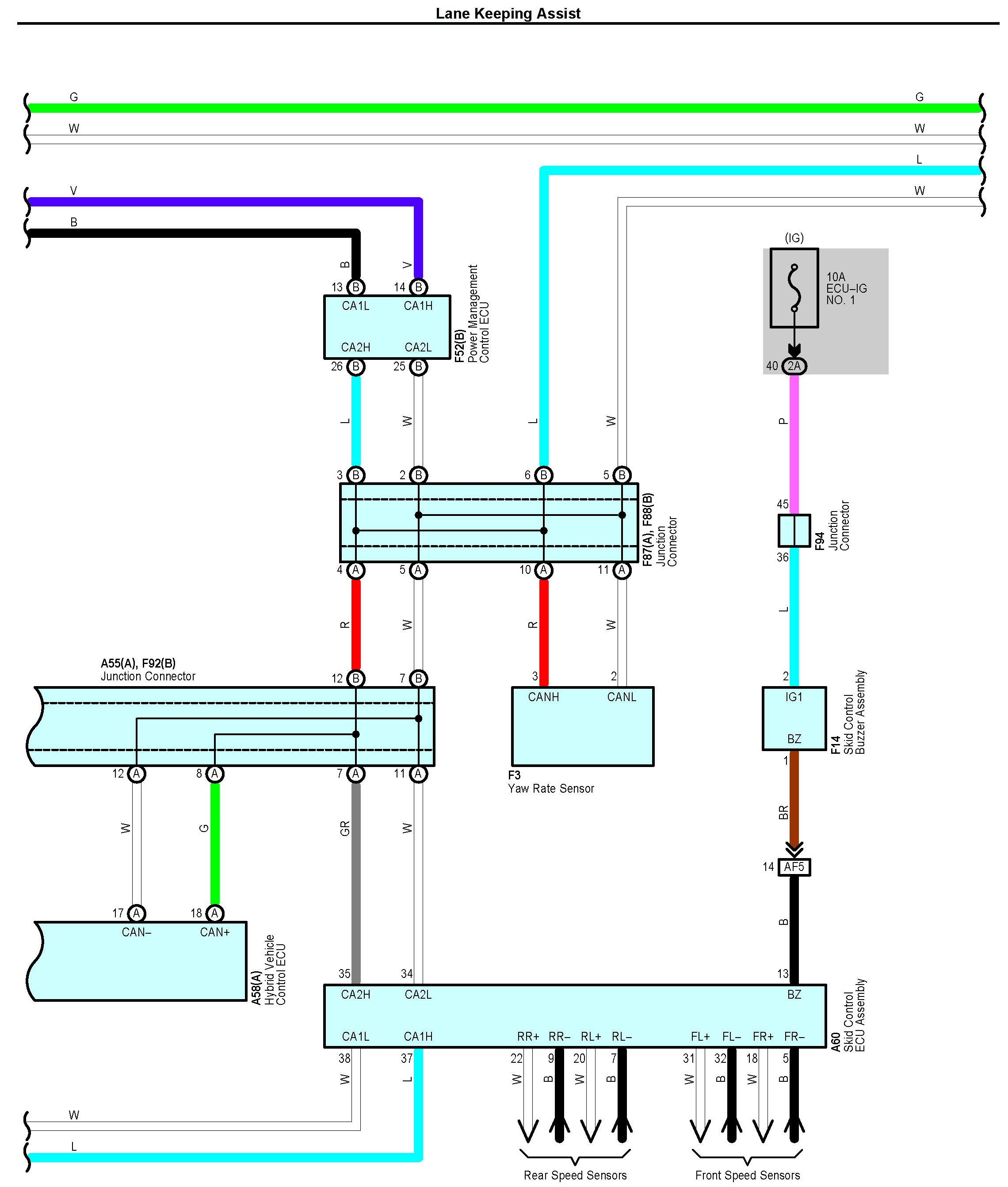

Lane Keeping Assist Part 1:

Lane Keeping Assist Part 2:

Lane Keeping Assist Part 3:

Lane Keeping Assist Part 4:

Lane Keeping Assist Part 5:

Lane Keeping Assist Part 6:

Lane Keeping Assist Part 7:

Lane Keeping Assist Part 8:

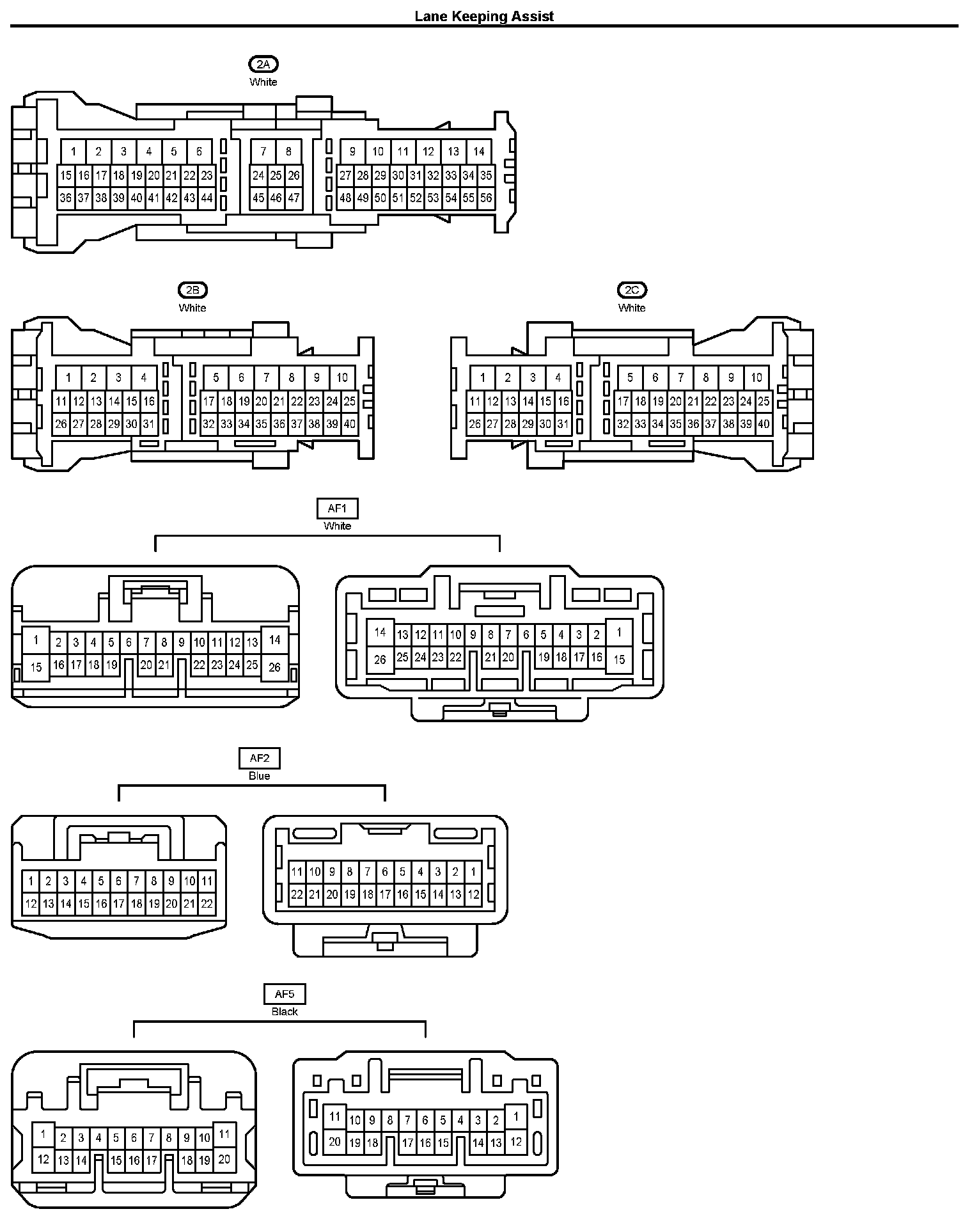

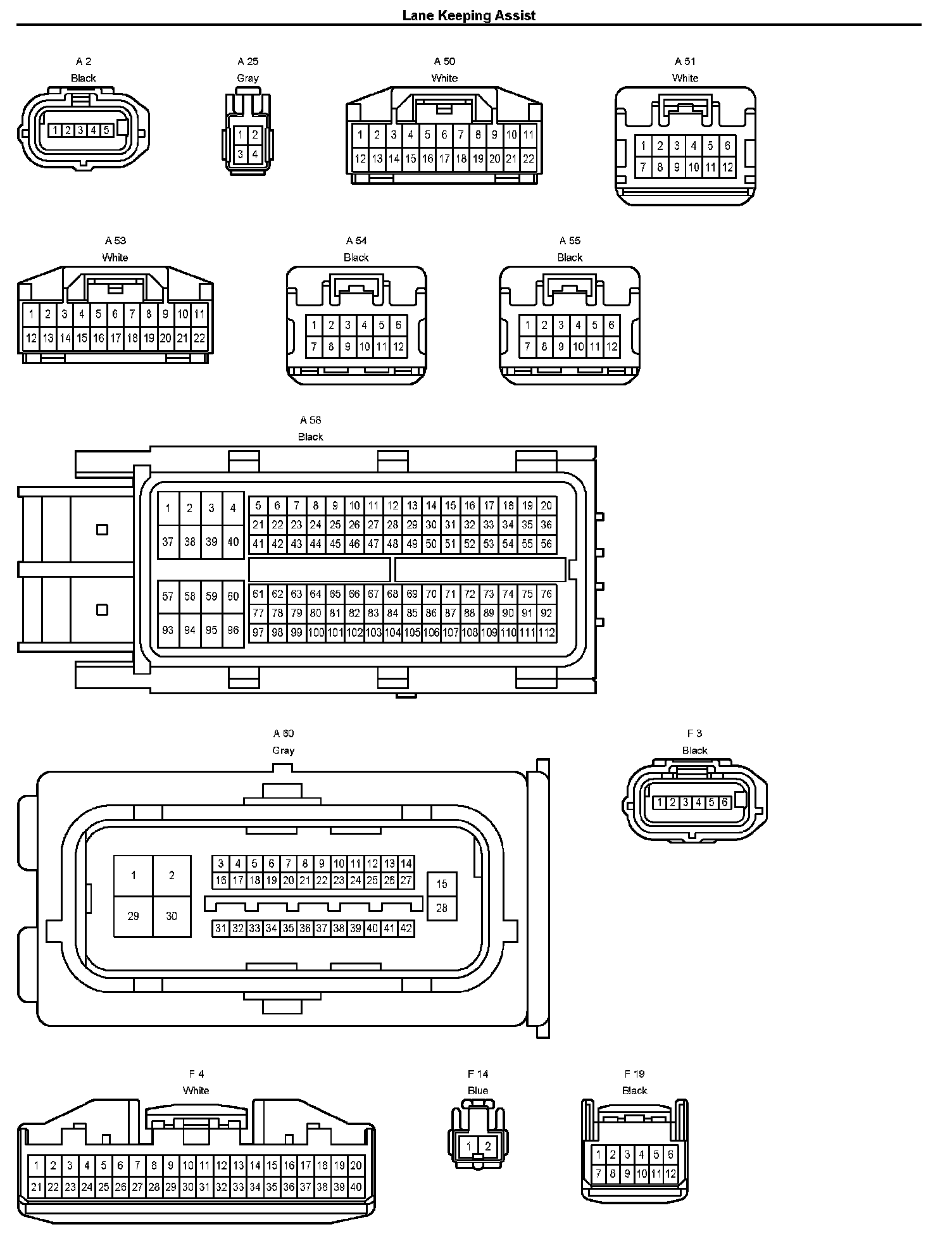

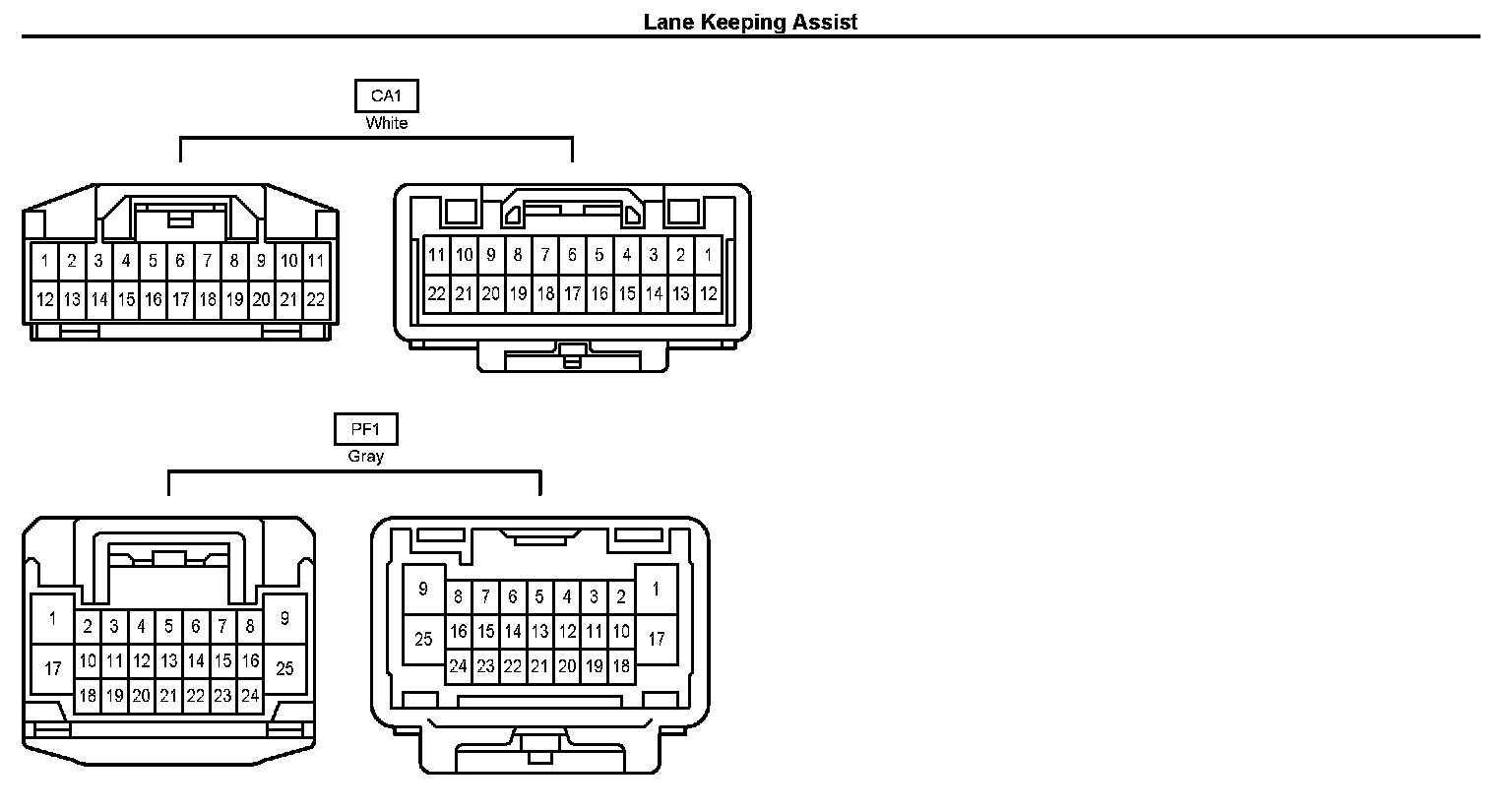

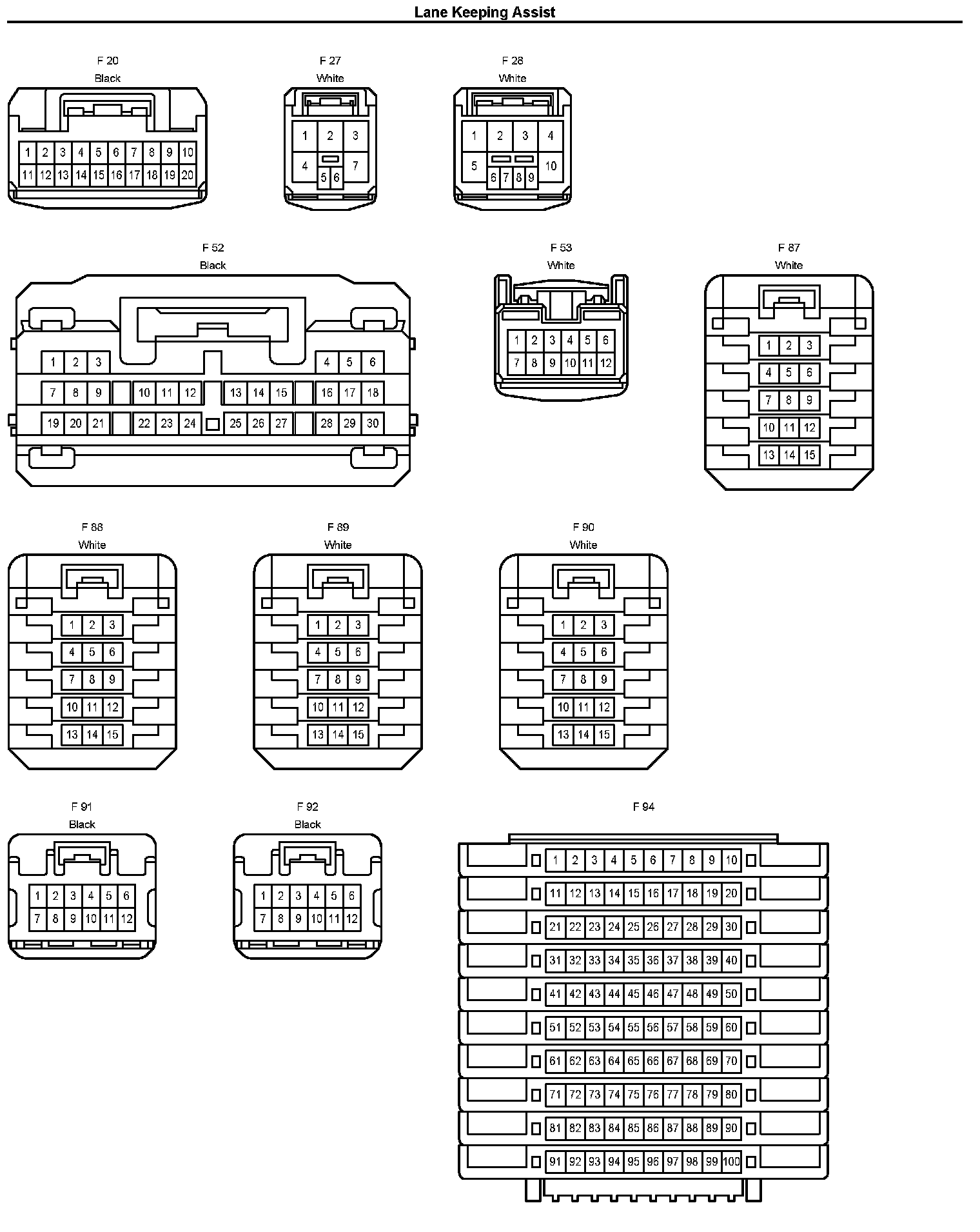

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
