Component Tests and General Diagnostics

METER / GAUGE / DISPLAY: HEAD-UP DISPLAY SWITCH: INSPECTION

1. INSPECT HEAD-UP DISPLAY SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

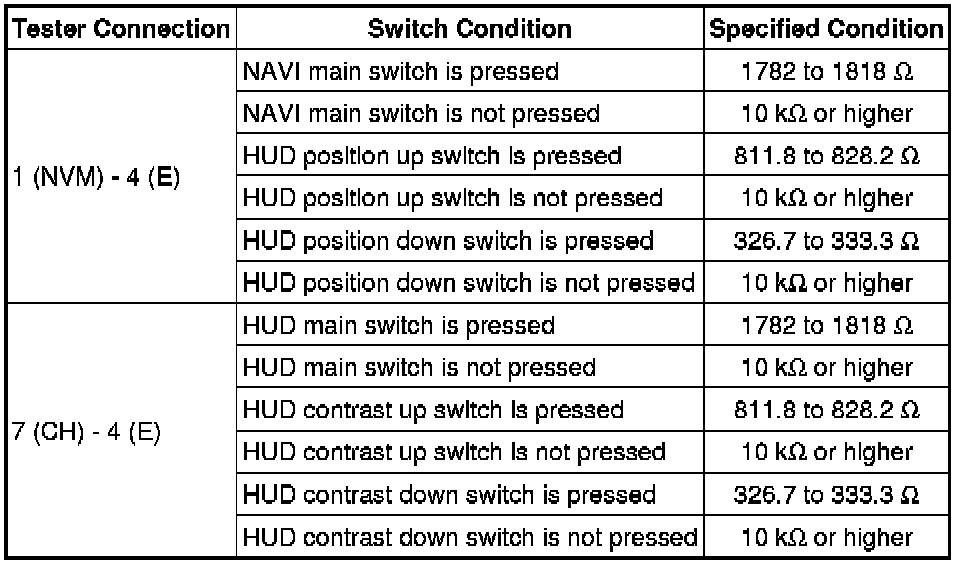

Standard Resistance:





(b) Apply battery voltage from the wire harness back side between the terminals of the switch, and check the lighting condition of the head-up display switch assembly.

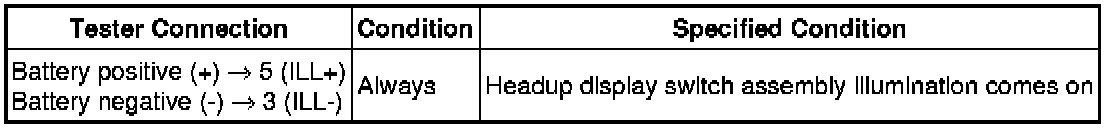

OK:





Text in Illustration





(c) If the value is not as specified, replace the head-up display switch assembly Removal.
