Alignment

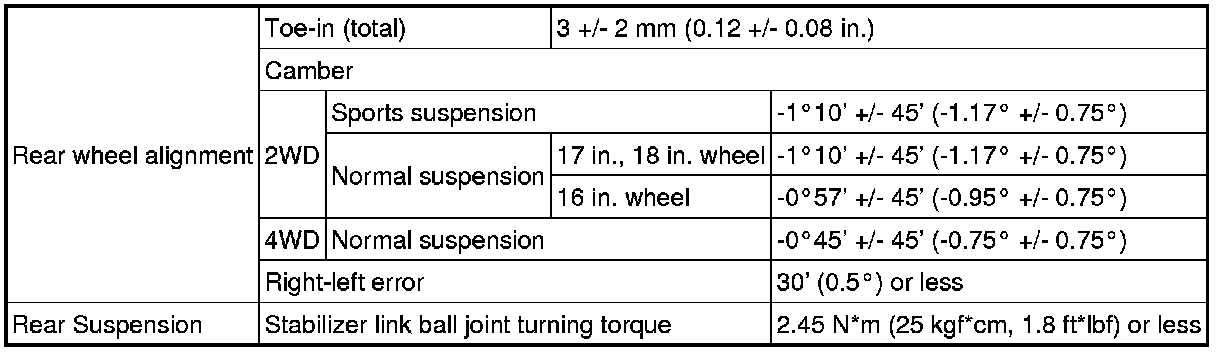

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA





* A: Ground clearance of front wheel center.

* B: Ground clearance of front center position of front suspension lower arm front bush installation bolt head.

* C: Ground clearance of rear center position of rear No.2 lower arm bush installation bolt screw thread.

* D: Ground clearance of rear wheel center.
