Crankshaft Main Bearing

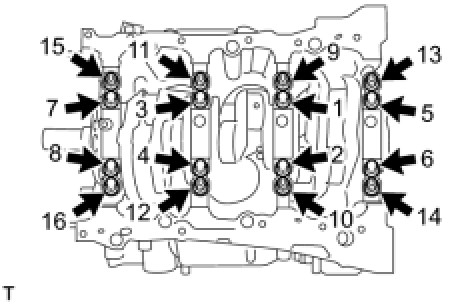

Main bearing cap





Step 1 61 Nm (622 kgf-cm, 45 ft-lbf)
Step 2 90°

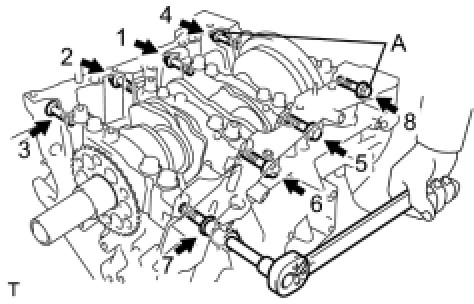

Torque 26 Nm (265 kgf-cm, 19 ft-lbf)

Crankshaft oil clearance

No. 1, No. 4 journal
Standard 0.026 to 0.047 mm (0.0010 to 0.0019 in.)
Minimum 0.050 mm (0.0020 in.)
No. 2, No. 3 journal
Standard 0.032 to 0.053 mm (0.0013 to 0.0021 in.)
Minimum 0.060 mm (0.0024 in.)
