Home
>>
Lexus
>>
2010
>>
IS 350C V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

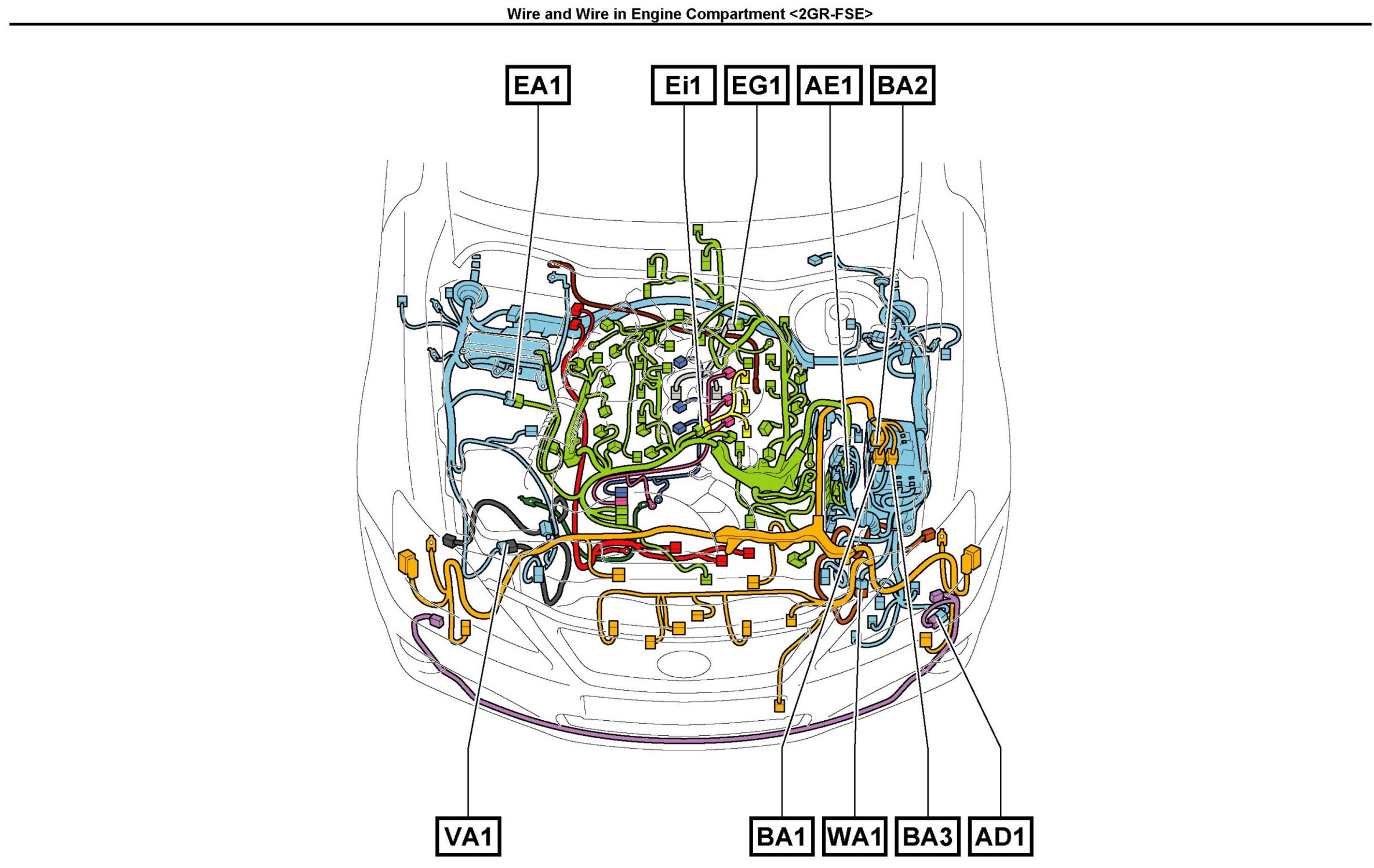

Wire and Wire In Engine Compartment
Wire and Wire In Engine Compartment

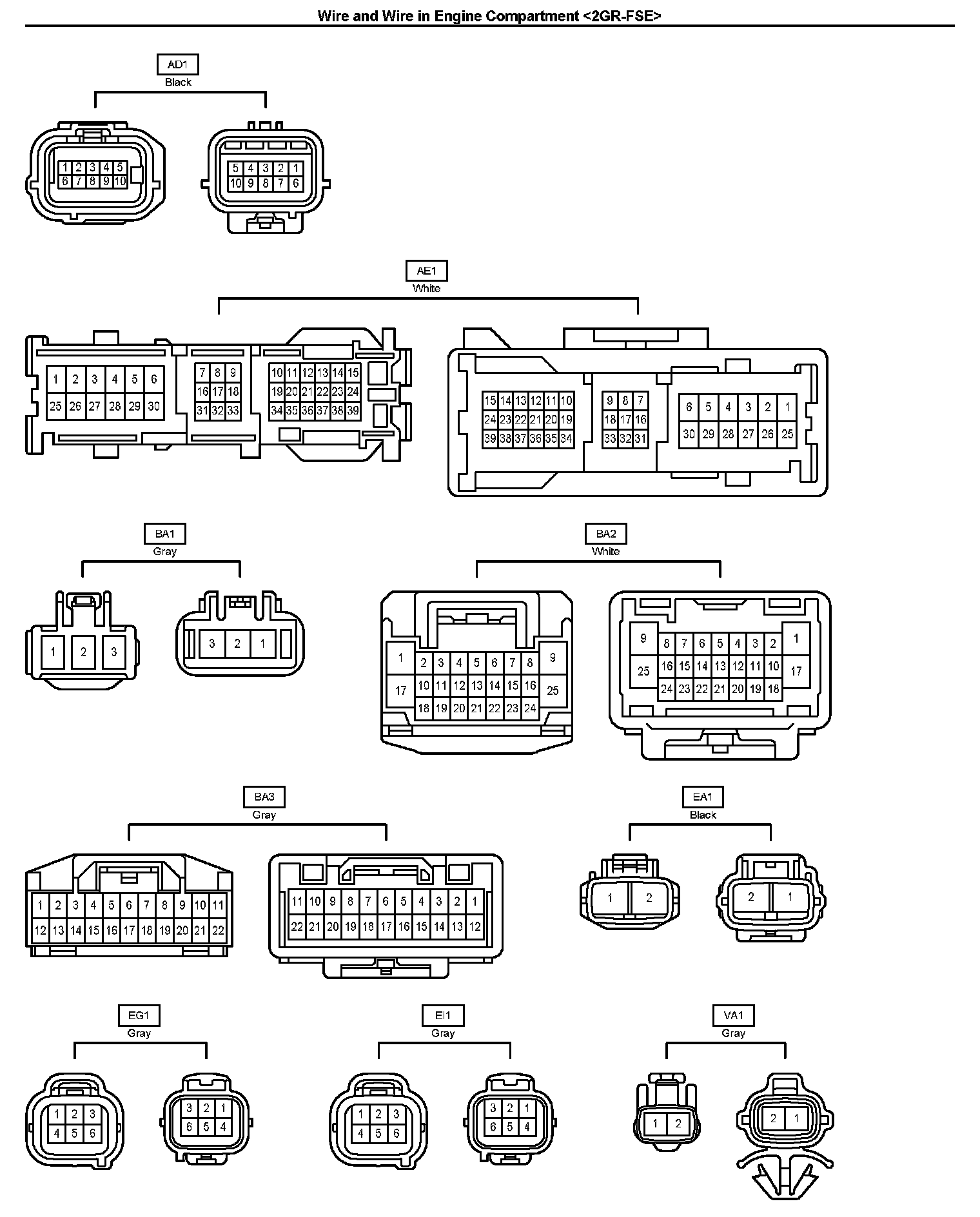

AD1-WA1:
AD1-VA1:

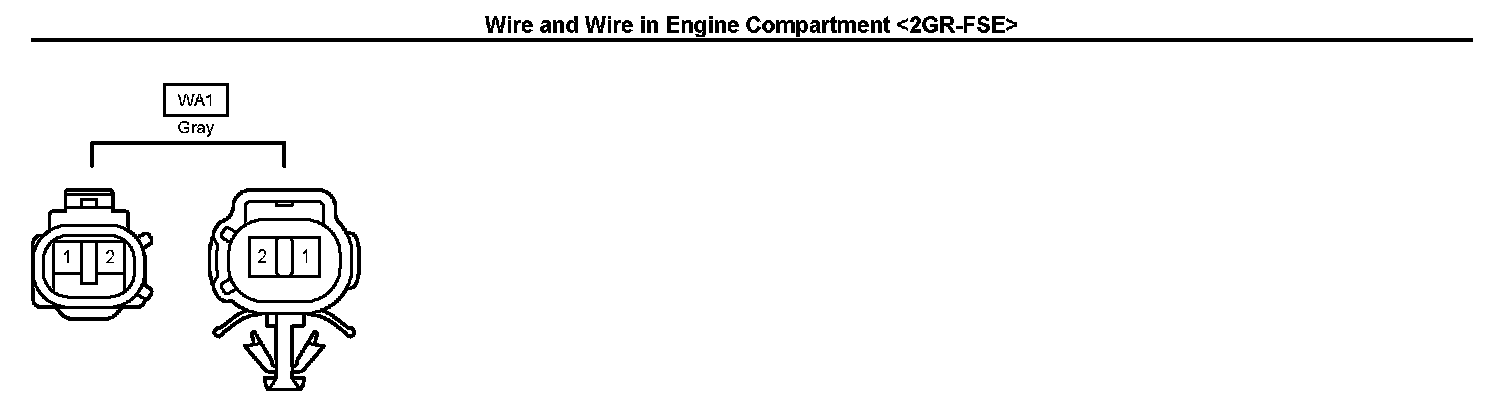

WA1:
