Position of Parts In Seat
Position of Parts In Seat

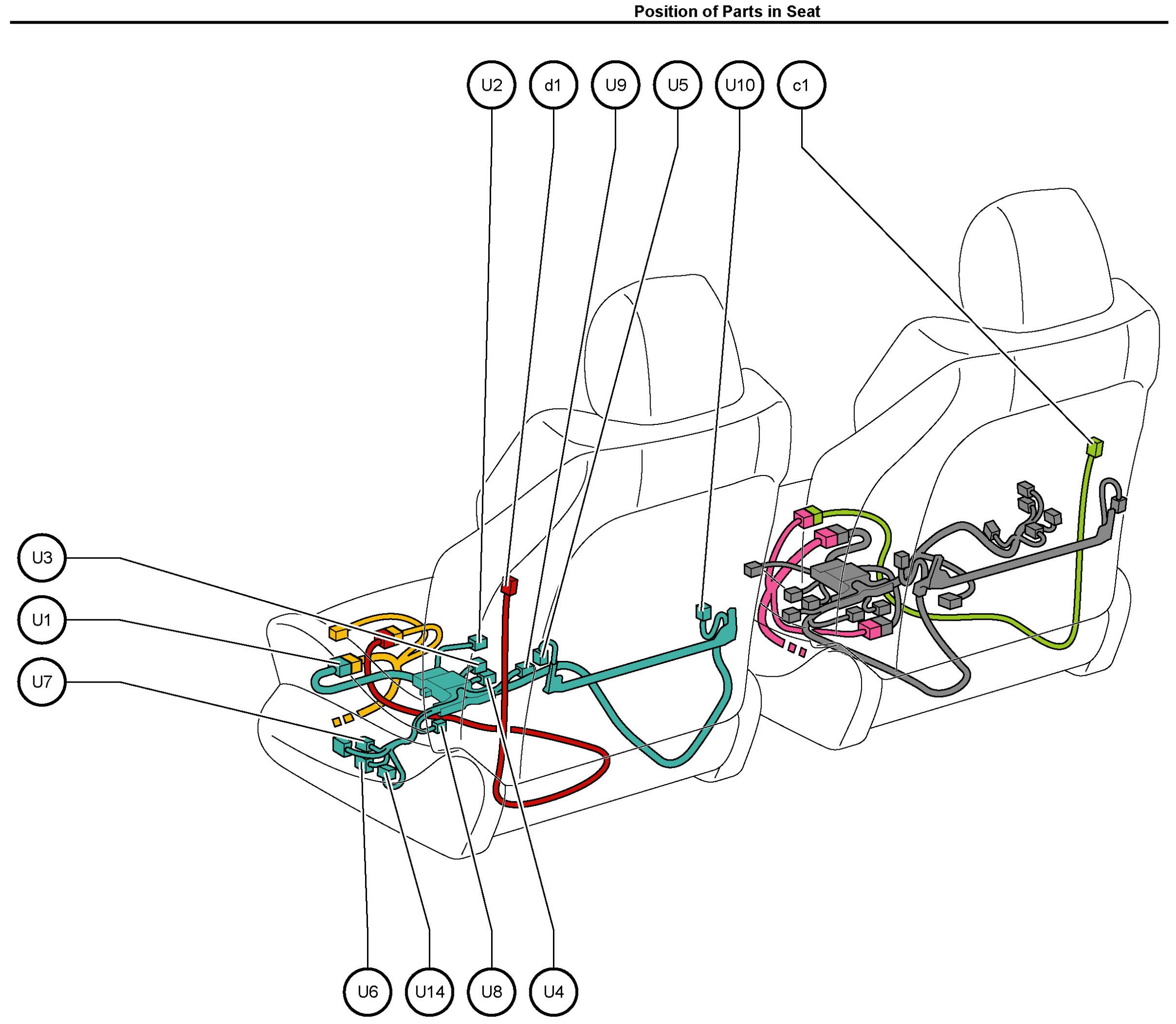

Position Of Parts In Seat:

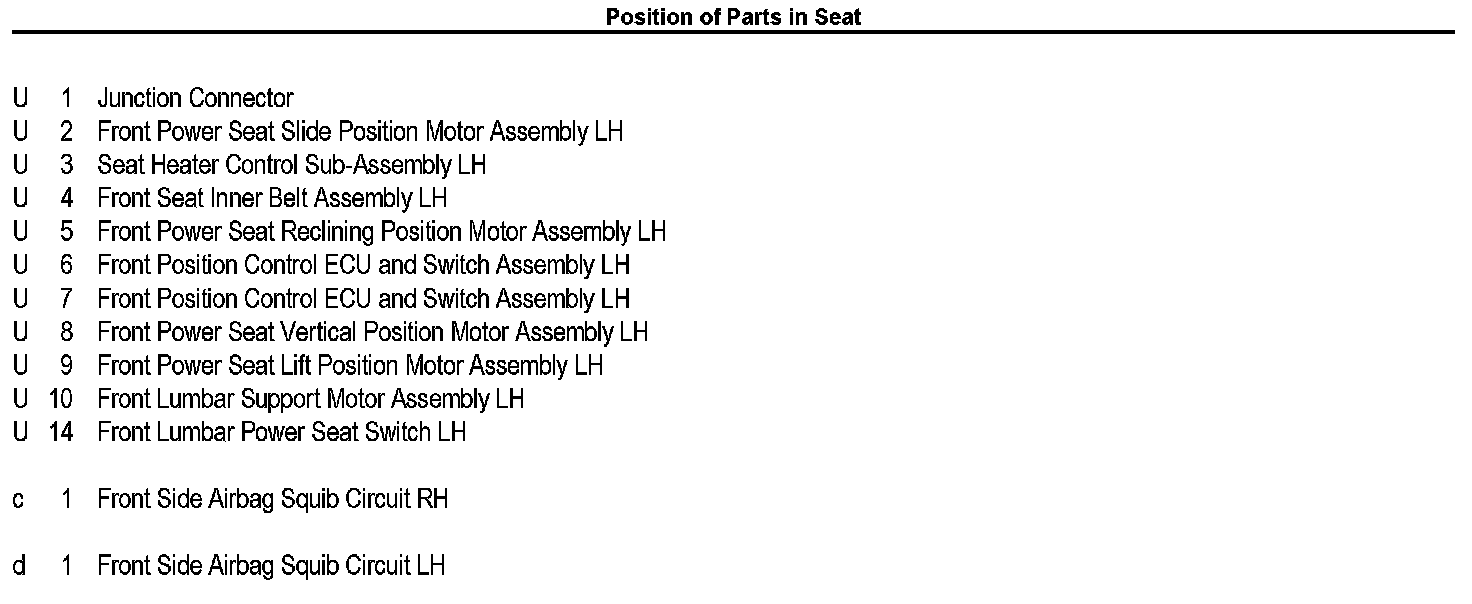

Legend:

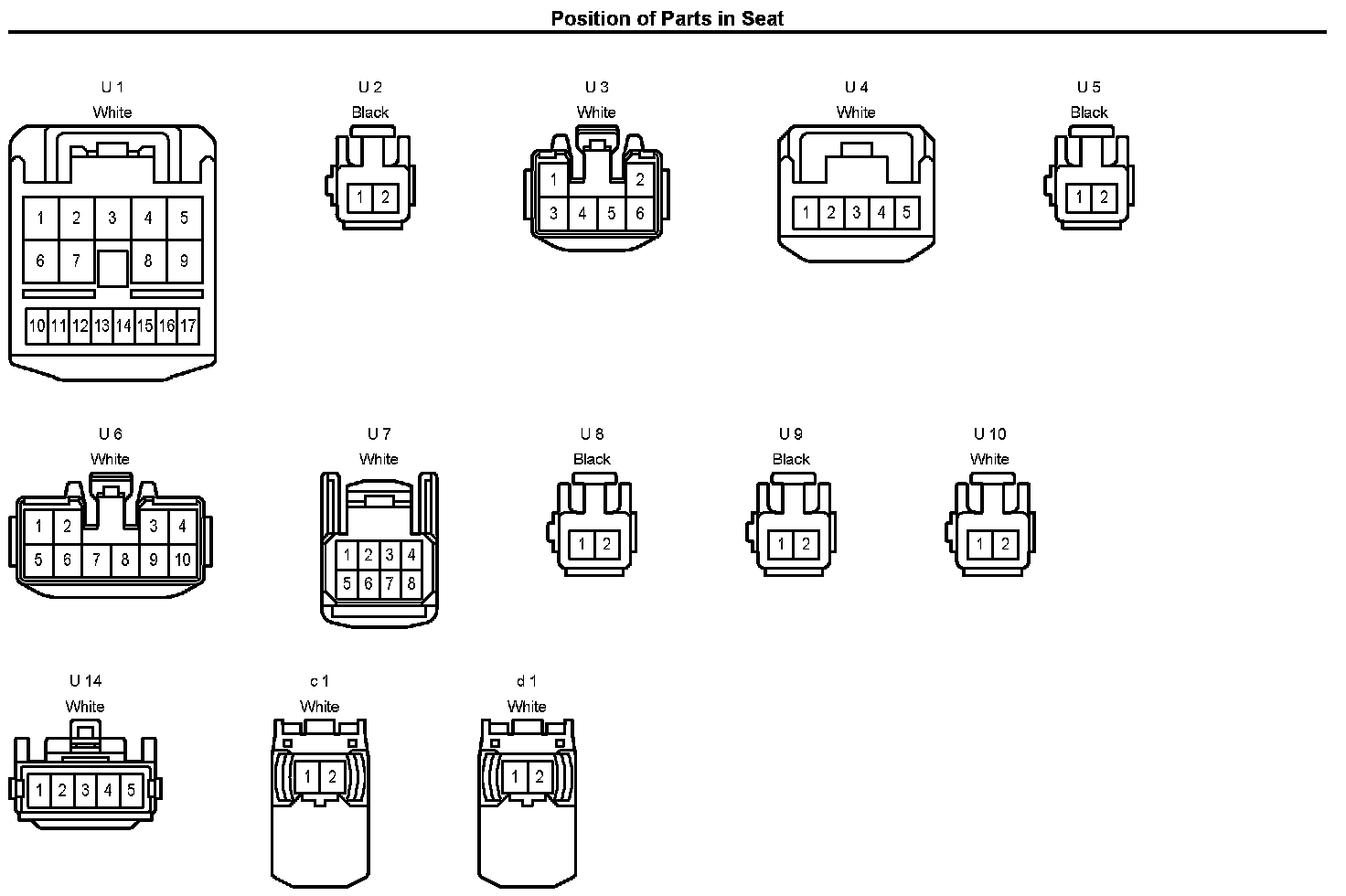

Connector Views:
Position Of Parts In Seat:
Legend:
Connector Views:
