Relay Box

Engine Room R/B, J/B No.1 Assembly - Right Engine Compartment:

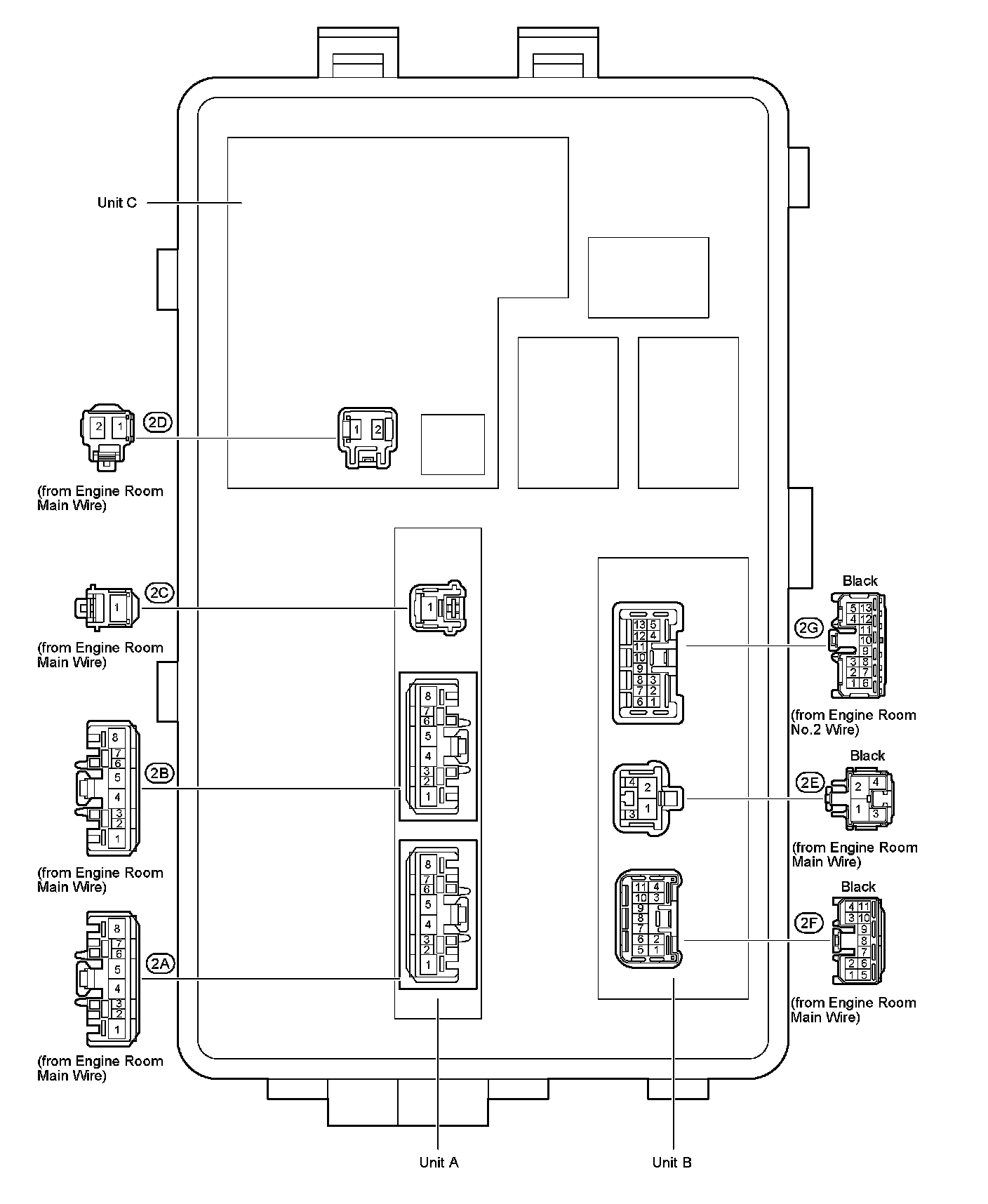

Engine Room R/B, J/B No.2 Assembly - Left Engine Compartment:

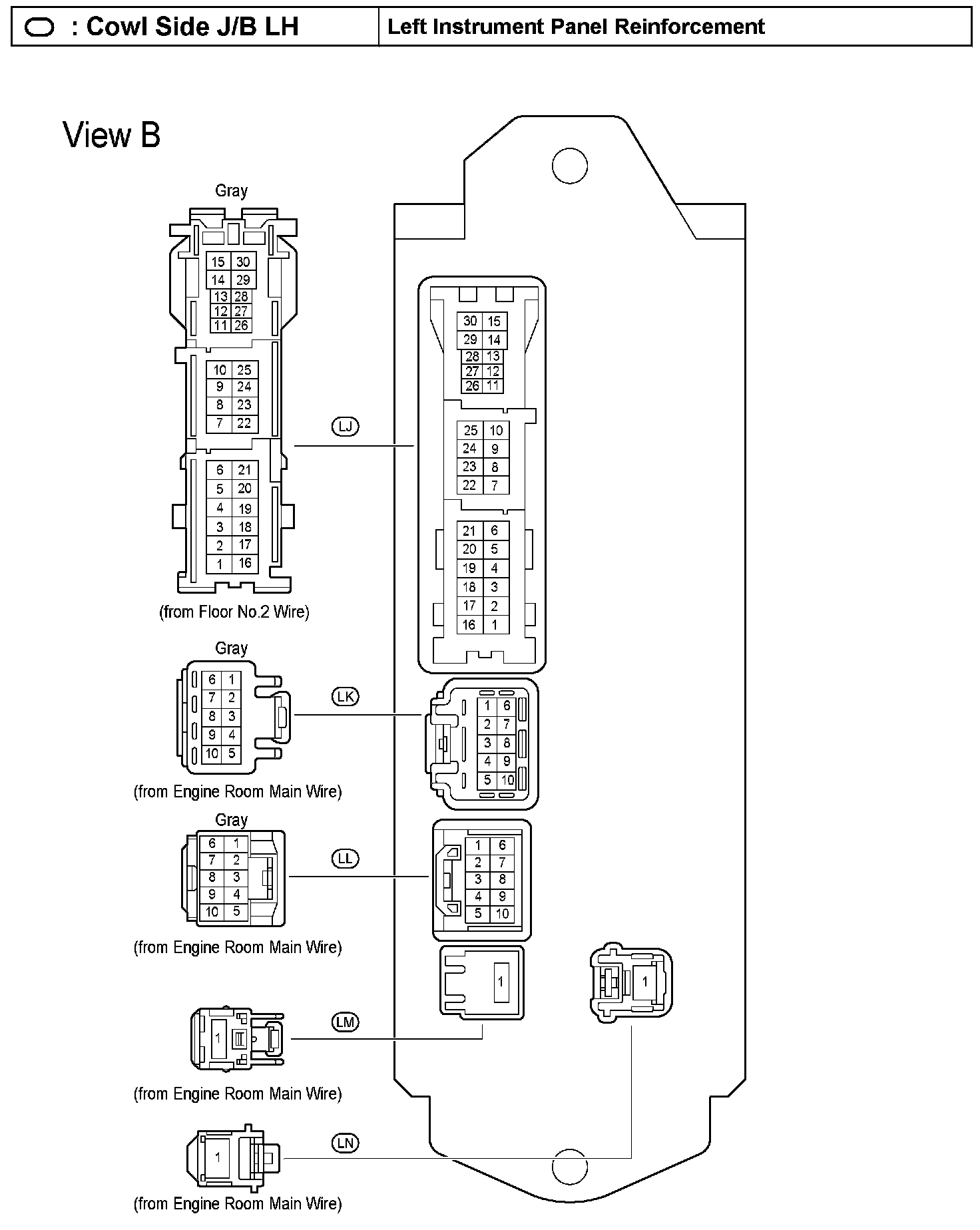

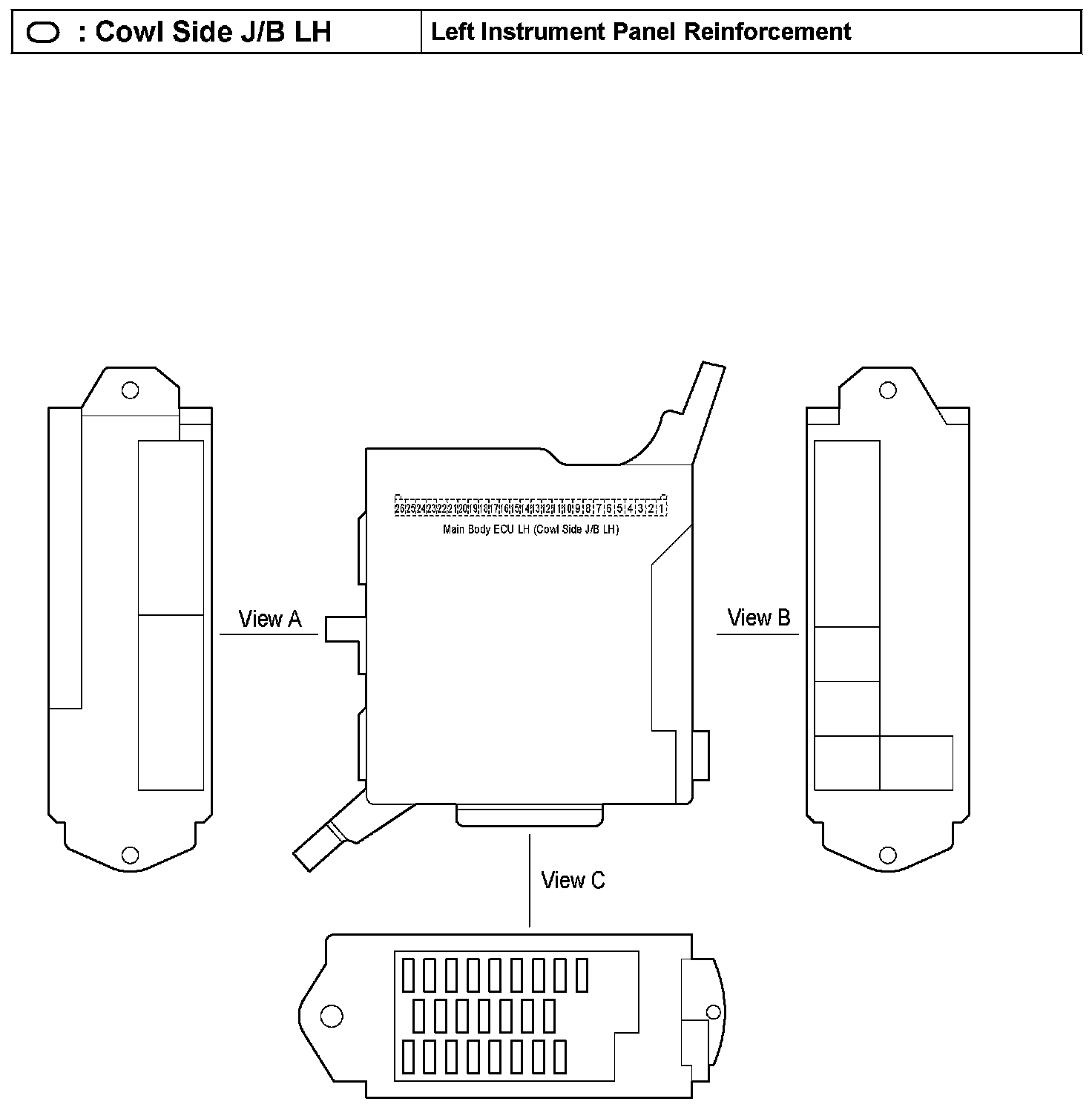

Cowl Side J/B LH - Left Instrument Panel Reinforcement:

Cowl Side J/B LH - Left Instrument Panel Reinforcement:

Cowl Side J/B LH - Left Instrument Panel Reinforcement:

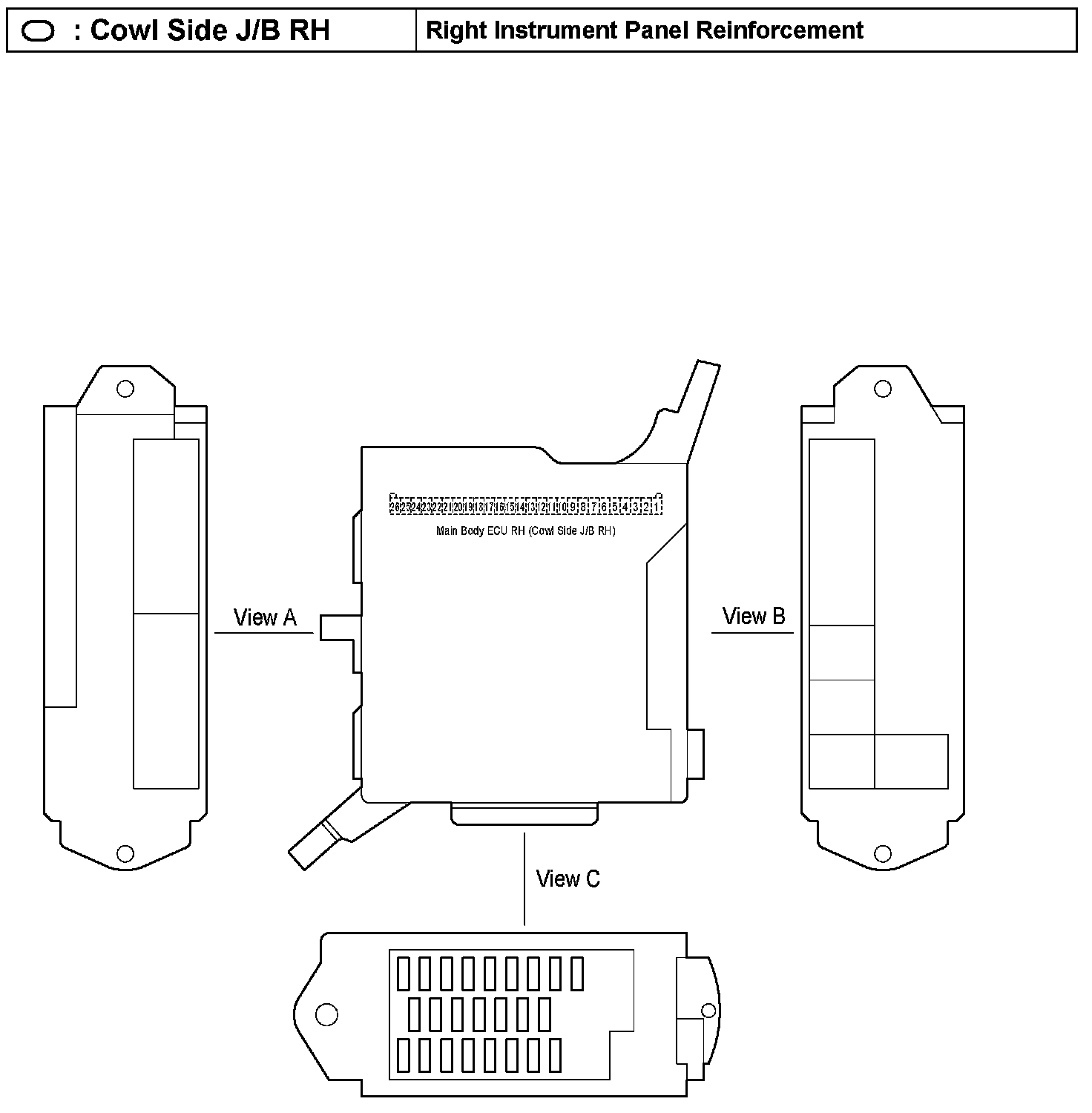

Cowl Side J/B RH - Right Instrument Panel Reinforcement:

Cowl Side J/B RH - Right Instrument Panel Reinforcement:

Cowl Side J/B RH - Right Instrument Panel Reinforcement:

Junction Connector (CAN LH) - Cowl Side Panel LH:

Junction Connector (CAN RH) - Cowl Side Panel RH:
